Automotive Integrated Starter Generator

Automotive Integrated Starter Generator

Such as ensuring tolerance to motor lock current and reduction of power consumption are important in designing ISG. Toshiba provides information on a wide range of semiconductor products suitable for motor drive units, communication units, power supply units, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 TVS TVS 12 V 12 V Inverter (Brushless) Inverter(Brushless) Angle Sensor Angle Sensor M M CAN CAN Reverse Battery Protection / Load Switch Reverse BatteryProtection / Load Switch Power Supply PowerSupply MCU MCU CAN Transceiver CANTransceiver Gate Driver / Motor Driver Gate Driver / Motor Driver Brushless DC motor drive circuit Power supply ON/OFF control and reverse connection protection circuit​ CAN transceiver protection circuit
Brushless DC motor drive circuit​

Example of a brushless DC motor drive circuit for an ISG

CAN transceiver protection circuit

Example of CAN transceiver protection circuit

Power supply ON/OFF control and reverse connection protection circuit​

Example of ON/OFF control and reverse connection protecting circuit for 12 V power lines

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 TVS TVS MCU MCU Power Supply PowerSupply 12 V 12 V CAN Transceiver CANTransceiver Gate Driver / Motor Driver Gate Driver / Motor Driver Inverter (Brushless) Inverter(Brushless) Angle Sensor Angle Sensor M M 48 V 48 V CAN CAN Brushless DC motor drive circuit CAN transceiver protection circuit
Brushless DC motor drive circuit​

Example of a brushless DC motor drive circuit for an ISG

CAN transceiver protection circuit

Example of CAN transceiver protection circuit

Sub block diagram

Brushless DC motor drive circuit​
Brushless DC motor drive circuit​

Example of a brushless DC motor drive circuit for an ISG

Example of a brushless DC motor drive circuit for an ISG
U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET
Part Number
XPQ1R004PB
XPQR3004PB
XPQR8308QB
XPQ1R00AQB
Toshiba Package Name L-TOGL L-TOGL L-TOGL L-TOGL
VDSS (Max) [V] 40 40 80 100
ID (Max) [A] 200 400 350 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0010 0.00030 0.00083 0.00103
Polarity N-ch N-ch N-ch N-ch
Search for lineup
Gate driver (for motor)
Part Number
TPD7212F
TPD7212FN
Toshiba Package name WQFN32 SSOP30
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +1.5/-1 +1.5/-1
Search for lineup
Brushless DC motor pre driver
Part Number
TB9081FG
TB9083FTG
Toshiba Package Name QFP64-P-1010-0.50C P-VQFN48-0707-0.50-005
Product Category Pre-driver for automobile Pre-driver for automobile
Search for lineup
CAN transceiver protection circuit
CAN transceiver protection circuit

Example of CAN transceiver protection circuit

Example of CAN transceiver protection circuit
TVS diode (for CAN communication)
Part Number
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
Search for lineup
General purpose small signal MOSFET
Part Number
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
Search for lineup
General purpose small signal bipolar transistor
Part Number
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
Search for lineup
Small signal bias resistor built-in transistor (BRT)
Part Number
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
Search for lineup
Power supply ON/OFF control and reverse connection protection circuit​
Power supply ON/OFF control and reverse connection protection circuit​

Example of ON/OFF control and reverse connection protecting circuit for 12 V power lines

Example of ON/OFF control and reverse connection protecting circuit for 12 V power lines
U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET
Part Number
XPQ1R004PB
XPQR3004PB
XPQR8308QB
XPQ1R00AQB
Toshiba Package Name L-TOGL L-TOGL L-TOGL L-TOGL
VDSS (Max) [V] 40 40 80 100
ID (Max) [A] 200 400 350 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0010 0.00030 0.00083 0.00103
Polarity N-ch N-ch N-ch N-ch
Search for lineup
Gate driver (for switch)
Part Number
TPD7104AF
TPD7106F
TPD7107F
Toshiba Package name PS-8 SSOP16 WSON10A
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +5mA/ Internally Limited   Internally Limited /-5m
Search for lineup
Brushless DC motor drive circuit​
Brushless DC motor drive circuit​

Example of a brushless DC motor drive circuit for an ISG

Example of a brushless DC motor drive circuit for an ISG
U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET
Part Number
XPQ1R004PB
XPQR3004PB
XPQR8308QB
XPQ1R00AQB
Toshiba Package Name L-TOGL L-TOGL L-TOGL L-TOGL
VDSS (Max) [V] 40 40 80 100
ID (Max) [A] 200 400 350 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0010 0.00030 0.00083 0.00103
Polarity N-ch N-ch N-ch N-ch
Search for lineup
Gate driver (for motor)
Part Number
TPD7212F
TPD7212FN
Toshiba Package name WQFN32 SSOP30
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +1.5/-1 +1.5/-1
Search for lineup
Brushless DC motor pre driver
Part Number
TB9081FG
TB9083FTG
Toshiba Package Name QFP64-P-1010-0.50C P-VQFN48-0707-0.50-005
Product Category Pre-driver for automobile Pre-driver for automobile
Search for lineup
CAN transceiver protection circuit
CAN transceiver protection circuit

Example of CAN transceiver protection circuit

Example of CAN transceiver protection circuit
TVS diode (for CAN communication)
Part Number
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
Search for lineup
General purpose small signal MOSFET
Part Number
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
Search for lineup
General purpose small signal bipolar transistor
Part Number
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
Search for lineup
Small signal bias resistor built-in transistor (BRT)
Part Number
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
Search for lineup

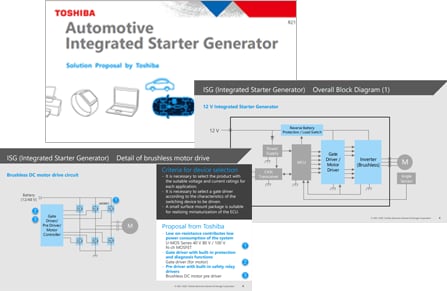

Solution Proposal

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Solution Proposal
SolutionProposal_Automotive Integrated Starter Generator / English (PDF:1.7MB)
SolutionProposal_Automotive Integrated Starter Generator / Japanese (PDF:2.3MB)

Reference Design

Example of TPD7106F Application Circuit.
Single-Output High-Side N-Channel Power MOSFET Gate Driver Application and Circuit of the TPD7106F
This reference design provides examples of application circuit and simulation for TPD7106F which features power supply reverse connection, charge pumpccircuit and others.
Semiconductor / Design & Development / Reference Design Center / Battery Management
Details
3-phase BLDC Motor Drive Applications (U-phase) of 3-phase bridge drive circuit for automotive and industrial BLDC motors.
3-phase bridge drive circuit for automotive and industrial BLDC motors
This reference design provides examples of application circuit and simulation for TPD7212F / FN which features overcurrent protection, reverse power connection protection and others.
Design / Support / Reference Design Center
Details
Short circuit detection circuit block diagram of single-output High-Side N-Channel Power MOSFET Gate Driver application and circuit of the TPD7104AF.
Single-Output High-Side N-Channel Power MOSFET Gate Driver Application and Circuit of the TPD7104AF
This reference design provides examples of application circuit and simulation for TPD7104AF which features short load protection, reverse power connection protection and others.
Semiconductor / Design & Development / Reference Design Center / Battery Management
Details
