Automotive Integrated Starter Generator

Automotive Integrated Starter Generator

Such as ensuring tolerance to motor lock current and reduction of power consumption are important in designing ISG. Toshiba provides information on a wide range of semiconductor products suitable for motor drive units, communication units, power supply units, etc., along with circuit configuration examples.

總方塊圖

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 TVS TVS 12 V 12 V Inverter (Brushless) Inverter(Brushless) Angle Sensor Angle Sensor M M CAN CAN Reverse Battery Protection / Load Switch Reverse BatteryProtection / Load Switch Power Supply PowerSupply MCU MCU CAN Transceiver CANTransceiver Gate Driver / Motor Driver Gate Driver / Motor Driver Brushless DC motor drive circuit Power supply ON/OFF control and reverse connection protection circuit​ CAN transceiver protection circuit
Brushless DC motor drive circuit​

Example of a brushless DC motor drive circuit for an ISG

CAN transceiver protection circuit

Example of CAN transceiver protection circuit

Power supply ON/OFF control and reverse connection protection circuit​

Example of ON/OFF control and reverse connection protecting circuit for 12 V power lines

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 TVS TVS MCU MCU Power Supply PowerSupply 12 V 12 V CAN Transceiver CANTransceiver Gate Driver / Motor Driver Gate Driver / Motor Driver Inverter (Brushless) Inverter(Brushless) Angle Sensor Angle Sensor M M 48 V 48 V CAN CAN Brushless DC motor drive circuit CAN transceiver protection circuit
Brushless DC motor drive circuit​

Example of a brushless DC motor drive circuit for an ISG

CAN transceiver protection circuit

Example of CAN transceiver protection circuit

子方塊圖

Brushless DC motor drive circuit​
Brushless DC motor drive circuit​

Example of a brushless DC motor drive circuit for an ISG

Example of a brushless DC motor drive circuit for an ISG
U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET
器件型號
XPQ1R004PB
XPQR3004PB
XPQR8308QB
XPQ1R00AQB
Toshiba Package Name L-TOGL L-TOGL L-TOGL L-TOGL
VDSS (Max) [V] 40 40 80 100
ID (Max) [A] 200 400 350 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0010 0.00030 0.00083 0.00103
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
Gate driver (for motor)
器件型號
TPD7212F
TPD7212FN
Toshiba Package name WQFN32 SSOP30
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +1.5/-1 +1.5/-1
搜尋產品線
Brushless DC motor pre driver
器件型號
TB9081FG
TB9083FTG
Toshiba Package Name QFP64-P-1010-0.50C P-VQFN48-0707-0.50-005
Product Category Pre-driver for automobile Pre-driver for automobile
搜尋產品線
CAN transceiver protection circuit
CAN transceiver protection circuit

Example of CAN transceiver protection circuit

Example of CAN transceiver protection circuit
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
General purpose small signal bipolar transistor
器件型號
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
搜尋產品線
Small signal bias resistor built-in transistor (BRT)
器件型號
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
搜尋產品線
Power supply ON/OFF control and reverse connection protection circuit​
Power supply ON/OFF control and reverse connection protection circuit​

Example of ON/OFF control and reverse connection protecting circuit for 12 V power lines

Example of ON/OFF control and reverse connection protecting circuit for 12 V power lines
U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET
器件型號
XPQ1R004PB
XPQR3004PB
XPQR8308QB
XPQ1R00AQB
Toshiba Package Name L-TOGL L-TOGL L-TOGL L-TOGL
VDSS (Max) [V] 40 40 80 100
ID (Max) [A] 200 400 350 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0010 0.00030 0.00083 0.00103
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
Gate driver (for switch)
器件型號
TPD7104AF
TPD7106F
TPD7107F
Toshiba Package name PS-8 SSOP16 WSON10A
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +5mA/ Internally Limited   Internally Limited /-5m
搜尋產品線
Brushless DC motor drive circuit​
Brushless DC motor drive circuit​

Example of a brushless DC motor drive circuit for an ISG

Example of a brushless DC motor drive circuit for an ISG
U-MOS Series 40 V / 80 V / 100 V N-ch MOSFET
器件型號
XPQ1R004PB
XPQR3004PB
XPQR8308QB
XPQ1R00AQB
Toshiba Package Name L-TOGL L-TOGL L-TOGL L-TOGL
VDSS (Max) [V] 40 40 80 100
ID (Max) [A] 200 400 350 300
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0010 0.00030 0.00083 0.00103
Polarity N-ch N-ch N-ch N-ch
搜尋產品線
Gate driver (for motor)
器件型號
TPD7212F
TPD7212FN
Toshiba Package name WQFN32 SSOP30
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +1.5/-1 +1.5/-1
搜尋產品線
Brushless DC motor pre driver
器件型號
TB9081FG
TB9083FTG
Toshiba Package Name QFP64-P-1010-0.50C P-VQFN48-0707-0.50-005
Product Category Pre-driver for automobile Pre-driver for automobile
搜尋產品線
CAN transceiver protection circuit
CAN transceiver protection circuit

Example of CAN transceiver protection circuit

Example of CAN transceiver protection circuit
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
General purpose small signal bipolar transistor
器件型號
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
搜尋產品線
Small signal bias resistor built-in transistor (BRT)
器件型號
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
搜尋產品線

解決方案

這些文件說明推薦的半導體產品的要點及其特徵，方便產品選擇。

解決方案

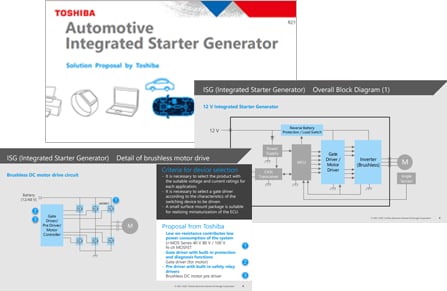

SolutionProposal_Automotive Integrated Starter Generator / English (PDF:1.7MB)
SolutionProposal_Automotive Integrated Starter Generator / Japanese (PDF:2.3MB)

參考設計

Example of TPD7106F Application Circuit.
Single-Output High-Side N-Channel Power MOSFET Gate Driver Application and Circuit of the TPD7106F
This reference design provides examples of application circuit and simulation for TPD7106F which features power supply reverse connection, charge pumpccircuit and others.
詳細資料
3-phase BLDC Motor Drive Applications (U-phase) of 3-phase bridge drive circuit for automotive and industrial BLDC motors.
3-phase bridge drive circuit for automotive and industrial BLDC motors
This reference design provides examples of application circuit and simulation for TPD7212F / FN which features overcurrent protection, reverse power connection protection and others.
詳細資料
Short circuit detection circuit block diagram of single-output High-Side N-Channel Power MOSFET Gate Driver application and circuit of the TPD7104AF.
Single-Output High-Side N-Channel Power MOSFET Gate Driver Application and Circuit of the TPD7104AF
This reference design provides examples of application circuit and simulation for TPD7104AF which features short load protection, reverse power connection protection and others.
詳細資料
