Such as low power consumption and miniaturization are important in designing cordless power tools. Toshiba provides information on a wide range of semiconductor products suitable for motor drive units, control units, power supply and charge management units, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 Main Switch ON/OFF Main SwitchON/OFF Battery Battery Gate Driver Gate Driver VDD VDD LED LED Op-amp Op-amp M M Inverter Inverter MCU/ Motor Control Driver MCU/Motor Control Driver Temp. Sensor Temp.Sensor Op-amp Op-amp AC in AC in LDO Regulator LDORegulator eFuse IC eFuse IC Battery Charging Circuit Battery Charging Circuit LED Driving Circuit LED Driving Circuit Battery charging circuit Motor drive circuit MCU peripheral circuit
Motor drive circuit

Example of a driving circuit for brushless motor using a driver with built-in driving MOSFETs

Example of a driving circuit for brushless motor using a driver and external driving MOSFETs

Example of a driving circuit for brushed motor with rotation switching function by mechanical switch

Example of a driving circuit for brushed motor with rotation switching function by H-bridge using MOSFETs

MCU peripheral circuit

Example of a peripheral circuit such as the power supply and signal input of microcontroller using operational amplifiers and LDOs

Battery charging circuit

Example of an AC-DC power supply circuit for battery charging

Sub block diagram

Motor drive circuit
Motor drive circuit Brushless DC motor (Circuit using driver with built-in MOSFETs)

Example of a driving circuit for brushless motor using a driver with built-in driving MOSFETs

Example of a driving circuit for brushless motor using a driver with built-in driving MOSFETs
Three-phase brushless DC motor driver (Built-in MOSFETs)
Part Number
TC78B016FTG
Toshiba Package Name P-WQFN36-0505-0.50-001
VOUT (Max) [V] 40
IOUT (Max) [A] 3
VM [V] 6 to 30
RON (Typ.) [Ω] 0.24
Search for lineup
Motor drive circuit Brushless DC motor (Circuit using driver with external MOSFETs)

Example of a driving circuit for brushless motor using a driver and external driving MOSFETs

Example of a driving circuit for brushless motor using a driver and external driving MOSFETs
Three-phase brushless DC motor controller (external MOSFETs)
Part Number
TB6584FNG
TB6584AFNG
TB6634FNG
Toshiba Package Name SSOP30-P-300-0.65 SSOP30-P-300-0.65 SSOP30-P-300-0.65
VOUT (Max) [V] 18 18 18
IOUT (Max) [A] 0.002 0.002 0.002
VM [V] 6 to 16.5 6 to 16.5 6 to 16.5
RON (Typ.) [Ω]
Search for lineup
U-MOS Series MOSFET(1)
Part Number
TPWR6003PL
TPWR8004PL
TPHR8504PL
TPHR7404PU
Toshiba Package Name DSOP Advance DSOP Advance SOP Advance SOP Advance
VDSS (Max) [V] 30 40 40 40
ID (Max) [A] 412 340 340 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0006 0.0008 0.00085 0.00074
Polarity N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series MOSFET(2)
Part Number
TPH2R408QM
TPH4R008QM
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name SOP Advance SOP Advance(N) DPAK DPAK
VDSS (Max) [V] 80 80 80 80
ID (Max) [A] 120 86 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00243 0.004 0.0051 0.0069
Polarity N-ch N-ch N-ch N-ch
Search for lineup
Motor drive circuit Brushed DC motor / Mechanical switching

Example of a driving circuit for brushed motor with rotation switching function by mechanical switch

Example of a driving circuit for brushed motor with rotation switching function by mechanical switch
Bipolar transistor
Part Number
TMBT3906
TMBT3904
2SC4116
Toshiba Package Name SOT-23 (SOT23) SOT-23 (SOT23) SOT-323 (USM)
VCEO (Max) [V] -50 50 50
IC (Max) [A] -0.2 0.2 0.15
Polarity PNP NPN NPN
Search for lineup
U-MOS Series MOSFET(1)
Part Number
TPWR6003PL
TPWR8004PL
TPHR8504PL
TPHR7404PU
Toshiba Package Name DSOP Advance DSOP Advance SOP Advance SOP Advance
VDSS (Max) [V] 30 40 40 40
ID (Max) [A] 412 340 340 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0006 0.0008 0.00085 0.00074
Polarity N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series MOSFET(2)
Part Number
TPH2R408QM
TPH4R008QM
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name SOP Advance SOP Advance(N) DPAK DPAK
VDSS (Max) [V] 80 80 80 80
ID (Max) [A] 120 86 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00243 0.004 0.0051 0.0069
Polarity N-ch N-ch N-ch N-ch
Search for lineup
Motor drive circuit Brushed DC motor / MOSFET switching

Example of a driving circuit for brushed motor with rotation switching function by H-bridge using MOSFETs

Example of a driving circuit for brushed motor with rotation switching function by H-bridge using MOSFETs
U-MOS Series MOSFET(1)
Part Number
TPWR6003PL
TPWR8004PL
TPHR8504PL
TPHR7404PU
Toshiba Package Name DSOP Advance DSOP Advance SOP Advance SOP Advance
VDSS (Max) [V] 30 40 40 40
ID (Max) [A] 412 340 340 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0006 0.0008 0.00085 0.00074
Polarity N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series MOSFET(2)
Part Number
TPH2R408QM
TPH4R008QM
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name SOP Advance SOP Advance(N) DPAK DPAK
VDSS (Max) [V] 80 80 80 80
ID (Max) [A] 120 86 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00243 0.004 0.0051 0.0069
Polarity N-ch N-ch N-ch N-ch
Search for lineup
MCU peripheral circuit
MCU peripheral circuit

Example of a peripheral circuit such as the power supply and signal input of microcontroller using operational amplifiers and LDOs

Example of a peripheral circuit such as the power supply and signal input of microcontroller using operational amplifiers and LDOs
Low noise operational amplifier
Part Number
TC75S67TU
Toshiba Package Name SOT-353F (UFV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Search for lineup
Small surface mount LDO regulator
Part Number
TAR5SB Series
Toshiba Package Name SOT-25 (SMV)
IOUT (Max) [mA] 200
VOUT [V] 1.5 to 5.0
Search for lineup
MCU
Series TXZ+™4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
Search for lineup
Battery charging circuit
Battery charging circuit

Example of an AC-DC power supply circuit for battery charging

Example of an AC-DC power supply circuit for battery charging
DTMOSⅣ Series MOSFET
Part Number
TK12A60W
TK10A60W
TK17A80W
Toshiba Package Name TO-220SIS TO-220SIS TO-220SIS
VDSS (Max) [V] 600 600 800
ID (Max) [A] 11.5 9.7 17
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.3 0.38 0.29
Polarity N-ch N-ch N-ch
Search for lineup
Bipolar transistor
Part Number
TMBT3906
TMBT3904
2SC4116
Toshiba Package Name SOT-23 (SOT23) SOT-23 (SOT23) SOT-323 (USM)
VCEO (Max) [V] -50 50 50
IC (Max) [A] -0.2 0.2 0.15
Polarity PNP NPN NPN
Search for lineup
Small signal MOSFET
Part Number
SSM6K513NU
SSM6N55NU
SSM6J507NU
Toshiba Package Name SOT-1220 (UDFN6B) SOT-1118 (UDFN6) SOT-1220 (UDFN6B)
VDSS (Max) [V] 30 30 -30
ID (Max) [A] 15 4.0 -10
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 0.012 0.064 0.028
Polarity N-ch N-ch×2 P-ch
Search for lineup
Transistor output photocoupler
Part Number
TLP385
Toshiba Package Name 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000
VCEO (Max) [V] 80
Topr [°C] -55 to 110
Search for lineup
Low noise operational amplifier
Part Number
TC75S67TU
Toshiba Package Name SOT-353F (UFV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Search for lineup
Electronic Fuse (eFuse IC)(1)
Part Number
TCKE800NA
TCKE805NA
TCKE812NA
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
Search for lineup
Electronic Fuse (eFuse IC)(2)
Part Number
TCKE800NL
TCKE805NL
TCKE812NL
TCKE712BNL
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
Search for lineup

Solution Proposal

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Solution Proposal

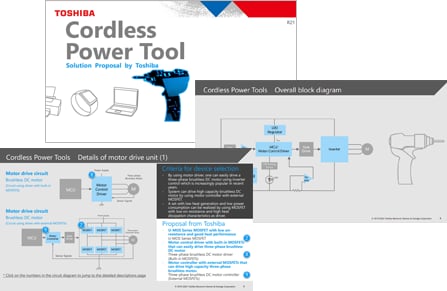

SolutionProposal_Cordless Power Tool / English (PDF:1.2MB)
SolutionProposal_Cordless Power Tool / Japanese (PDF:1.4MB)

Reference Design

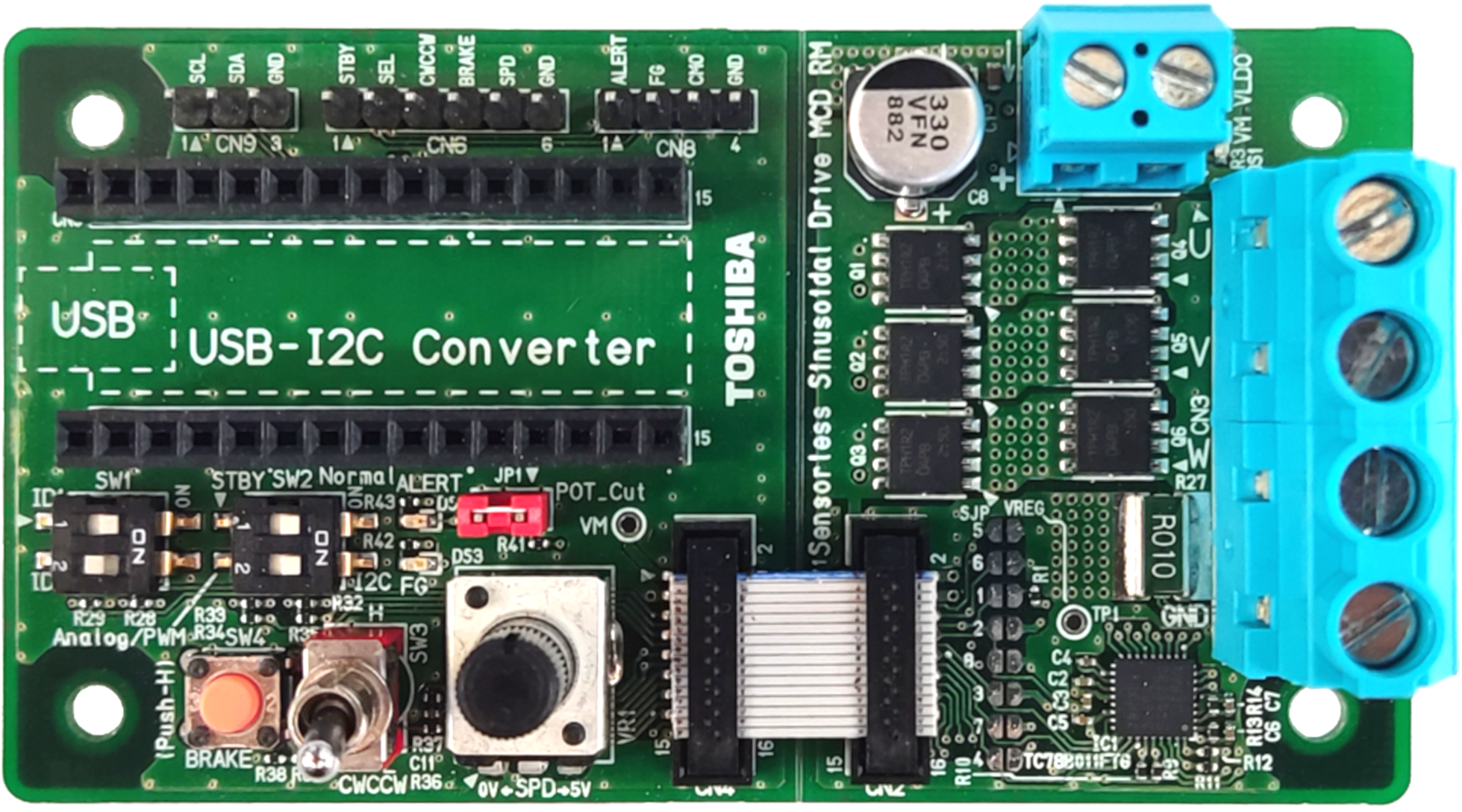

Sensorless Sinusoidal Brushless Motor Drive Circuit Using TC78B011FTG
Sensorless Sinusoidal Brushless Motor Drive Circuit Using TC78B011FTG
This reference design provides design guide, data and other contents of a brushless motor drive circuit using sensorless sinusoidal PWM predriver IC for 3-phase brushless motor. This design allows easy configuration of the motor pre-driver using a GUI.
Details

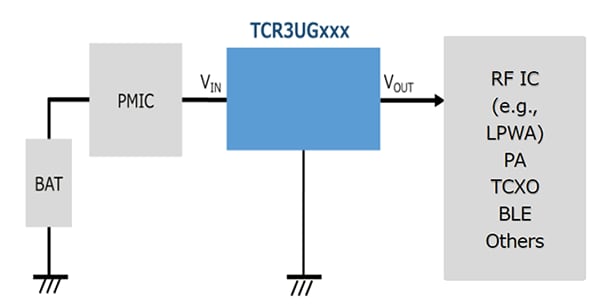

Power supply circuit example of LDO regulator TCR3UG series application for power supply of IoT devices.
LDO Regulator TCR3UG Series Application for Power Supply of IoT Devices
This reference design provides document with low consumption current, PSRR, and dynamic response.The LDO has small package, low consumed power, and fast load transient response.
LDO Regulator / TCR3UG
Details

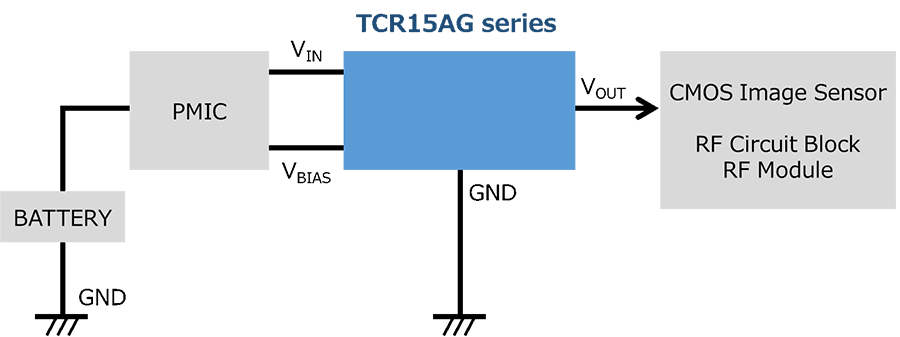

Power supply circuit example of LDO regulator TCR15AG (fixed output voltage type) application & circuit.
LDO Regulator TCR15AG (fixed output voltage type) Application & Circuit
This reference design provides document with PSRR, dynamic response and controlling output voltage.The LDO has very small package and fixed output voltage for consumer application.
LDORegulator / TCR15AG
Details
Application block diagram of application circuits of TPD4204F and TB6634FNG sine-wave control type of BLDC motor driver.
Application Circuits of TPD4204F and TB6634FNG Sine-Wave Control Type of BLDC Motor Driver
This reference design provides example circuit and design guide using Hall device/IC. The TPD4204F has 600V rating and built-in PWM to drive BLDC motor with sign-wave control.
Design / Support / Reference Design Center
Details
Applicatoin block diagram of application circuits of TPD4206F and TB6634FNG sine-wave control type of BLDC motor driver.
Application Circuits of TPD4206F and TB6634FNG Sine-Wave Control Type of BLDC Motor Driver
This reference design provides example circuit and design guide using Hall device/IC. The TPD4206F has 500V rating and built-in PWM to drive BLDC motor with sign-wave control.
Design / Support / Reference Design Center
Details

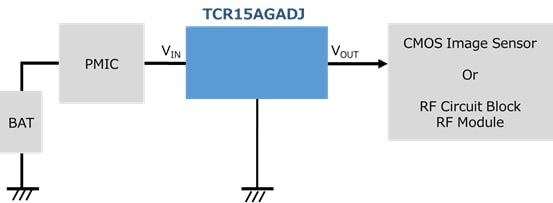

Power supply circuit example of LDO regulator TCR15AGADJ application & circuit.
LDO Regulator TCR15AGADJ Application & Circuit
This reference design provides document with PSRR, dynamic response and controlling output voltage. The LDO has very small package and adjustable output for consumer application.
LDO Regulator / Design / Support / Reference Design Center
Details

Documents

Please see the following pages for other documents.

Video

Design & Development

Switched Mode Power Supply Library

you can select and download various basic topologies of a power supply unit based on your actual requirements in order to verify the behavior of MOSFETs with your simulation environment.

Switched Mode Power Supply Library
Motor Control and Driver Circuit Library

you can select and download various basic topologies of motor driver such as three-phase inverter circuit based on your actual requirements in order to verify the behavior of MOSFETs and another devices for your simulation environment.

Motor Control and Driver Circuit Library
Online Circuit Simulator

This service allows users to easily perform pre-verification of MOSFETs without the need to build a simulation environment.

Online Circuit Simulator
EDA/CAD Model Library

We provide simulation data, 3D models of packages, and land pattern models (2D models) used when developing product boards.

EDA/CAD Model Library
MCU Motor Studio

MCU Motor Studio features a PC Tool and motor control firmware dedicated to the TXZ+TM Family Advanced Class microcontrollers from Toshiba.

MCU Motor Studio
