PV Inverter for Household Use

PV Inverter for Household Use

Such as high efficiency and miniaturization are important in designing PV inverter for household use. Toshiba provides information on a wide range of semiconductor products suitable for convertercircuit unit, inverter circuit unit, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 Junction Box JunctionBox Isolation Amp IsolationAmp Isolation Amp IsolationAmp AC Noise Filter AC Noise Filter Boost Converter Boost Converter Inverter Circuit Inverter Circuit Phase Current Monitoring Phase Current Monitoring BUS Voltage Monitoring BUS Voltage Monitoring Network I/O RS-485 etc Fan / Display Network I/ORS-485 etcFan / Display Solar Panel Solar Panel Solar Panel Solar Panel Solar Panel Solar Panel MCU MCU DC-DC DC-DC MCU, Photocoupler, Isolation Amp, etc. MCU, Photocoupler, Isolation Amp, etc. Isolation Isolation Photo coupler Photocoupler MOS FET MOSFET Photo coupler Photocoupler MOS FET MOSFET MOS FET MOSFET MOS FET MOSFET MOS FET MOSFET Photo coupler Photocoupler Photo coupler Photocoupler Photo coupler Photocoupler Isolation Amp IsolationAmp Boost converter circuit Inverter circuit
Boost converter circuit

Example of DC-DC converter for boosting the voltages of solar panels

Inverter circuit

Example of full-bridge DC-AC converter

Sub block diagram

Boost converter circuit
Boost converter circuit

Example of DC-DC converter for boosting the voltages of solar panels

Example of DC-DC converter for boosting the voltages of solar panels
IC output photocoupler
Part Number
Toshiba Package Name SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000
VCC / VDD (Min) [V]
VCC / VDD (Max) [V]
ICC / IDD (Max) [mA] 0.001
Output Interface open-collector
IC output photocoupler(Smart Gate Driver Coupler)
Part Number
Toshiba Package Name SO16L SO16L SO16L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000
VCC / VDD (Min) [V] 15.0 15 15
VCC / VDD (Max) [V] 23.5 30 30
ICC / IDD (Max) [mA] 10.2 3.5 3.8
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
Isolation amplifier
Part Number
Toshiba Package Name SO8L(LF4)
Output Interface Analog output
BVS (Min) [Vrms] @ t = 60 [s] 5000
VDD1 (Max) [V] 5.5
VDD2 (Max) [V] 5.5
IDD1 (Max) [mA] @ VIN+ = 0 [V] 12
IDD2 (Max) [mA] @ VIN+ = 0 [V] 10
Low noise operational amplifier
Part Number
Toshiba Package Name UFV
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Inverter circuit
Inverter circuit

Example of full-bridge DC-AC converter

Example of full-bridge DC-AC converter
IC output photocoupler
Part Number
Toshiba Package Name SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000
VCC / VDD (Min) [V]
VCC / VDD (Max) [V]
ICC / IDD (Max) [mA] 0.001
Output Interface open-collector
IC output photocoupler(Smart Gate Driver Coupler)
Part Number
Toshiba Package Name SO16L SO16L SO16L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000
VCC / VDD (Min) [V] 15.0 15 15
VCC / VDD (Max) [V] 23.5 30 30
ICC / IDD (Max) [mA] 10.2 3.5 3.8
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
DTMOS Series MOSFET
Part Number
Toshiba Package Name TO-220 TOLL TO-220SIS TO-247 TO-247-4L
VDSS (Max) [V] 650 650 650 650 650
ID (Max) [A] 30 30 30 30 30
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.09 0.09 0.09 0.09 0.09
Polarity N-ch N-ch N-ch N-ch N-ch
Isolation amplifier
Part Number
Toshiba Package Name SO8L(LF4)
Output Interface Analog output
BVS (Min) [Vrms] @ t = 60 [s] 5000
VDD1 (Max) [V] 5.5
VDD2 (Max) [V] 5.5
IDD1 (Max) [mA] @ VIN+ = 0 [V] 12
IDD2 (Max) [mA] @ VIN+ = 0 [V] 10
Low noise operational amplifier
Part Number
Toshiba Package Name UFV
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75

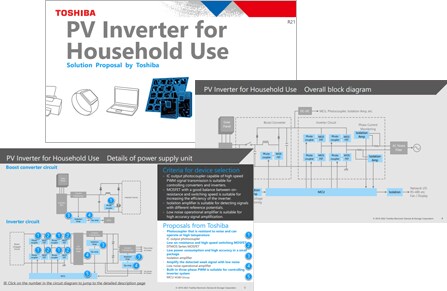

Solution Proposal

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Documents

Design & Development

Switched Mode Power Supply Library

you can select and download various basic topologies of a power supply unit based on your actual requirements in order to verify the behavior of MOSFETs with your simulation environment.

Motor Control and Driver Circuit Library

you can select and download various basic topologies of motor driver such as three-phase inverter circuit based on your actual requirements in order to verify the behavior of MOSFETs and another devices for your simulation environment.

EDA/CAD Model Library

We provide simulation data, 3D models of packages, and land pattern models (2D models) used when developing product boards.

MCU Motor Studio

MCU Motor Studio features a PC Tool and motor control firmware dedicated to the TXZ+TM Family Advanced Class microcontrollers from Toshiba.
