IH Rice Cooker

IH Rice Cooker

Such as high breakdown voltage, low power consumption and miniaturization are important in designing IH rice cooker. Toshiba provides information on a wide range of semiconductor products suitable for IH coil driving units, motor driving units, heater control unit, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 DC-DC DC-DC Speaker Speaker Key Input Key Input Temp. Sensor Temp.Sensor Steam Heater SteamHeater Torso Heater TorsoHeater Lid Heater LidHeater IH Coil IH Coil Isolation Isolation Fan Fan Display Display LED LED EEPROM EEPROM Gate Driver GateDriver Isolation Isolation Isolation Isolation Main Control MCU Main Control MCU Display Control MCU DisplayControl MCU IGBT IGBT IH coil drive circuit Heater control circuit LED driving circuit Fan motor drive circuit
IH coil drive circuit

Example of IH voltage resonance circuit for driving IGBT with gate a driver coupler

Example of IH voltage resonance circuit for driving IGBT with bipolar transistors

Fan motor drive circuit

Example of fan motor drive circuit using a photocoupler for motor current feedback

LED driving circuit

Example of LED drive circuit using a MOSFET as a low-side switch

Heater control circuit

Example of a heater drive circuit for controlling a main triac with a triac coupler

Sub block diagram

IH coil drive circuit
IH coil drive circuit (using gate driver coupler)

Example of IH voltage resonance circuit for driving IGBT with gate a driver coupler

Example of IH voltage resonance circuit for driving IGBT with gate a driver coupler
Discrete IGBT
Part Number
Toshiba Package Name TO-3P(N) TO-3P(N) TO-247 TO-247
VCES (Max) [V] 1000 1100 1350 1350
IC (Max) [A] 50 60 40 30
IGBT gate driver coupler(1)
Part Number
Toshiba Package Name SO6L SO6L SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000
VCC / VDD (Min) [V] 10 10 10
VCC / VDD (Max) [V] 30 30 30
ICC / IDD (Max) [mA] 3 3 3
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
IGBT gate driver coupler(2)
Part Number
Toshiba Package Name SO6L SO6L SO6L SO16L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000
VCC / VDD (Min) [V] 15 15 15 15.0
VCC / VDD (Max) [V] 30 30 30 23.5
ICC / IDD (Max) [mA] 3 3 3 10.2
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
Main control MCU
Series TLCS-870C1 Series
Group
IH coil drive circuit (using discrete components)

Example of IH voltage resonance circuit for driving IGBT with bipolar transistors

Example of IH voltage resonance circuit for driving IGBT with bipolar transistors
Discrete IGBT
Part Number
Toshiba Package Name TO-3P(N) TO-3P(N) TO-247 TO-247
VCES (Max) [V] 1000 1100 1350 1350
IC (Max) [A] 50 60 40 30
Bipolar transistor for IGBT gate drive
Part Number
Toshiba Package Name SMV SMV PS-8 PS-8
VCEO (Q1) (Max) [V] -30 30 -50 -30
VCEO (Q2) (Max) [V] 30 -30 50 30
IC (Q1) (Max) [A] -1.0 2 -0.8 -2.0
IC (Q2) (Max) [A] 1.2 -1.8 1 2.0
Polarity (Q1) PNP NPN PNP PNP
Polarity (Q2) NPN PNP NPN NPN
Main control MCU
Series TLCS-870C1 Series
Group
Fan motor drive circuit
Fan motor drive circuit

Example of fan motor drive circuit using a photocoupler for motor current feedback

Example of fan motor drive circuit using a photocoupler for motor current feedback
Transistor output photocoupler
Part Number
Toshiba Package Name 4pin SO6 4pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 3750 3750
VCEO (Max) [V] 80 80
Topr [°C] -55 to 125 -55 to 110
U-MOS Series MOSFET
Part Number
Toshiba Package Name VESM ES6
VDSS (Max) [V] 20 20
ID (Max) [A] 0.8 0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 0.235 0.235
Polarity N-ch N-ch×2
Main control MCU
Series TLCS-870C1 Series
Group
LED driving circuit
LED driving circuit

Example of LED drive circuit using a MOSFET as a low-side switch

Example of LED drive circuit using a MOSFET as a low-side switch
Rectifier diode
Part Number
Toshiba Package Name M-FLAT
VRRM (Max) [V] 600
IF(AV) (Max) [A] 1
U-MOS Series MOSFET
Part Number
Toshiba Package Name VESM ES6
VDSS (Max) [V] 20 20
ID (Max) [A] 0.8 0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 0.235 0.235
Polarity N-ch N-ch×2
Heater control circuit
Heater control circuit

Example of a heater drive circuit for controlling a main triac with a triac coupler

Example of a heater drive circuit for controlling a main triac with a triac coupler
Triac output photocoupler
Part Number
Toshiba Package Name 4pin SO6 5pin DIP6_black
BVS (Min) [Vrms] @ t = 60 [s] 3750 5000
Topr [°C] -40 to 100 -40 to 100
Main control MCU
Series TLCS-870C1 Series
Group

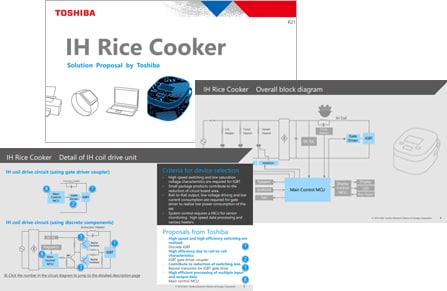

Solution Proposal
