Such as high efficiency, low power consumption and miniaturization are important in designing cordless cleaner. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, control unit, motor driving units, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 Main Motor Main Motor Brushed Brushed I/O I/O PWM PWM Foot Light Foot Light I2C I2C 100 to 240 V AC 100 to 240 V AC Main Unit Main Unit Battery Charger Circuit Battery Charger Circuit Li-ion Battery Li-ionBattery MCU, LED, Current Sensor MCU, LED,Current Sensor M M MCU MCU Battery Cell Balance IC BatteryCellBalanceIC Status LEDs Status LEDs Temperature Sensor Temperature Sensor ON/OFF Switch ON/OFF Switch Vacuum Strength Switch Vacuum Strength Switch Current Sensor CurrentSensor Switching Regulator SwitchingRegulator Li-ion Battery Li-ion Battery Battery Cell Balance IC Battery CellBalance IC AC-DC AC-DC Current Sensor CurrentSensor eFuse IC / Gate Driver IC & N-ch MOSFET eFuse IC /Gate Driver IC & N-ch MOSFET Current Sensor CurrentSensor SBD SBD SBD SBD MOSFET MOSFET MOSFET MOSFET LED Drive Circuit LED Drive Circuit Linear Regulator LinearRegulator M M Main control circuit Head motor drive circuit Brushed DC motor Main motor drive circuit Brushed DC motor LED drive circuit for lighting Flyback AC-DC circuits
Main motor drive circuit Brushed DC motor

Example of main motor drive circuit using MOSFET

Example of main motor drive circuit using MOSFET

Main control circuit

Example of main control circuit using MCU

Head motor drive circuit Brushed DC motor

Example of head motor drive circuit using MOSFET

LED drive circuit for lighting

Example of LED drive circuit using bipolar transistor

Flyback AC-DC circuits

Example of AC-DC flyback power supply circuit

Sub block diagram

Main motor drive circuit Brushed DC motor
Main motor drive circuit Brushed DC motor(1)

Example of main motor drive circuit using MOSFET

Example of main motor drive circuit using MOSFET
U-MOS Series N-ch MOSFET(1)
Part Number
TPH7R006PL
TPH4R008QM
TPH2R408QM
Toshiba Package Name SOP Advance SOP Advance(N) SOP Advance
VDSS (Max) [V] 60 80 80
ID (Max) [A] 79 86 120
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.007 0.004 0.00243
Polarity N-ch N-ch N-ch
Search for lineup
U-MOS Series N-ch MOSFET(2)
Part Number
TPN7R006PL
TPN8R408QM
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name TSON Advance TSON Advance DPAK DPAK
VDSS (Max) [V] 60 80 80 80
ID (Max) [A] 76 32 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.007 0.0084 0.0051 0.0069
Polarity N-ch N-ch N-ch N-ch
Search for lineup
Schottky barrier diode
Part Number
CMS05
CMS15
Toshiba Package Name M-FLAT M-FLAT
VRRM (Max) [V] 30 60
VR (Max) [V]
CT (Typ.) [pF]
Search for lineup
CMOS operational amplifier
Part Number
TC75S55F
TC75S55FU
Toshiba Package Name SOT-25 (SMV) SOT-353 (USV)
VCC (Max) [V] 7 7
VCC, VEE (Max) [V] +/-3.5 +/-3.5
Search for lineup
MCU
Series TX03 Series TX04 Series TXZ+TM 4A Series
Group M370 Group M470 Group M4K Group
Search for lineup
Main motor drive circuit Brushed DC motor(2)

Example of main motor drive circuit using MOSFET

Example of main motor drive circuit using MOSFET
Electronic Fuse (eFuse IC)(1)
Part Number
TCKE800NA
TCKE805NA
TCKE812NA
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
Search for lineup
Electronic Fuse (eFuse IC)(2)
Part Number
TCKE800NL
TCKE805NL
TCKE812NL
TCKE712BNL
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
Search for lineup
N-ch MOSFET gate driver IC(1)
Part Number
TCK401G
TCK402G
TCK420G
TCK421G
TCK422G
Toshiba Package Name WCSP6E WCSP6E WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V]     27.56 23.14 14.17
VOVL_RI (Typ.) [V]     27.73 23.26 14.29
VGS (Typ.) [V] 8.5 8.5 10 10 10
Search for lineup
N-ch MOSFET gate driver IC(1)
Part Number
TCK423G
TCK424G
TCK425G
Toshiba Package Name WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V] 14.17 10.71 6.19
VOVL_RI (Typ.) [V] 14.29 10.83 6.31
VGS (Typ.) [V] 5.6 5.6 5.6
Search for lineup
Main control circuit
Main control circuit

Example of main control circuit using MCU

Example of main control circuit using MCU
U-MOS Series N-ch MOSFET(1)
Part Number
TPH7R006PL
TPH4R008QM
TPH2R408QM
Toshiba Package Name SOP Advance SOP Advance(N) SOP Advance
VDSS (Max) [V] 60 80 80
ID (Max) [A] 79 86 120
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.007 0.004 0.00243
Polarity N-ch N-ch N-ch
Search for lineup
U-MOS Series N-ch MOSFET(2)
Part Number
TPN7R006PL
TPN8R408QM
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name TSON Advance TSON Advance DPAK DPAK
VDSS (Max) [V] 60 80 80 80
ID (Max) [A] 76 32 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.007 0.0084 0.0051 0.0069
Polarity N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series P-ch MOSFET
Part Number
TPCA8120
Toshiba Package Name SOP Advance
VDSS (Max) [V] -30
ID (Max) [A] -45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.003
Polarity P-ch
Search for lineup
Schottky barrier diode
Part Number
CMS05
CMS15
Toshiba Package Name M-FLAT M-FLAT
VRRM (Max) [V] 30 60
VR (Max) [V]
CT (Typ.) [pF]
Search for lineup
MCU
Series TX03 Series TX04 Series TXZ+TM 4A Series
Group M370 Group M470 Group M4K Group
Search for lineup
Head motor drive circuit Brushed DC motor
Head motor drive circuit Brushed DC motor

Example of head motor drive circuit using MOSFET

Example of head motor drive circuit using MOSFET
U-MOS Series P-ch MOSFET
Part Number
TPCA8120
Toshiba Package Name SOP Advance
VDSS (Max) [V] -30
ID (Max) [A] -45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.003
Polarity P-ch
Search for lineup
Schottky barrier diode
Part Number
CMS05
CMS15
Toshiba Package Name M-FLAT M-FLAT
VRRM (Max) [V] 30 60
VR (Max) [V]
CT (Typ.) [pF]
Search for lineup
CMOS operational amplifier
Part Number
TC75S55F
TC75S55FU
Toshiba Package Name SOT-25 (SMV) SOT-353 (USV)
VCC (Max) [V] 7 7
VCC, VEE (Max) [V] +/-3.5 +/-3.5
Search for lineup
MCU
Series TX03 Series TX04 Series TXZ+TM 4A Series
Group M370 Group M470 Group M4K Group
Search for lineup
LED drive circuit for lighting
LED drive circuit for lighting

Example of LED drive circuit using bipolar transistor

Example of LED drive circuit using bipolar transistor
Small surface mount bipolar transistor(1)
Part Number
2SC2712
TBC847
2SA1162
TBC857
Toshiba Package Name SOT-346 (S-Mini) SOT-23 (SOT23) SOT-346 (S-Mini) SOT-23 (SOT23)
VCEO (Max) [V] 50 50 -50 -50
IC (Max) [A] 0.15 0.15 -0.15 -0.15
Polarity NPN NPN PNP PNP
Search for lineup
Small surface mount bipolar transistor(2)
Part Number
HN1B01FU
Toshiba Package Name SOT-363 (US6)
VCEO (Q1) (Max) [V] -50
VCEO (Q2) (Max) [V] 50
IC (Q1) (Max) [A] -0.15
IC (Q2) (Max) [A] 0.15
Polarity (Q1) PNP
Polarity (Q2) NPN
Search for lineup
MCU
Series TX03 Series TX04 Series TXZ+TM 4A Series
Group M370 Group M470 Group M4K Group
Search for lineup
Flyback AC-DC circuits
Flyback AC-DC circuits

Example of AC-DC flyback power supply circuit

Example of AC-DC flyback power supply circuit
Transistor output photocoupler
Part Number
TLP383
Toshiba Package Name 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000
VCEO (Max) [V] 80
Topr [°C] -55 to 125
Search for lineup

Solution Proposal

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Solution Proposal

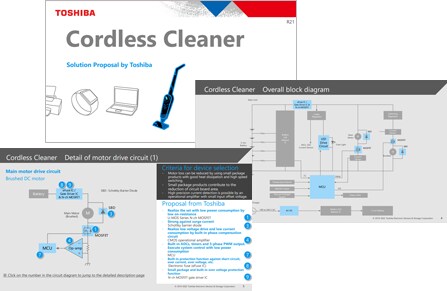

SolutionProposal_Cordless Cleaner / English (PDF:978KB)
