Automotive Electric Pump (Water/Oil)

Automotive Electric Pump (Water/Oil)

Such as ensuring
tolerance to motor lock current and reduction of power consumption are important in electric pump (water/oil). Toshiba provides information on a wide range of semiconductor products suitable for motor drive unit, power supply unit, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 Power supply Powersupply MCU MCU Gate driver/ Pre driver / Motor controller Gate driver/Pre driver /Motor controller Sensor Signal Sensor Signal CAN Line CAN Line TVS TVS Inverter Inverter Battery (12 V) Battery(12 V) M M Reverse battery protection and load switch Reverse battery protection and load switch Drive circuit for DC motor Power supply ON/OFF control and reverse connection protection circuit
Driving circuit for DC motor

Example of a brushed DC motor drive circuit (N-ch type) for electric pump (Water/Oil)

Example of a three-phase brushless DC motor drive circuit (N-ch type) for electric pump (Water/Oil)

Example of a three-phase brushless DC motor drive circuit (N-ch/P-ch type) for electric pump (Water/Oil)

Power supply ON/OFF control and reverse connection protection circuit

Example of ON/OFF control and reverse connection protection circuit using P-ch MOSFET for 12 V power lines.

Example of ON/OFF control and reverse connection protection circuit using N-ch MOSFET for 12 V power lines.

Sub block diagram

Driving circuit for DC motor
Driving circuit for brushed DC motor (N-ch type)

Example of a brushed DC motor drive circuit (N-ch type) for electric pump (Water/Oil)

Example of a brushed DC motor drive circuit (N-ch type) for electric pump (Water/Oil)
U-MOS Series 40 V N-ch MOSFET
Part Number
XPN3R804NC
TK1R4S04PB
XPHR7904PS
TPWR7904PB
XPJR6604PB
XPQR3004PB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) DSOP Advance(WF)L S-TOGL L-TOGL
VDSS (Max) [V] 40 40 40 40 40 40
ID (Max) [A] 40 120 150 150 200 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0038 0.00135 0.00079 0.00079 0.00066 0.00030
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series 60 V N-ch MOSFET
Part Number
XPN12006NC
XPN6R706NC
XPH3R206NC
XPH2R106NC
TK90S06N1L
Toshiba Package Name TSON Advance(WF) TSON Advance(WF) SOP Advance(WF) SOP Advance(WF) DPAK+
VDSS (Max) [V] 60 60 60 60 60
ID (Max) [A] 20 40 70 110 90
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0120 0.0067 0.0032 0.0021 0.0033
Polarity N-ch N-ch N-ch N-ch N-ch
Search for lineup
Brushed DC motor pre driver
Part Number
TB9057FG
Toshiba Package Name LQFP48-P-0707-0.50
Product Category H-bridge driver for automobile
Search for lineup
Power supply IC (for MCU)
Part Number
TB9005FNG
Toshiba Package Name SSOP20
Product Category Automobile CPU regulator, built-in watchdog timer
Search for lineup
Driving circuit for brushless DC motor (N-ch type)

Example of a three-phase brushless DC motor drive circuit (N-ch type) for electric pump (Water/Oil)

Example of a three-phase brushless DC motor drive circuit (N-ch type) for electric pump (Water/Oil)
U-MOS Series 40 V N-ch MOSFET
Part Number
XPN3R804NC
TK1R4S04PB
XPHR7904PS
TPWR7904PB
XPJR6604PB
XPQR3004PB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) DSOP Advance(WF)L S-TOGL L-TOGL
VDSS (Max) [V] 40 40 40 40 40 40
ID (Max) [A] 40 120 150 150 200 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0038 0.00135 0.00079 0.00079 0.00066 0.00030
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series 60 V N-ch MOSFET
Part Number
XPN12006NC
XPN6R706NC
XPH3R206NC
XPH2R106NC
TK90S06N1L
Toshiba Package Name TSON Advance(WF) TSON Advance(WF) SOP Advance(WF) SOP Advance(WF) DPAK+
VDSS (Max) [V] 60 60 60 60 60
ID (Max) [A] 20 40 70 110 90
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0120 0.0067 0.0032 0.0021 0.0033
Polarity N-ch N-ch N-ch N-ch N-ch
Search for lineup
Gate driver (for motor)
Part Number
TPD7211F
TPD7212F
TPD7212FN
Toshiba Package name PS-8 WQFN32 SSOP30
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +0.5/-0.5 +1.5/-1 +1.5/-1
Search for lineup
Brushless DC motor pre driver
Part Number
TB9081FG
TB9083FTG
Toshiba Package Name QFP64-P-1010-0.50C P-VQFN48-0707-0.50-005
Product Category Pre-driver for automobile Pre-driver for automobile
Search for lineup
Power supply IC (for MCU)
Part Number
TB9005FNG
Toshiba Package Name SSOP20
Product Category Automobile CPU regulator, built-in watchdog timer
Search for lineup
Driving circuit for brushless DC motor (N-ch/P-ch type)

Example of a three-phase brushless DC motor drive circuit (N-ch/P-ch type) for electric pump (Water/Oil)

Example of a three-phase brushless DC motor drive circuit (N-ch/P-ch type) for electric pump (Water/Oil)
U-MOS Series 40 V N-ch MOSFET
Part Number
XPN3R804NC
TK1R4S04PB
XPHR7904PS
TPWR7904PB
XPJR6604PB
XPQR3004PB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) DSOP Advance(WF)L S-TOGL L-TOGL
VDSS (Max) [V] 40 40 40 40 40 40
ID (Max) [A] 40 120 150 150 200 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0038 0.00135 0.00079 0.00079 0.00066 0.00030
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series 60 V N-ch MOSFET
Part Number
XPN12006NC
XPN6R706NC
XPH3R206NC
XPH2R106NC
TK90S06N1L
Toshiba Package Name TSON Advance(WF) TSON Advance(WF) SOP Advance(WF) SOP Advance(WF) DPAK+
VDSS (Max) [V] 60 60 60 60 60
ID (Max) [A] 20 40 70 110 90
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0120 0.0067 0.0032 0.0021 0.0033
Polarity N-ch N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series -40V, -60V P-ch power MOSFET
Part Number
XPN9R614MC
XPH3R114MC
XPH8R316MC
TJ90S04M3L
Toshiba Package Name TSON Advance(WF) SOP Advance(WF) SOP Advance(WF) DPAK+
VDSS (Max) [V] -40 -40 -60 -40
ID (Max) [A] -40 -100 -90 -90
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0096 0.0031 0.0083 0.0043
Polarity P-ch P-ch P-ch P-ch
Search for lineup
Gate driver (for motor)
Part Number
TPD7211F
TPD7212F
TPD7212FN
Toshiba Package name PS-8 WQFN32 SSOP30
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +0.5/-0.5 +1.5/-1 +1.5/-1
Search for lineup
Brushless DC motor pre driver
Part Number
TB9061AFNG
TB9062FNG
TB9067FNG
Toshiba Package Name SSOP24-P-300-0.65A SSOP24-P-300-0.65A SSOP24-P-300-0.65A
Product Category Pre-driver for automobile Pre-driver for automobile Pre-driver for automobile
Search for lineup
Power supply IC (for MCU)
Part Number
TB9005FNG
Toshiba Package Name SSOP20
Product Category Automobile CPU regulator, built-in watchdog timer
Search for lineup
Power supply ON/OFF control and reverse connection protection circuit
Power supply ON/OFF control and reverse connection protection circuit (P-ch type)

Example of ON/OFF control and reverse connection protection circuit using P-ch MOSFET for 12 V power lines.

Example of ON/OFF control and reverse connection protection circuit using P-ch MOSFET for 12 V power lines.
U-MOS Series -40V, -60V P-ch power MOSFET
Part Number
XPN9R614MC
XPH3R114MC
XPH8R316MC
TJ90S04M3L
Toshiba Package Name TSON Advance(WF) SOP Advance(WF) SOP Advance(WF) DPAK+
VDSS (Max) [V] -40 -40 -60 -40
ID (Max) [A] -40 -100 -90 -90
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0096 0.0031 0.0083 0.0043
Polarity P-ch P-ch P-ch P-ch
Search for lineup
General purpose small signal MOSFET
Part Number
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
Search for lineup
General purpose small signal bipolar transistor
Part Number
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
Search for lineup
Small signal bias resistor built-in transistor (BRT)
Part Number
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
Search for lineup
TVS diode (for CAN communication)
Part Number
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
Search for lineup
Power supply IC (for MCU)
Part Number
TB9005FNG
Toshiba Package Name SSOP20
Product Category Automobile CPU regulator, built-in watchdog timer
Search for lineup
Power supply ON/OFF control and reverse connection protection circuit (N-ch type)

Example of ON/OFF control and reverse connection protection circuit using N-ch MOSFET for 12 V power lines.

Example of ON/OFF control and reverse connection protection circuit using N-ch MOSFET for 12 V power lines.
U-MOS Series 40 V N-ch MOSFET
Part Number
XPN3R804NC
TK1R4S04PB
XPHR7904PS
TPWR7904PB
XPJR6604PB
XPQR3004PB
Toshiba Package Name TSON Advance(WF) DPAK+ SOP Advance(WF) DSOP Advance(WF)L S-TOGL L-TOGL
VDSS (Max) [V] 40 40 40 40 40 40
ID (Max) [A] 40 120 150 150 200 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0038 0.00135 0.00079 0.00079 0.00066 0.00030
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
Gate driver (for switch)
Part Number
TPD7104AF
TPD7106F
TPD7107F
Toshiba Package name PS-8 SSOP16 WSON10A
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +5mA/ Internally Limited   Internally Limited /-5m
Search for lineup
General purpose small signal MOSFET
Part Number
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
Search for lineup
General purpose small signal bipolar transistor
Part Number
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
Search for lineup
Small signal bias resistor built-in transistor (BRT)
Part Number
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
Search for lineup
TVS diode (for CAN communication)
Part Number
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
Search for lineup
Power supply IC (for MCU)
Part Number
TB9005FNG
Toshiba Package Name SSOP20
Product Category Automobile CPU regulator, built-in watchdog timer
Search for lineup

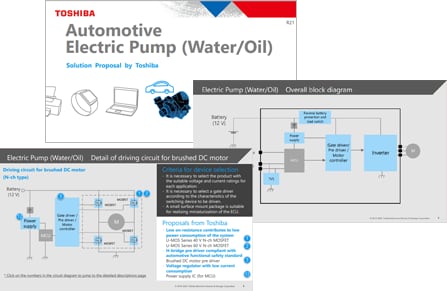

Solution Proposal

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Solution Proposal
SolutionProposal_Automotive Electric Pump (Water/Oil) / English (PDF:2.5MB)
SolutionProposal_Automotive Electric Pump (Water/Oil) / Japanese (PDF:3.1MB)

Reference Design

Motor Driving Circuit for Automotive Body Electronics Using SmartMCD™
We developed an automotive body motor control circuit that supports sensorless vector control using SmartMCD™, a gate driver IC with a built-in microcontroller. This reference design provides explanations of design points of various circuits, design data, and usage methods.
Details

Documents

Please see the following pages for other documents.

Design & Development

Switched Mode Power Supply Library

you can select and download various basic topologies of a power supply unit based on your actual requirements in order to verify the behavior of MOSFETs with your simulation environment.

Switched Mode Power Supply Library
Motor Control and Driver Circuit Library

you can select and download various basic topologies of motor driver such as three-phase inverter circuit based on your actual requirements in order to verify the behavior of MOSFETs and another devices for your simulation environment.

Motor Control and Driver Circuit Library
EDA/CAD Model Library

We provide simulation data, 3D models of packages, and land pattern models (2D models) used when developing product boards.

EDA/CAD Model Library
MCU Motor Studio

MCU Motor Studio features a PC Tool and motor control firmware dedicated to the TXZ+TM Family Advanced Class microcontrollers from Toshiba.

MCU Motor Studio

Contacts

Technical inquiry

Contact us

Contact us

Frequently Asked Questions

FAQs
  • S-TOGLTM and L-TOGLTM are trademarks of Toshiba Electronic Devices & Storage Corporation.
  • Other company names, product names, and service names may be trademarks of their respective companies.
A new window will open
