Such as low power consumption and miniaturization are important in designing body composition analyzer. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, sensor signal input unit, display unit, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 LDO LDO Battery Battery Op-amp Op-amp Piezoelectric Element Piezoelectric Element Constant Current Circuit Constant Current Circuit TVS TVS TVS TVS TVS TVS TVS TVS Op-amp Op-amp LCD Module LCDModule Sound Sound Human Body Impedance Measurement Terminal Human Body Impedance Measurement Terminal MCU MCU Display circuit Power supply Piezoelectric element Impedance measurement circuit
Power supply

Example of power supply circuit in a battery powered system

Piezoelectric element

Example of piezoelectric device circuit for measurement of body weight

Panel display system

Example of panel display circuit

Human body impedance measurement

Example of impedance measurement circuit for measuring body fat

Sub block diagram

Power supply
Power supply

Example of power supply circuit in a battery powered system

Example of power supply circuit in a battery powered system
Small surface mount LDO regulator
Part Number
TCR3UM Series
TCR3DF Series
TCR3UF Series
Toshiba Package Name DFN4E SOT-25 (SMV) SOT-25 (SMV)
IOUT (Max) [mA] 300 300 300
VOUT [V] 0.8 to 5.0 1.0 to 4.5 0.8 to 5.0
Search for lineup
MCU
Series TX00 Series
Group M060 Group
Search for lineup
Piezoelectric element
Piezoelectric element

Example of piezoelectric device circuit for measurement of body weight

Example of piezoelectric device circuit for measurement of body weight
Low noise operational amplifier
Part Number
TC75S67TU
Toshiba Package Name SOT-353F (UFV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Search for lineup
MCU
Series TX00 Series
Group M060 Group
Search for lineup
Panel display system
Panel display system

Example of panel display circuit

Example of panel display circuit
MCU
Series TX00 Series
Group M060 Group
Search for lineup
Human body impedance measurement
Human body impedance measurement

Example of impedance measurement circuit for measuring body fat

Example of impedance measurement circuit for measuring body fat
TVS diode
Part Number
DF2B7AFU
Toshiba Package Name SOD-323 (USC)
VESD (Max) [kV] +/-30
IR (Max) [µA] 0.1
Rdyn (Typ.) [Ω] 0.2
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 8.5
Search for lineup
Low noise operational amplifier
Part Number
TC75S67TU
Toshiba Package Name SOT-353F (UFV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Search for lineup
Low current consumption operational amplifier
Part Number
TC75S102F
Toshiba Package Name SOT-25 (SMV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Search for lineup
Small-signal MOSFET
Part Number
SSM3K15AMFV
Toshiba Package Name SOT-723 (VESM)
VDSS (Max) [V] 30
ID (Max) [A] 0.1
RDS(ON) (Max) [Ω] @ |VGS| = 2.5 [V] 6.0
Polarity N-ch
Search for lineup
MCU
Series TX00 Series
Group M060 Group
Search for lineup

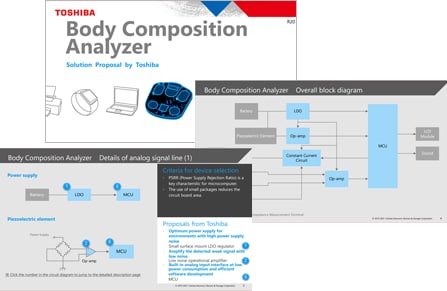

Solution Proposal
