Excellence in Power

Across automotive, AI and data centre infrastructure, renewable energy, industrial automation, and grid applications, engineers face increasing demands for efficiency, power density, thermal performance, and reliability.

Toshiba's Excellence in Power portfolio combines advanced silicon MOSFET, SiC MOSFET and power semiconductor technologies, innovative packaging solutions, and manufacturing expertise to support efficient power conversion, reduced losses, improved thermal management, and long-term system reliability.

From automotive electrification to industrial, energy and AI /Data Centre infrastructure, Toshiba helps engineers optimise performance, efficiency, and sustainability in next-generation power electronic systems.

We look forward to supporting your next design.

Your Toshiba Power Semiconductor Team

Contact us

Flyer

Youtube

Linkedin

Power Semiconductor Portfolio News

Image of XPJ1R504PB device, in small, thermally enhanced S-TOGL package

AEC-Q101 compliant 40V MOSFETs in thermally enhanced S-TOGL packages support compact, high-current switching in automotive 48V power systems.

Image of 3 different package options of Low-voltage N-Channel power Mosfets

60V and 100V N-channel MOSFETs support efficient 24V and 48V industrial power lines in PLCs, servers, inverters and servo-motor equipment.

QDPAK top-side cooled package of TW007D120E, 1200V trench-gate SiC MOSFET supports high power density and low power loss in 800V HVDC architectures

QDPAK top-side cooled package of TW007D120E, 1200V trench-gate SiC MOSFET supports high power density and low power loss in 800V HVDC architectures

Toshiba starts sampling new automotive SmartMCD with integrated MCU and gate driver for three-phase BLDC motor control

New SmartMCDTM TB9M030FG features  sensorless FOC technology for low-speed applications when used with PM-synchronous motors

New devices combine 150Mbps data rates, 125°C operation and high noise immunity for industrial control systems

Quad-channel digital isolators combine 150Mbps data rates, 125°C operation and high noise immunity for high-temperature industrial control systems

Image of next-generation photorelays tackling heat and space design challenges in advanced automated test and measurement applications

Next-generation photorelays tackling heat and space design challenges in advanced automated test and measurement applications.Integrated input resistors and compact design free up board space while ensuring reliable operation at 135°C.

Image of Arm® Cortex®-M4 microcontrollers for single-motor control applications

Mass production of compact Arm® Cortex®-M4 microcontrollers for single-motor control applications with dedicated motor control hardware, integrated security, functional safety features, and wide operating voltage range for simplified development of home appliances and industrial equipment

Image of DTMOSVI 600V super junction power MOSFETs with built-in fast-recovery diodes for high-efficiency power supply circuits

DTMOSVI 600V super junction power MOSFETs with built-in fast-recovery diodes for high-efficiency power supply circuits deliver RDS(ON) down to 0.050Ω (typ.) in a DFN8×8 package for high efficiency in space-restrained power supply circuits

Power Semiconductor Overview

An image of a silicon wafer with the headline "Power Semiconductors"

Technology Demonstrations and Product Previews

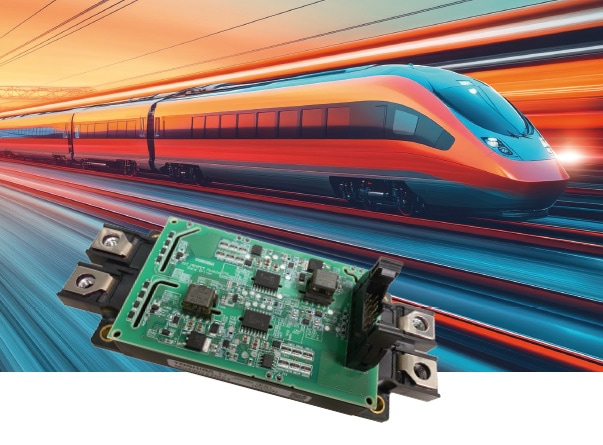

Image of a reference board. In the background your see a train

Gate Drive Circuit Solution for SiC MOSFET Module

Flyer for Gate Driver Circuit for SiC Mosfet Module

Gate Drive for SiC MOSFET Module Reference Design

The solution offers a built-in implementation of a SiC MOSFET Module. It provides an independent open-collector fault signal output of high-side and low-side. The output voltage is +20V (typ.) / -6.7V (typ.), the output current ±9.8A (max.) and the max. PWM frequency 50kHz.

TLP5231 – isolated pre-gate driver    SSM6K804R – n-ch MOSFET

TPC8132 – p-ch MOSFET   TCR1HF50B – LDO Regulator

SSM3K15AFS – n-ch MOSFET  2SC6026MFV – npn transistor





Image of single channel H-Bridge driver with integrated current monitoring

Single channel H-Bridge driver with integrated current monitoring

The H-Bridge drivers TB67H453FNG/FTG provide an extended operating voltage range, max ratings and a built-In logic regulator for ultra-low standby current. As a benefit no external capacitor is needed. Target applications are robot vacuum cleaners, home and office applications, industrial equipment and many more.

TB67H453FNG   TB67H453FTG





Automotive Thermal Management

Toshiba's SmartMCDTM enables space and system cost savings in automotive applications. The device features an integrated microcontroller with a gate driver to create an effective solution for automotive pump,  fans and more.

TB9M003FG

SmartMCD Flyer

More Demos

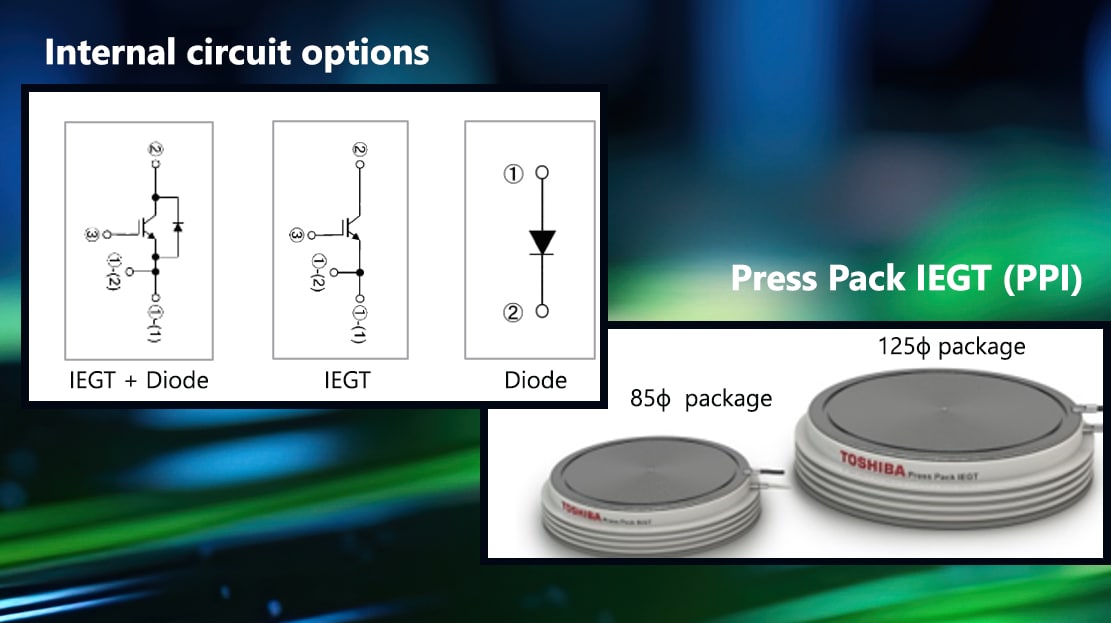

Picture show press pack and circuit schematics

Press Pack IEGT (PPI)

Applications

  • Motor drives, Transmission & Distribution, Power quality

Highlights

  • Pressure contact with improved thermal fatigue
  • Low thermal impedance due to double side cooling
  • Moisture & weather resistant due to hermetic sealing
  • Electrically shorted in failure for proper system operation

Featured products

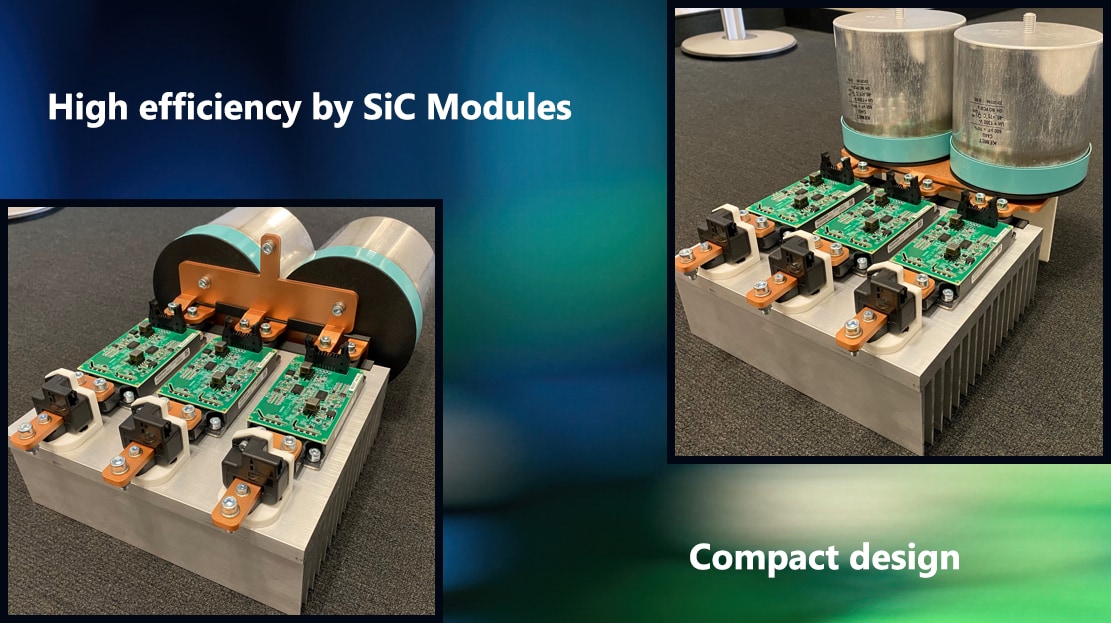

Picture show Sic Module inverters

SiC Module Inverter

Applications

  • Rail traction and Motor drive

Highlights

  • High efficiency by SiC modules
  • Compact design
  • 2-153A1A  package:  High mounting compatibility to Si IGBT module / Lower loss characteristics than Si IGBT module / Low stray inductance
  • RD237 - Gate Driver Solution for 1200V and 1700V SiC MOSFET Modules

Featured products

                1200V – 600A/400A SiC module in 2-153A1A  package

                1700V – 400A/250A SiC module in 2-153A1A  package

  • RD237 - Gate Driver Solution for 1200V and 1700V SiC MOSFET Modules

SiC Cube – Modular Multi-Level 3-Phase PFC

Applications

  • Power factor correction & AC/DC conversion

Highlights

  • High efficiency by SiC MOSFET
  • Multi-level, modular design

Featured products

  • TW045N120C – 3rd Generation SiC MOSFET
  •             Good reliability because of built-in SBD
  •             Fast switching because of low RDS(ON)*Qgd
  •             Wide VGSS rating
  • TLP5214A – Smart Gate-Driver
  •             High peak output current
  •             Wide power supply voltage range
  • TLP7820 – Isolation Amplifier
  •             High gain accurracy and bandwidth
  • TMPM4KNFYAFG – MCU
  •             160MHz Arm® Cortex®-M4 with Vector Engine

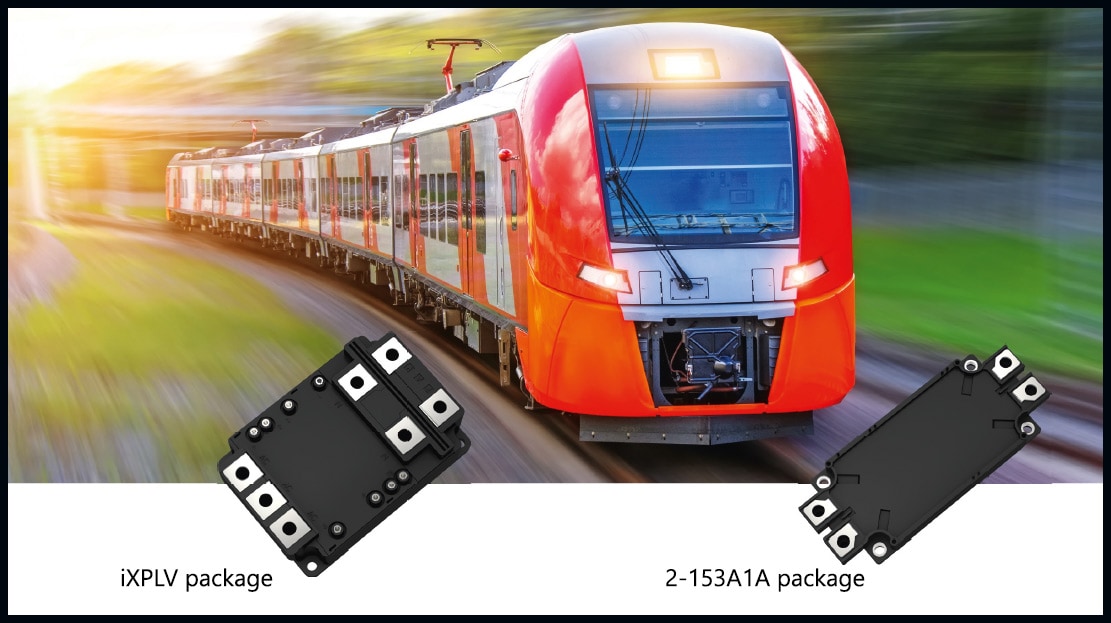

Picture shows a train with a iXPLV package and a 2-153A1A package added to it.

High Power SiC Modules

Applications

  • Rail traction and Motor drive

Highlights

  • iXPLV package (intelligent fleXible Package Low Voltage)
  •                 High reliability by using silver sintering technology
  •                 High channel temperature(Tj,max = 175°C)
  •                 Low stray inductance
  • 2-153A1A  package
  •                 High mounting compatibility to Si IGBT module
  •                 Lower loss characteristics than Si IGBT module
  •                 Low stray inductance

Featured products

  • MG600Q2YMS3        - 1200V / 600A /Package: 2-153A1A
  • MG400Q2YMS3        - 1200V /400A /Package: 2-153A1A
  • MG400V2YMS3        - 1700V / 400A /Package: 2-153A1A
  • MG250V2YMS3        - 1700V / 250A /Package: 2-153A1A
  • MG250YD2YMS        - 2200V / 250A /Package: 2-153A1A
  • MG800FXF2YMS3    - 3300V / 800A /Package: iXPLV

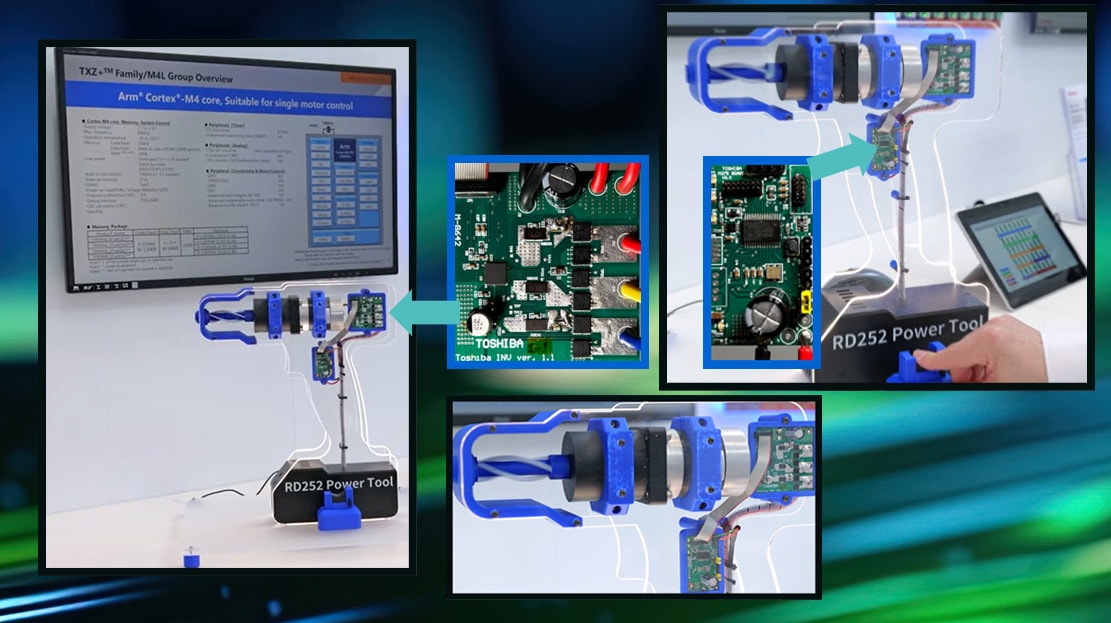

Picture shows a demo of a power tool.

Power Tool Demo

Applications

  • Power Tools
  • Gardening Tools

Highlights

  • Very compact design
  • Flexibility by interchangeable Control MCU and
  • Power Stage Boards for 12-48V battery voltages

Featured products

  • Microcontroller specialized for Motor Control
  •             Recommended usage of TXZ+™4A Series, M4K Group
  •             Arm® Cortex®-M4 with Vector Engine*
                significantly improves system performance
  • TB67Z833SFTG – Programable Gate-Driver for 3-Phase motor
  •             Serial SPI Interface to control and diagonstics
  •             Optional integrated current sense amplifier
  • MOSFETs
  •             TPH1R204PB: 40V, 1.2mΩ, low-spike, 240A
  •             TPH2R408QM: 80V, 2.43mΩ, low-spike, 120A

*1 Vector Engine is an accelerator for field oriented control mathematical operation

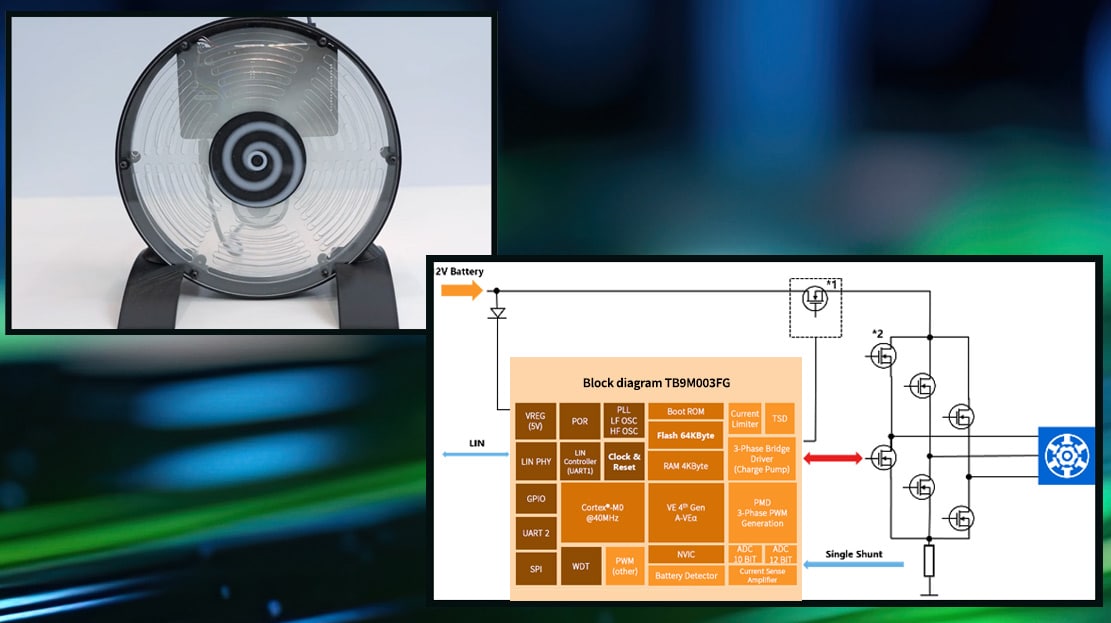

Picture shows a demo of a fan, plus block diagram.

Fan Thermal Management, using SmartMCD™

Applications

  • Fan for thermal management in eMobility applications
  • Water pump

Highlights

  • Integrated solution for MCU and pre-driver
  • Flexibility by using different external MOSFETs

Featured products

  • TB9M003FG – SmartMCD™ for BLDC motors
  •             Cortex-M0, plus Vector Engine*
  •             Integrated gate driver
  • Automotive Power MOSFETs
  •             TPHR7904PB (40V, 0.79mOhm, 5x6mm²)
  •             XPN3R804NC (40V, 3.8mOhm, 3.3x3.6mm²)
  •             XSM6K519NW (40V, ~17mOhm, 2x2mm²)
  •             SSM6K809R, U-MOSⅧ-H, 2.9×2.8mm²

*1 Vector Engine is an accelerator for field oriented control mathematical operation
