Such as AC isolation, high efficiency and miniaturization are important in designing smart plug. Toshiba provides information on a wide range of semiconductor products suitable for AC switch units, power supply units, wireless and key switch units, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 AC-DC Converter AC-DCConverter AC Inlet AC Inlet LDO LDO AC Outlet AC Outlet Key Switch Key Switch Wireless Control Wireless Control Power Supply Power Supply Mechanical Relay MechanicalRelay AC Switch AC Switch Wireless Module WirelessModule SBD SBD MCU MCU MOSFET MOSFET TVS TVS TVS TVS LDO LDO Power supply circuit Wireless and key switch input circuit AC switch circuit
Wireless and key switch input circuit

Example of wireless and key switch input circuit

AC switch circuit

Example of AC switch circuit using mechanical relay

Example of AC switch circuit using photorelay

Example of AC switch circuit using photovoltaic output photocouplers and MOSFETs

Example of AC switch circuit using triac and triac output photocouplers

Power supply circuit

Example of power supply circuit

Sub block diagram

Wireless and key switch input circuit
Wireless and key switch input circuit

Example of wireless and key switch input circuit

Example of wireless and key switch input circuit
TVS diode
Part Number
DF2B7ASL
DF2B5M4SL
DF2B6M4SL
DF2B6M4BSL
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2)
VESD (Max) [kV] +/-30 +/-20 +/-20 +/-8
IR (Max) [µA] 0.1 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.2 0.5 0.5 1.05
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 8.5 0.2 0.2 0.12
Search for lineup
AC switch circuit
AC switch circuit using mechanical relay

Example of AC switch circuit using mechanical relay

Example of AC switch circuit using mechanical relay
Schottky barrier diode
Part Number
CRS03
CRS13
Toshiba Package Name S-FLAT S-FLAT
VRRM (Max) [V] 30 60
VR (Max) [V]
CT (Typ.) [pF]
Search for lineup
Small signal MOSFET
Part Number
SSM3K36FS
SSM3K56FS
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM)
VDSS (Max) [V] 20 20
ID (Max) [A] 0.5 0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 0.66 0.235
Polarity N-ch N-ch
Search for lineup
AC switch circuit using photorelay (less than 0.3 A)

Example of AC switch circuit using photorelay

Example of AC switch circuit using photorelay
Photorelay
Part Number
TLP3549
Toshiba Package Name DIP8
BVS (Min) [Vrms] @ t = 60 [s] 2500
ION (Max) [A] 0.6
RON (Max) [Ω] 2
IFT (Max) [mA] 5
IFC (Max) [mA]
Search for lineup
AC switch circuit using photovoltaic output photocouplers and MOSFETs (around 0.3 A to 1 A)

Example of AC switch circuit using photovoltaic output photocouplers and MOSFETs

Example of AC switch circuit using photovoltaic output photocouplers and MOSFETs
Photovoltaic output photocoupler
Part Number
TLP3906
TLP3910
Toshiba Package Name 4pin SO6 SO6L
BVS (Min) [Vrms] @ t = 60 [s] 3750 5000
ISC (Min) [µA] @ IF = 10 [mA] 12 12
VOC (Min) [V] @ IF = 10 [mA] 7 14
Search for lineup
DTMOSⅣ Series MOSFET
Part Number
TK8P60W
TK16G60W
Toshiba Package Name DPAK D2PAK
VDSS (Max) [V] 600 600
ID (Max) [A] 8.0 15.8
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.5 0.19
Polarity N-ch N-ch
Search for lineup
AC switch circuit using triac and triac output photocouplers (1 A or more)

Example of AC switch circuit using triac and triac output photocouplers

Example of AC switch circuit using triac and triac output photocouplers
Triac output photocoupler
Part Number
TLP265J
TLP266J
TLP267J
TLP268J
Toshiba Package Name 4pin SO6 4pin SO6 4pin SO6 4pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 3750 3750 3750 3750
Topr [°C] -40 to 100 -40 to 100 -40 to 100 -40 to 100
Search for lineup
Power supply circuit

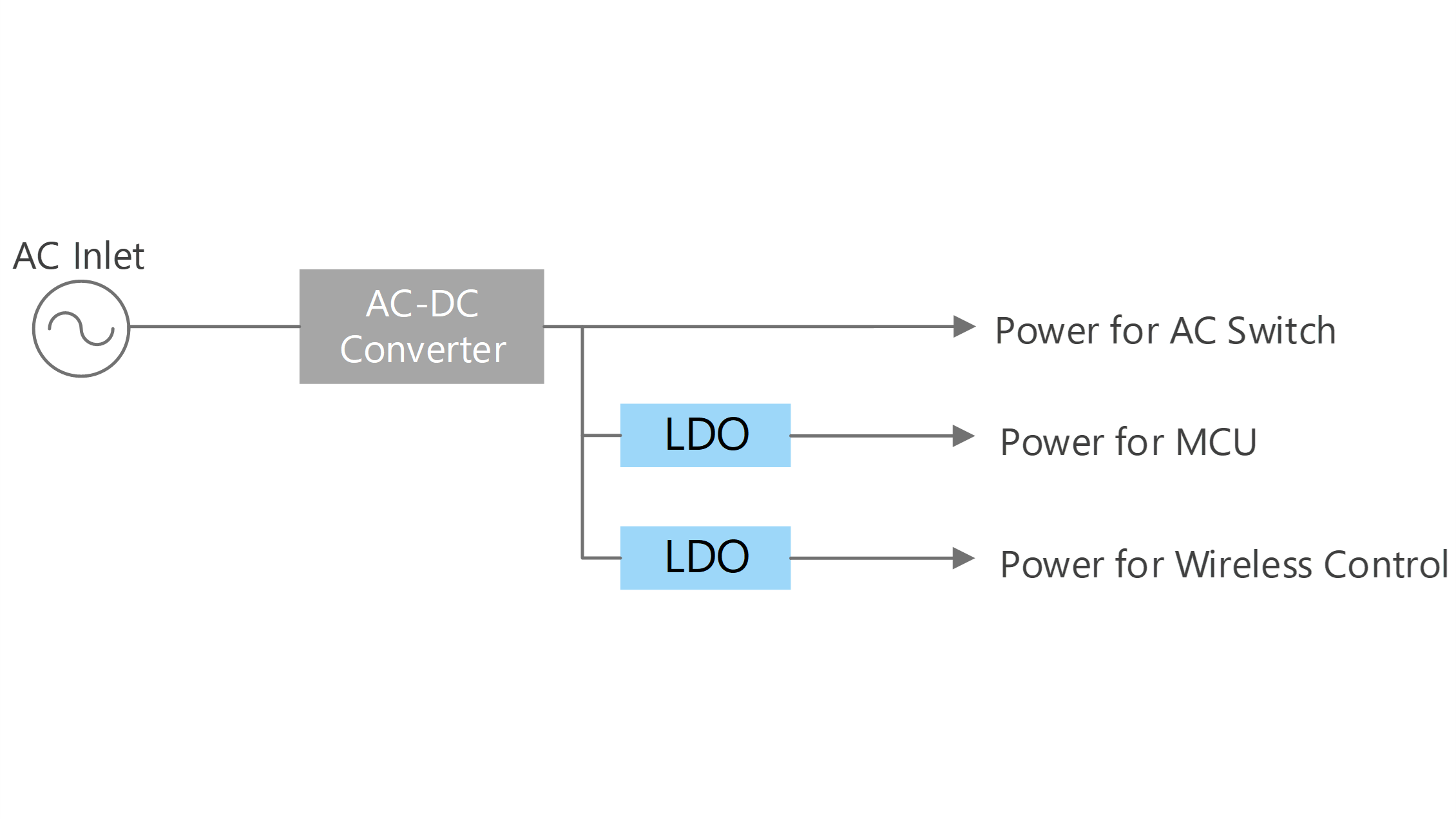

Power supply circuit

Example of power supply circuit

Example of power supply circuit
Small surface mount LDO regulator(1)
Part Number
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Search for lineup
Small surface mount LDO regulator(2)
Part Number
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
Search for lineup

Solution Proposal

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Solution Proposal
SolutionProposal_SmartPlug / English (PDF:1.0MB)
SolutionProposal_SmartPlug / Japanese (PDF:1.3MB)

Reference Design

This is a picture of the DFN4D package.
TCR3EMxxA / 3DMxxA / 3LMxxA Series LDO Regulators With 300mA Output in Small DFN4D Package for Power Supply Circuit Applications
The lineup includes three series of small package LDO regulators that are ideal for mobile devices, etc. becuase of their features (standard type, low dropout voltage type, and low current consumption type). We provide the description of features, design points, and usage methods of each series.
Details
Power supply circuit example of LDO regulator TCR3UG series application for power supply of IoT devices.
LDO Regulator TCR3UG Series Application for Power Supply of IoT Devices
This reference design provides document with low consumption current, PSRR, and dynamic response.The LDO has small package, low consumed power, and fast load transient response.
Details
Power supply circuit example of LDO regulator TCR15AG (fixed output voltage type) application & circuit.
LDO Regulator TCR15AG (fixed output voltage type) Application & Circuit
This reference design provides document with PSRR, dynamic response and controlling output voltage.The LDO has very small package and fixed output voltage for consumer application.
Details
Power supply circuit example of LDO regulator TCR15AGADJ application & circuit.
LDO Regulator TCR15AGADJ Application & Circuit
This reference design provides document with PSRR, dynamic response and controlling output voltage. The LDO has very small package and adjustable output for consumer application.
Details

Documents

Please see the following pages for other documents.
