Battery Management System for Automotive

Overall block diagram

Battery Management System for Automotive

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

Charging circuit (Prevention of sticking/Detection of mechanical relay sticking)

Charging circuit (Prevention of sticking)

Example of a charging circuit in which a semiconductor switch is configured using a photovoltaic output photocoupler

Charging circuit (Detection of mechanical relay sticking)

Example of a charging circuit in which a photorelay is used to configure a mechanical relay sticking detection circuit

Charging circuit (Ground fault sensing circuit)

Example of a charging circuit in which a ground fault sensing circuit is configured using a photorelay

Passive cell voltage regulation

Passive cell voltage regulation (Use of PMIC)

Example of passive cell voltage regulation circuit using PMIC

Passive cell voltage regulation (Not use of PMIC)

Example of passive cell voltage regulation circuit without PMIC

Battery monitoring circuit

Example of battery total voltage monitoring circuit using photorelay and IC output photocoupler

Adding redundancy to communications

Example of communication redundancy using a photocoupler

Battery shutdown circuit

Example of a battery shutdown circuit using a mechanical relay

Sub block diagram

Charging circuit (Prevention of sticking/Detection of mechanical relay sticking)

Charging circuit (Prevention of sticking)

Example of a charging circuit in which a semiconductor switch is configured using a photovoltaic output photocoupler

Photovoltaic output photocoupler

Photovoltaic output photocoupler

Part Number	TLX9905	TLX9906
Toshiba Package Name	4pin SO6	4pin SO6
BV_S (Min) [V_rms] @ t = 60 [s]	3750	3750
I_SC (Min) [µA] @ I_F = 10 [mA]	12	12
V_OC (Min) [V] @ I_F = 10 [mA]	7	7

Search for lineup

Charging circuit (Detection of mechanical relay sticking)

Example of a charging circuit in which a photorelay is used to configure a mechanical relay sticking detection circuit

Photorelay

Photorelay

Part Number	TLX9175J	TLX9160T
Toshiba Package Name	4pin SO6	SO16L-T
BV_S (Min) [V_rms] @ t = 60 [s]	3750	5000
I_ON (Max) [A]		0.05
R_ON (Max) [Ω]		250
I_FT (Max) [mA]	3	3
I_FC (Max) [mA]

Search for lineup

Charging circuit (Ground fault sensing circuit)

Example of a charging circuit in which a ground fault sensing circuit is configured using a photorelay

Photorelay

Photorelay

Part Number	TLX9175J	TLX9160T
Toshiba Package Name	4pin SO6	SO16L-T
BV_S (Min) [V_rms] @ t = 60 [s]	3750	5000
I_ON (Max) [A]		0.05
R_ON (Max) [Ω]		250
I_FT (Max) [mA]	3	3
I_FC (Max) [mA]

Search for lineup

Passive cell voltage regulation

Passive cell voltage regulation (Use of PMIC)

Example of passive cell voltage regulation circuit using PMIC

General purpose small signal MOSFET

General purpose small signal MOSFET

Part Number	SSM3K7002KF	SSM3J168F	SSM3J66MFV
Toshiba Package Name	SOT-346 (S-Mini)	SOT-346 (S-Mini)	SOT-723 (VESM)
V_DSS (Max) [V]	60	-60	-20
I_D (Max) [A]	0.4	-0.4	-0.8
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	1.75	1.9	0.39
Polarity	N-ch	P-ch	P-ch

Search for lineup

Passive cell voltage regulation (Not use of PMIC)

Example of passive cell voltage regulation circuit without PMIC

Photovoltaic output photocoupler
General purpose small signal MOSFET

Photovoltaic output photocoupler

Part Number	TLX9905	TLX9906
Toshiba Package Name	4pin SO6	4pin SO6
BV_S (Min) [V_rms] @ t = 60 [s]	3750	3750
I_SC (Min) [µA] @ I_F = 10 [mA]	12	12
V_OC (Min) [V] @ I_F = 10 [mA]	7	7

Search for lineup

General purpose small signal MOSFET

Part Number	SSM3K7002KF	SSM3J168F	SSM3J66MFV
Toshiba Package Name	SOT-346 (S-Mini)	SOT-346 (S-Mini)	SOT-723 (VESM)
V_DSS (Max) [V]	60	-60	-20
I_D (Max) [A]	0.4	-0.4	-0.8
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	1.75	1.9	0.39
Polarity	N-ch	P-ch	P-ch

Search for lineup

Battery monitoring circuit

Example of battery total voltage monitoring circuit using photorelay and IC output photocoupler

Photorelay
IC output photocoupler

Photorelay

Part Number	TLX9175J	TLX9160T
Toshiba Package Name	4pin SO6	SO16L-T
BV_S (Min) [V_rms] @ t = 60 [s]	3750	5000
I_ON (Max) [A]		0.05
R_ON (Max) [Ω]		250
I_FT (Max) [mA]	3	3
I_FC (Max) [mA]

Search for lineup

IC output photocoupler

Part Number	TLX9304	TLX9309	TLX9310	TLX9378	TLX9376
Toshiba Package Name	5pin SO6	5pin SO6	5pin SO6	5pin SO6	5pin SO6
BV_S (Min) [V_rms] @ t = 60 [s]	3750	3750	3750	3750	3750
V_CC / V_DD (Min) [V]	4.5			4.5	4.5
V_CC / V_DD (Max) [V]	20	30		5.5	5.5
I_CC / I_DD (Max) [mA]
Output Interface

Search for lineup

Adding redundancy to communications

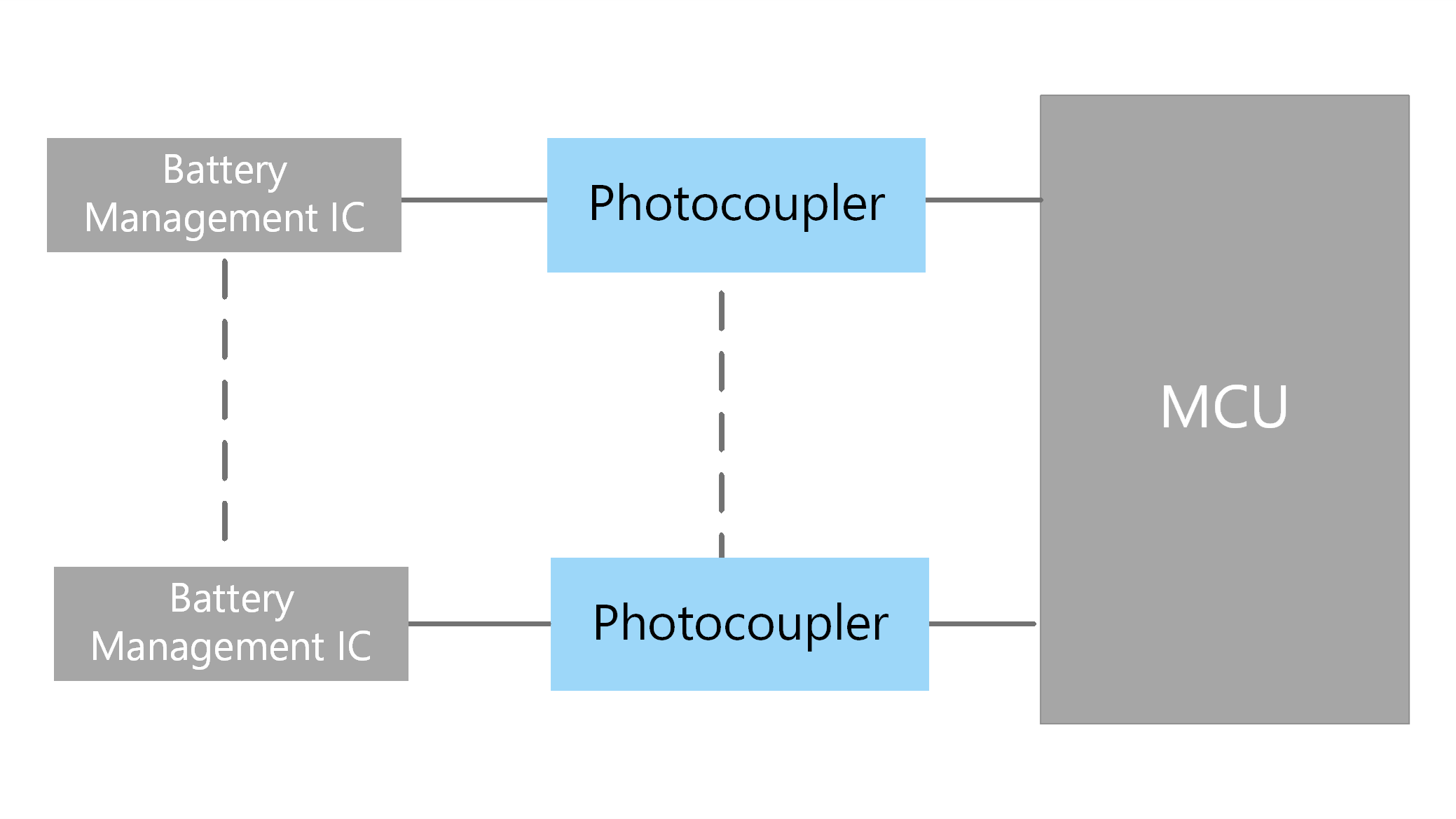

Example of communication redundancy using a photocoupler

Transistor output photocoupler

Transistor output photocoupler

Part Number	TLX9291A	TLX9185A	TLX9000	TLX9300	TLX9188
Toshiba Package Name	SO4	4pin SO6	SO4	4pin SO6	4pin SO6
BV_S (Min) [V_rms] @ t = 60 [s]	3750	3750	3750	3750	3750
V_CEO (Max) [V]	80	80	40	40	200
T_opr [°C]	-40 to 125	-40 to 125	-40 to 125	-40 to 125	-40 to 125

Search for lineup

Battery shutdown circuit

Example of a battery shutdown circuit using a mechanical relay

MOSFET with a built-in active clamp circuit
Low side switch / High side switch (up to 1 A)
Low side switch / High side switch (1 to 5 A)
General purpose small signal bipolar transistor
Small signal bias resistor built-in transistor (BRT)
TVS diode (for CAN communication)

MOSFET with a built-in active clamp circuit

Part Number	SSM3K347R	SSM3K337R
Toshiba Package Name	SOT-23F	SOT-23F
V_DSS (Max) [V]	38	38
I_D (Max) [A]	2.0	2.0
R_DS(ON) (Max) [Ω] @ \|V_GS\| = 4.5 [V]	0.41	0.176
Polarity	N-ch + Active Clamp Zener	N-ch + Active Clamp Zener

Search for lineup

Low side switch / High side switch (up to 1 A)

Part Number	TPD1054F	TPD1052F
Toshiba Package name	PS-8	PS-8
V_BB (Max) [V]
V_CC (Max) [V]
I_O (Max) [A]	1.0	0.8

Search for lineup

Low side switch / High side switch (1 to 5 A)

Part Number	TPD1058FA	TPD1055FA
Toshiba Package name	WSON10	WSON10
V_BB (Max) [V]
V_CC (Max) [V]
I_O (Max) [A]	6.0	3.0

Search for lineup

General purpose small signal bipolar transistor

Part Number	2SA1832	2SC4738	2SC4116	2SA1586	2SC2712	2SA1162
Toshiba Package Name	SOT-416 (SSM)	SOT-416 (SSM)	SOT-323 (USM)	SOT-323 (USM)	SOT-346 (S-Mini)	SOT-346 (S-Mini)
V_CEO (Max) [V]	-50	50	50	-50	50	-50
I_C (Max) [A]	-0.15	0.15	0.15	-0.15	0.15	-0.15
Polarity	PNP	NPN	NPN	PNP	NPN	PNP

Search for lineup

Small signal bias resistor built-in transistor (BRT)

Part Number	RN1907FE	RN2907FE	RN1901	RN2901
Toshiba Package Name	SOT-563 (ES6)	SOT-563 (ES6)	SOT-363 (US6)	SOT-363 (US6)
V_CEO (Q1) (Max) [V]	50	-50	50	-50
V_CEO (Q2) (Max) [V]	50	-50	50	-50
I_C (Q1) (Max) [A]	0.1	-0.1	0.1	-0.1
I_C (Q2) (Max) [A]	0.1	-0.1	0.1	-0.1
Polarity (Q1)	NPN	PNP	NPN	PNP
Polarity (Q2)	NPN	PNP	NPN	PNP

Search for lineup

TVS diode (for CAN communication)

Part Number	DF3D18FU	DF3D29FU	DF3D36FU
Toshiba Package Name	SOT-323 (USM)	SOT-323 (USM)	SOT-323 (USM)
V_ESD (Max) [kV]	+/-30	+/-25	+/-20
I_R (Max) [µA]	0.1	0.1	0.1
R_dyn (Typ.) [Ω]	0.8	1.1	1.5
C_T (Typ.) [pF] @ V_R = 0 [V], f = 1 [MHz]	9	9	6.5

Search for lineup
