Battery Management System for Automotive

Battery Management System for Automotive

Such as reduction of power consumption and miniaturization are important in battery management system. Toshiba provides information on a wide range of semiconductor products suitable for charging circuit, cell balancing circuit, battery monitoring circuit, etc., along with circuit configuration examples.

總方塊圖

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 DC-DC Converter DC-DC Converter ADC ADC MCU MCU CAN Line CAN Line IC output photocoupler IC output photocoupler High Side () High Side (＋) Low Side (ー) Low Side (ー) Sticking detection Sticking detection Pre charge switch Pre charge switch High side switch High side switch Low side switch Low side switch Sticking detection Sticking detection Sticking detection Sticking detection Isolation Isolation Isolation Isolation DC-DC Converter DC-DC Converter GND fault sensing GND fault sensing GND fault sensing GND fault sensing Wire (H) W Battery Management IC BatteryManagementIC Battery Management IC BatteryManagementIC Charging circuit (Prevention of sticking/Detection of mechanical relay sticking) Battery monitoring circuit Charging circuit (Ground fault sensing circuit) Charging circuit (Ground fault sensing circuit) Passive cell voltage regulation Adding redundancy to communications Battery shutdown circuit
Charging circuit (Prevention of sticking/Detection of mechanical relay sticking)

Example of a charging circuit in which a semiconductor switch is configured using a photovoltaic output photocoupler

Example of a charging circuit in which a photorelay is used to configure a mechanical relay sticking detection circuit

Charging circuit (Ground fault sensing circuit)

Example of a charging circuit in which a ground fault sensing circuit is configured using a photorelay

Passive cell voltage regulation

Example of passive cell voltage regulation circuit using PMIC

Example of passive cell voltage regulation circuit without PMIC

Battery monitoring circuit

Example of battery total voltage monitoring circuit using photorelay and IC output photocoupler

Adding redundancy to communications

Example of communication redundancy using a photocoupler

Battery shutdown circuit

Example of a battery shutdown circuit using a mechanical relay

子方塊圖

Charging circuit (Prevention of sticking/Detection of mechanical relay sticking)
Charging circuit (Prevention of sticking)

Example of a charging circuit in which a semiconductor switch is configured using a photovoltaic output photocoupler

Example of a charging circuit in which a semiconductor switch is configured using a photovoltaic output photocoupler
Photovoltaic output photocoupler
器件型號
TLX9905
TLX9906
Toshiba Package Name 4pin SO6 4pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 3750 3750
ISC (Min) [µA] @ IF = 10 [mA] 12 12
VOC (Min) [V] @ IF = 10 [mA] 7 7
搜尋產品線
Charging circuit (Detection of mechanical relay sticking)

Example of a charging circuit in which a photorelay is used to configure a mechanical relay sticking detection circuit

Example of a charging circuit in which a photorelay is used to configure a mechanical relay sticking detection circuit
Photorelay
器件型號
TLX9175J
TLX9160T
Toshiba Package Name 4pin SO6 SO16L-T
BVS (Min) [Vrms] @ t = 60 [s] 3750 5000
ION (Max) [A]   0.05
RON (Max) [Ω]   250
IFT (Max) [mA] 3 3
IFC (Max) [mA]
搜尋產品線
Charging circuit (Ground fault sensing circuit)
Charging circuit (Ground fault sensing circuit)

Example of a charging circuit in which a ground fault sensing circuit is configured using a photorelay

Example of a charging circuit in which a ground fault sensing circuit is configured using a photorelay
Photorelay
器件型號
TLX9175J
TLX9160T
Toshiba Package Name 4pin SO6 SO16L-T
BVS (Min) [Vrms] @ t = 60 [s] 3750 5000
ION (Max) [A]   0.05
RON (Max) [Ω]   250
IFT (Max) [mA] 3 3
IFC (Max) [mA]
搜尋產品線
Passive cell voltage regulation
Passive cell voltage regulation (Use of PMIC)

Example of passive cell voltage regulation circuit using PMIC

Example of passive cell voltage regulation circuit using PMIC
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
Passive cell voltage regulation (Not use of PMIC)

Example of passive cell voltage regulation circuit without PMIC

Example of passive cell voltage regulation circuit without PMIC
Photovoltaic output photocoupler
器件型號
TLX9905
TLX9906
Toshiba Package Name 4pin SO6 4pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 3750 3750
ISC (Min) [µA] @ IF = 10 [mA] 12 12
VOC (Min) [V] @ IF = 10 [mA] 7 7
搜尋產品線
General purpose small signal MOSFET
器件型號
SSM3K7002KF
SSM3J168F
SSM3J66MFV
Toshiba Package Name SOT-346 (S-Mini) SOT-346 (S-Mini) SOT-723 (VESM)
VDSS (Max) [V] 60 -60 -20
ID (Max) [A] 0.4 -0.4 -0.8
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 1.75 1.9 0.39
Polarity N-ch P-ch P-ch
搜尋產品線
Battery monitoring circuit
Battery monitoring circuit

Example of battery total voltage monitoring circuit using photorelay and IC output photocoupler

Example of battery total voltage monitoring circuit using photorelay and IC output photocoupler
Photorelay
器件型號
TLX9175J
TLX9160T
Toshiba Package Name 4pin SO6 SO16L-T
BVS (Min) [Vrms] @ t = 60 [s] 3750 5000
ION (Max) [A]   0.05
RON (Max) [Ω]   250
IFT (Max) [mA] 3 3
IFC (Max) [mA]
搜尋產品線
IC output photocoupler
器件型號
TLX9304
TLX9309
TLX9310
TLX9378
TLX9376
Toshiba Package Name 5pin SO6 5pin SO6 5pin SO6 5pin SO6 5pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 3750 3750 3750 3750 3750
VCC / VDD (Min) [V] 4.5     4.5 4.5
VCC / VDD (Max) [V] 20 30   5.5 5.5
ICC / IDD (Max) [mA]
Output Interface
搜尋產品線
Adding redundancy to communications
Adding redundancy to communications

Example of communication redundancy using a photocoupler

Example of communication redundancy using a photocoupler
Transistor output photocoupler
器件型號
TLX9291A
TLX9185A
TLX9000
TLX9300
TLX9188
Toshiba Package Name SO4 4pin SO6 SO4 4pin SO6 4pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 3750 3750 3750 3750 3750
VCEO (Max) [V] 80 80 40 40 200
Topr [°C] -40 to 125 -40 to 125 -40 to 125 -40 to 125 -40 to 125
搜尋產品線
Battery shutdown circuit
Battery shutdown circuit

Example of a battery shutdown circuit using a mechanical relay

Example of a battery shutdown circuit using a mechanical relay
MOSFET with a built-in active clamp circuit
器件型號
SSM3K347R
SSM3K337R
Toshiba Package Name SOT-23F SOT-23F
VDSS (Max) [V] 38 38
ID (Max) [A] 2.0 2.0
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 0.41 0.176
Polarity N-ch + Active Clamp Zener N-ch + Active Clamp Zener
搜尋產品線
Low side switch / High side switch (up to 1 A)
器件型號
TPD1044F
TPD1054F
TPD1052F
Toshiba Package name PS-8 PS-8 PS-8
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A]   1.0 0.8
搜尋產品線
Low side switch / High side switch (1 to 5 A)
器件型號
TPD1058FA
TPD1055FA
Toshiba Package name WSON10 WSON10
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] 6.0 3.0
搜尋產品線
General purpose small signal bipolar transistor
器件型號
2SA1832
2SC4738
2SC4116
2SA1586
2SC2712
2SA1162
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-323 (USM) SOT-323 (USM) SOT-346 (S-Mini) SOT-346 (S-Mini)
VCEO (Max) [V] -50 50 50 -50 50 -50
IC (Max) [A] -0.15 0.15 0.15 -0.15 0.15 -0.15
Polarity PNP NPN NPN PNP NPN PNP
搜尋產品線
Small signal bias resistor built-in transistor (BRT)
器件型號
RN1907FE
RN2907FE
RN1901
RN2901
Toshiba Package Name SOT-563 (ES6) SOT-563 (ES6) SOT-363 (US6) SOT-363 (US6)
VCEO (Q1) (Max) [V] 50 -50 50 -50
VCEO (Q2) (Max) [V] 50 -50 50 -50
IC (Q1) (Max) [A] 0.1 -0.1 0.1 -0.1
IC (Q2) (Max) [A] 0.1 -0.1 0.1 -0.1
Polarity (Q1) NPN PNP NPN PNP
Polarity (Q2) NPN PNP NPN PNP
搜尋產品線
TVS diode (for CAN communication)
器件型號
DF3D18FU
DF3D29FU
DF3D36FU
Toshiba Package Name SOT-323 (USM) SOT-323 (USM) SOT-323 (USM)
VESD (Max) [kV] +/-30 +/-25 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.8 1.1 1.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 9 9 6.5
搜尋產品線

解決方案

這些文件說明推薦的半導體產品的要點及其特徵，方便產品選擇。

解決方案

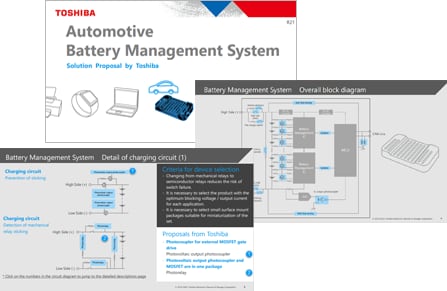

SolutionProposal_Battery Management System for Automotive / English (PDF:1.7MB)
SolutionProposal_Battery Management System for Automotive / Japanese (PDF:2.2MB)
