Such as low power consumption and miniaturization are important in designing server. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, motor driving unit, over temperature monitoring unit, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

HDD / SSD HDD / SSD System Power (Power Supply Unit) System Power(Power Supply Unit) DIMM/CPU/SMC/PCH DIMM/CPU/SMC/PCH System Management Controller System Management Controller Platform Controller Hub Platform Controller Hub I/O (SAS/SATA) I/O(SAS/SATA) Environment Sensor - Pressure - Humidity - Acceleration Environment Sensor- Pressure- Humidity- Acceleration System Monitoring - Current System Monitoring- Current Backplane Backplane DIMM DIMM DIMM DIMM CPU CPU CPU CPU AC Input ACInput Fan Fan Over Temperature Detection IC Over Temperature Detection IC HDD / SSD HDD / SSD HDD / SSD HDD / SSD Data Line Data Line Power Line Power Line DC-DC converter circuit/AC-DC converter circuit Peripheral interface circuits Over temperature monitoring circuit Fan drive circuit Power line circuits for storage
DC-DC converter circuit/AC-DC converter circuit

Example of half-bridge type AC-DC converter circuit

Example of AC-DC converter circuit using interleaved PFC

Example of AC-DC converter circuit using bridgeless PFC

Example of full-bridge type DC-DC converter circuit

Example of half-bridge type DC-DC converter circuit

Peripheral interface circuits

Examples of peripheral interface signal line protection circuits

Fan drive circuit

Example of fan motor drive circuit

Over temperature monitoring circuit

Example of multi-point over temperature monitoring circuit

Power line to storage devices

Example of power line protection circuit from controller hub to strage devices

Sub block diagram

DC-DC converter circuit/AC-DC converter circuit
AC-DC converter for 48 V system

Example of half-bridge type AC-DC converter circuit

Example of half-bridge type AC-DC converter circuit
U-MOS Series MOSFET
Part Number
TPH2R408QM
TPH9R00CQ5
TPHR6503PL
TPH2R408QM
TPH3R10AQM
Toshiba Package Name SOP Advance SOP Advance / SOP Advance(N) SOP Advance SOP Advance SOP Advance(N)
VDSS (Max) [V] 80 150 30 80 100
ID (Max) [A] 120 64 393 120 120
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00243 0.009 0.00065 0.00243 0.0031
Polarity N-ch N-ch N-ch N-ch N-ch
Search for lineup
IC output photocoupler for high speed communication
Part Number
TLP2767
TLP2370
Toshiba Package Name SO6L 5pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750
VCC / VDD (Min) [V] 2.7 2.7
VCC / VDD (Max) [V] 5.5 5.5
ICC / IDD (Max) [mA] 2.5 0.4
Output Interface totem-pole(INV) totem-pole(BUF)
Search for lineup
DTMOS Series MOSFET(1)
Part Number
TK040N65Z
TK040Z65Z
TK090A65Z
TK099V65Z
TK090U65Z
Toshiba Package Name TO-247 TO-247-4L TO-220SIS DFN 8×8 TOLL
VDSS (Max) [V] 650 650 650 650 650
ID (Max) [A] 57 57 30 30 30
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.04 0.04 0.09 0.099 0.09
Polarity N-ch N-ch N-ch N-ch N-ch
Search for lineup
DTMOS Series MOSFET(2)
Part Number
TK110N65Z
TK110Z65Z
TK110A65Z
TK125V65Z
TK110U65Z
TK155U65Z
Toshiba Package Name TO-247 TO-247-4L TO-220SIS DFN 8×8 TOLL TOLL
VDSS (Max) [V] 650 650 650 650 650 650
ID (Max) [A] 24 24 24 24 24 18
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.11 0.11 0.11 0.125 0.11 0.155
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
SiC MOSFET
Part Number
TW015N65C
TW027N65C
TW048N65C
TW015Z65C
TW027Z65C
TW048Z65C
Toshiba Package Name TO-247 TO-247 TO-247 TO-247-4L(X) TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 650 650 650 650 650
ID (Max) [A] 100 58 40 100 58 40
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.021 0.037 0.065 0.022 0.038 0.069
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
SiC Schottky barrier diode
Part Number
TRS12A65F
TRS24N65FB
TRS2E65H
TRS12E65H
TRS4V65H
TRS12V65H
Toshiba Package Name TO-220F-2L TO-247 TO-220-2L TO-220-2L DFN 8×8 DFN 8×8
IF(DC) (Max) [A] 12 24 2 12 4 12
VRRM (Max) [V] 650 650 650 650 650 650
VF (Max) [V] 1.6 1.6 1.35 1.35 1.35 1.35
IR (Max) [µA] @ VRRM (Max) 60 60 40 120 55 120
Search for lineup
AC-DC converter for 12 V system (interleaved PFC) (1.6 kW power supply (VIN(AC) = 90 to 264 V, VOUT = 12.0 V, IOUT = 66.7 A / 133 A))

Example of AC-DC converter circuit using interleaved PFC

Example of AC-DC converter circuit using interleaved PFC
DTMOS Series MOSFET (1)
Part Number
TK040N65Z
TK040Z65Z
TK090A65Z
TK099V65Z
TK090U65Z
Toshiba Package Name TO-247 TO-247-4L TO-220SIS DFN 8×8 TOLL
VDSS (Max) [V] 650 650 650 650 650
ID (Max) [A] 57 57 30 30 30
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.04 0.04 0.09 0.099 0.09
Polarity N-ch N-ch N-ch N-ch N-ch
Search for lineup
DTMOS Series MOSFET (2)
Part Number
TK110N65Z
TK110Z65Z
TK110A65Z
TK125V65Z
TK110U65Z
TK155U65Z
Toshiba Package Name TO-247 TO-247-4L TO-220SIS DFN 8×8 TOLL TOLL
VDSS (Max) [V] 650 650 650 650 650 650
ID (Max) [A] 24 24 24 24 24 18
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.11 0.11 0.11 0.125 0.11 0.155
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
SiC MOSFET
Part Number
TW015N65C
TW027N65C
TW048N65C
TW015Z65C
TW027Z65C
TW048Z65C
Toshiba Package Name TO-247 TO-247 TO-247 TO-247-4L(X) TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 650 650 650 650 650
ID (Max) [A] 100 58 40 100 58 40
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.021 0.037 0.065 0.022 0.038 0.069
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
SiC Schottky barrier diode
Part Number
TRS12A65F
TRS24N65FB
TRS2E65H
TRS12E65H
TRS4V65H
TRS12V65H
Toshiba Package Name TO-220F-2L TO-247 TO-220-2L TO-220-2L DFN 8×8 DFN 8×8
IF(DC) (Max) [A] 12 24 2 12 4 12
VRRM (Max) [V] 650 650 650 650 650 650
VF (Max) [V] 1.6 1.6 1.35 1.35 1.35 1.35
IR (Max) [µA] @ VRRM (Max) 60 60 40 120 55 120
Search for lineup
IC output photocoupler for high speed communication
Part Number
TLP2767
TLP2370
Toshiba Package Name SO6L 5pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750
VCC / VDD (Min) [V] 2.7 2.7
VCC / VDD (Max) [V] 5.5 5.5
ICC / IDD (Max) [mA] 2.5 0.4
Output Interface totem-pole(INV) totem-pole(BUF)
Search for lineup
U-MOS Series MOSFET (1)
Part Number
TPHR8504PL
TPH1R306PL
TPH2R408QM
TPH3R10AQM
Toshiba Package Name SOP Advance SOP Advance SOP Advance SOP Advance(N)
VDSS (Max) [V] 40 60 80 100
ID (Max) [A] 340 260 120 120
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00085 0.00134 0.00243 0.0031
Polarity N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series MOSFET (2)
Part Number
TPHR6503PL
TPH2R408QM
TPH3R10AQM
Toshiba Package Name SOP Advance SOP Advance SOP Advance(N)
VDSS (Max) [V] 30 80 100
ID (Max) [A] 393 120 120
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00065 0.00243 0.0031
Polarity N-ch N-ch N-ch
Search for lineup
AC-DC converter for 12 V system (bridgeless PFC) (1.6 kW power supply (VIN(AC) = 90 to 264 V, VOUT = 12.0 V, IOUT = 66.7 A / 133 A))

Example of AC-DC converter circuit using bridgeless PFC

Example of AC-DC converter circuit using bridgeless PFC
DTMOS Series MOSFET (1)
Part Number
TK040N65Z
TK040Z65Z
TK090A65Z
TK099V65Z
TK090U65Z
Toshiba Package Name TO-247 TO-247-4L TO-220SIS DFN 8×8 TOLL
VDSS (Max) [V] 650 650 650 650 650
ID (Max) [A] 57 57 30 30 30
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.04 0.04 0.09 0.099 0.09
Polarity N-ch N-ch N-ch N-ch N-ch
Search for lineup
DTMOS Series MOSFET (2)
Part Number
TK110N65Z
TK110Z65Z
TK110A65Z
TK125V65Z
TK110U65Z
TK155U65Z
Toshiba Package Name TO-247 TO-247-4L TO-220SIS DFN 8×8 TOLL TOLL
VDSS (Max) [V] 650 650 650 650 650 650
ID (Max) [A] 24 24 24 24 24 18
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.11 0.11 0.11 0.125 0.11 0.155
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
SiC MOSFET
Part Number
TW015N65C
TW027N65C
TW048N65C
TW015Z65C
TW027Z65C
TW048Z65C
Toshiba Package Name TO-247 TO-247 TO-247 TO-247-4L(X) TO-247-4L(X) TO-247-4L(X)
VDSS (Max) [V] 650 650 650 650 650 650
ID (Max) [A] 100 58 40 100 58 40
RDS(ON) (Max) [Ω] @ |VGS| = 18.0 [V] 0.021 0.037 0.065 0.022 0.038 0.069
Polarity N-ch N-ch N-ch N-ch N-ch N-ch
Search for lineup
SiC Schottky barrier diode
Part Number
TRS12A65F
TRS24N65FB
TRS2E65H
TRS12E65H
TRS4V65H
TRS12V65H
Toshiba Package Name TO-220F-2L TO-247 TO-220-2L TO-220-2L DFN 8×8 DFN 8×8
IF(DC) (Max) [A] 12 24 2 12 4 12
VRRM (Max) [V] 650 650 650 650 650 650
VF (Max) [V] 1.6 1.6 1.35 1.35 1.35 1.35
IR (Max) [µA] @ VRRM (Max) 60 60 40 120 55 120
Search for lineup
IC output photocoupler for high speed communication
Part Number
TLP2767
TLP2370
Toshiba Package Name SO6L 5pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750
VCC / VDD (Min) [V] 2.7 2.7
VCC / VDD (Max) [V] 5.5 5.5
ICC / IDD (Max) [mA] 2.5 0.4
Output Interface totem-pole(INV) totem-pole(BUF)
Search for lineup
U-MOS Series MOSFET (1)
Part Number
TPHR8504PL
TPH1R306PL
TPH2R408QM
TPH3R10AQM
Toshiba Package Name SOP Advance SOP Advance SOP Advance SOP Advance(N)
VDSS (Max) [V] 40 60 80 100
ID (Max) [A] 340 260 120 120
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00085 0.00134 0.00243 0.0031
Polarity N-ch N-ch N-ch N-ch
Search for lineup
U-MOS Series MOSFET (2)
Part Number
TPHR6503PL
TPH2R408QM
TPH3R10AQM
Toshiba Package Name SOP Advance SOP Advance SOP Advance(N)
VDSS (Max) [V] 30 80 100
ID (Max) [A] 393 120 120
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00065 0.00243 0.0031
Polarity N-ch N-ch N-ch
Search for lineup
DC-DC converter for 48 V system (300 W isolated DC-DC converter power supply (VIN(DC) = 36 to 75 V, VOUT = 12.0 V, IOUT = 25 A))

Example of full-bridge type DC-DC converter circuit

Example of full-bridge type DC-DC converter circuit
U-MOS Series MOSFET (1)
Part Number
TPH9R00CQH
TPN12008QM
TPN1200APL
Toshiba Package Name SOP Advance / SOP Advance(N) TSON Advance TSON Advance
VDSS (Max) [V] 150 80 100
ID (Max) [A] 64 26 66
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.009 0.0123 0.0115
Polarity N-ch N-ch N-ch
Search for lineup
U-MOS Series MOSFET (2)
Part Number
TPHR8504PL
TPH1R306PL
TPH2R408QM
TPH3R10AQM
Toshiba Package Name SOP Advance SOP Advance SOP Advance SOP Advance(N)
VDSS (Max) [V] 40 60 80 100
ID (Max) [A] 340 260 120 120
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00085 0.00134 0.00243 0.0031
Polarity N-ch N-ch N-ch N-ch
Search for lineup
Transistor output photocoupler
Part Number
TLP383
TLP291(SE
Toshiba Package Name 4pin SO6L SO4
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750
VCEO (Max) [V] 80 80
Topr [°C] -55 to 125 -55 to 110
Search for lineup
IC output photocoupler for high speed communication
Part Number
TLP2767
TLP2370
Toshiba Package Name SO6L 5pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750
VCC / VDD (Min) [V] 2.7 2.7
VCC / VDD (Max) [V] 5.5 5.5
ICC / IDD (Max) [mA] 2.5 0.4
Output Interface totem-pole(INV) totem-pole(BUF)
Search for lineup
DC-DC converter for 48 V system (Power supply for 1.2 V and 100 A output isolated DC-DC converter (VIN(DC) = 40 to 59.5 V, VOUT = 1.2 V, IOUT = 100 A))

Example of half-bridge type DC-DC converter circuit

Example of half-bridge type DC-DC converter circuit
U-MOS Series MOSFET (1)
Part Number
TPH9R00CQH
TPN12008QM
TPN1200APL
Toshiba Package Name SOP Advance / SOP Advance(N) TSON Advance TSON Advance
VDSS (Max) [V] 150 80 100
ID (Max) [A] 64 26 66
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.009 0.0123 0.0115
Polarity N-ch N-ch N-ch
Search for lineup
U-MOS Series MOSFET (2)
Part Number
TPHR6503PL
TPHR8504PL
TPWR6003PL
TPWR8004PL
Toshiba Package Name SOP Advance SOP Advance DSOP Advance DSOP Advance
VDSS (Max) [V] 30 40 30 40
ID (Max) [A] 393 340 412 340
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00065 0.00085 0.0006 0.0008
Polarity N-ch N-ch N-ch N-ch
Search for lineup
Transistor output photocoupler
Part Number
TLP383
TLP291(SE
Toshiba Package Name 4pin SO6L SO4
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750
VCEO (Max) [V] 80 80
Topr [°C] -55 to 125 -55 to 110
Search for lineup
IC output photocoupler for high speed communication
Part Number
TLP2767
TLP2370
Toshiba Package Name SO6L 5pin SO6
BVS (Min) [Vrms] @ t = 60 [s] 5000 3750
VCC / VDD (Min) [V] 2.7 2.7
VCC / VDD (Max) [V] 5.5 5.5
ICC / IDD (Max) [mA] 2.5 0.4
Output Interface totem-pole(INV) totem-pole(BUF)
Search for lineup
Peripheral interface circuits
Peripheral interface circuits

Examples of peripheral interface signal line protection circuits

Examples of peripheral interface signal line protection circuits
TVS diode
Part Number
DF2B7ASL
DF2B5M4SL
DF2B6M4SL
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2)
VESD (Max) [kV] +/-30 +/-20 +/-20
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.2 0.5 0.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 8.5 0.2 0.2
Search for lineup
Fan drive circuit
Fan drive circuit

Example of fan motor drive circuit

Example of fan motor drive circuit
Three-phase brushless DC motor driver IC
Part Number
TC78B025FTG
TC78B027FTG
TC78B009FTG
Toshiba Package Name P-VQFN24-0404-0.50-002 P-VQFN24-0404-0.50-002 P-WQFN36-0505-0.50-001
VOUT (Max) [V] 18 18 30
IOUT (Max) [A] 3.5 0.2 0.24
VM [V] 5.5 to 16 5 to 16 5.5 to 27
RON (Typ.) [Ω] 0.2
Search for lineup
Semi-power MOSFET
Part Number
SSM6K341NU
SSM3K341R
Toshiba Package Name SOT-1220 (UDFN6B) SOT-23F
VDSS (Max) [V] 60 60
ID (Max) [A] 6.0 6.0
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 0.051 0.051
Polarity N-ch N-ch
Search for lineup
Over temperature monitoring circuit
Over temperature monitoring circuit

Example of multi-point over temperature monitoring circuit

Example of multi-point over temperature monitoring circuit
Over temperature detection IC (ThermoflaggerTM )(1)
Part Number
TCTH011AE
TCTH012AE
TCTH021AE
TCTH022AE
Toshiba Package Name SOT-553 (ESV) SOT-553 (ESV) SOT-553 (ESV) SOT-553 (ESV)
VDD (Min) [V] 1.7 1.7 1.7 1.7
VDD (Max) [V] 5.5 5.5 5.5 5.5
IDD (Typ.) [µA] @ Tj = 25 [°C] 1.8 1.8 11.3 11.3
IPTCO (Typ.) [µA] @ Tj = 25 [°C] 1 1 10 10
FLAG Signal Output Push-pull Push-pull Push-pull Push-pull
Search for lineup
Over temperature detection IC (ThermoflaggerTM )(2)
Part Number
TCTH011BE
TCTH012BE
TCTH021BE
TCTH022BE
Toshiba Package Name SOT-553 (ESV) SOT-553 (ESV) SOT-553 (ESV) SOT-553 (ESV)
VDD (Min) [V] 1.7 1.7 1.7 1.7
VDD (Max) [V] 5.5 5.5 5.5 5.5
IDD (Typ.) [µA] @ Tj = 25 [°C] 1.8 1.8 11.3 11.3
IPTCO (Typ.) [µA] @ Tj = 25 [°C] 1 1 10 10
FLAG Signal Output Open drain Open drain Open drain Open drain
Search for lineup
Power line to storage devices
Power line to storage devices

Example of power line protection circuit from controller hub to strage devices

Example of power line protection circuit from controller hub to strage devices
Electronic fuse (eFuse IC) (1)
Part Number
TCKE800NA
TCKE805NA
TCKE812NA
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
Search for lineup
Electronic fuse (eFuse IC) (2)
Part Number
TCKE800NL
TCKE805NL
TCKE812NL
TCKE712BNL
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
Search for lineup
Schottky barrier diode (1)
Part Number
CUHS20F30
CUHS20F40
Toshiba Package Name SOD-323HE (US2H) SOD-323HE (US2H)
VRRM (Max) [V]
VR (Max) [V] 30 40
CT (Typ.) [pF] 380 300
Search for lineup
Schottky barrier diode (2)
Part Number
CUHS10F60
CUHS15F60
CUHS20F60
CUHS15S60
CUHS20S60
Toshiba Package Name SOD-323HE (US2H) SOD-323HE (US2H) SOD-323HE (US2H) SOD-323HE (US2H) SOD-323HE (US2H)
VRRM (Max) [V]
VR (Max) [V] 60 60 60 60 60
CT (Typ.) [pF] 130 130 300 130 290
Search for lineup
Zener diode (1)
Part Number
CSLZ5V6
CUHZ5V6
CSLZ6V2
CUHZ6V2
CRY62
Toshiba Package Name SOD-962 (SL2) SOD-323HE (US2H) SOD-962 (SL2) SOD-323HE (US2H) S-FLAT
PD (Max) [W] 0.15 1.2 0.15 1.2 0.7
VZ (Typ.) [V] 5.6 5.6 6.2 6.2 6.2
Search for lineup
Zener diode (2)
Part Number
CSLZ16V
CUHZ16V
CRZ16
Toshiba Package Name SOD-962 (SL2) SOD-323HE (US2H) S-FLAT
PD (Max) [W] 0.15 1.2 0.7
VZ (Typ.) [V] 16 16 16
Search for lineup

Solution Proposal

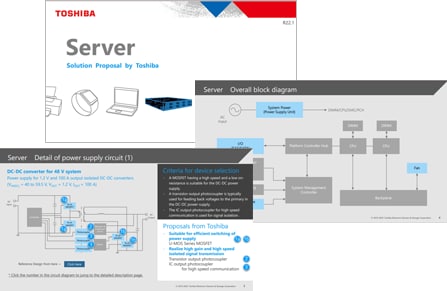

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Solution Proposal
SolutionProposal_Server / English (PDF:1.4MB)
SolutionProposal_Server / Japanese (PDF:1.7MB)

Reference Design

This is a picture of eFuse Application Circuit (with Thermal Shutdown).
eFuse Application Circuit (with Thermal Shutdown)
This reference design provides design guide, data and other contents of eFuse IC Application Circuit (with Thermal Shutdown) built on a small board. This circuit provides over temperature detection and protection by combining the eFuse IC and the ThermoflaggerTM (Over Temperature Detection IC).
세부 사항
This is a picture of eFuse Application Circuit (with Enhanced Overcurrent Protection).
eFuse Application Circuit (with Enhanced Overcurrent Protection)
This reference design provides design guide, data and other contents of eFuse IC Application Circuit (with Enhanced Overcurrent Protection) built on a small board.
This circuit provides precise overcurrent shutdown by combining the eFuse IC and the ThermoflaggerTM used as an overcurrent detection device.
세부 사항

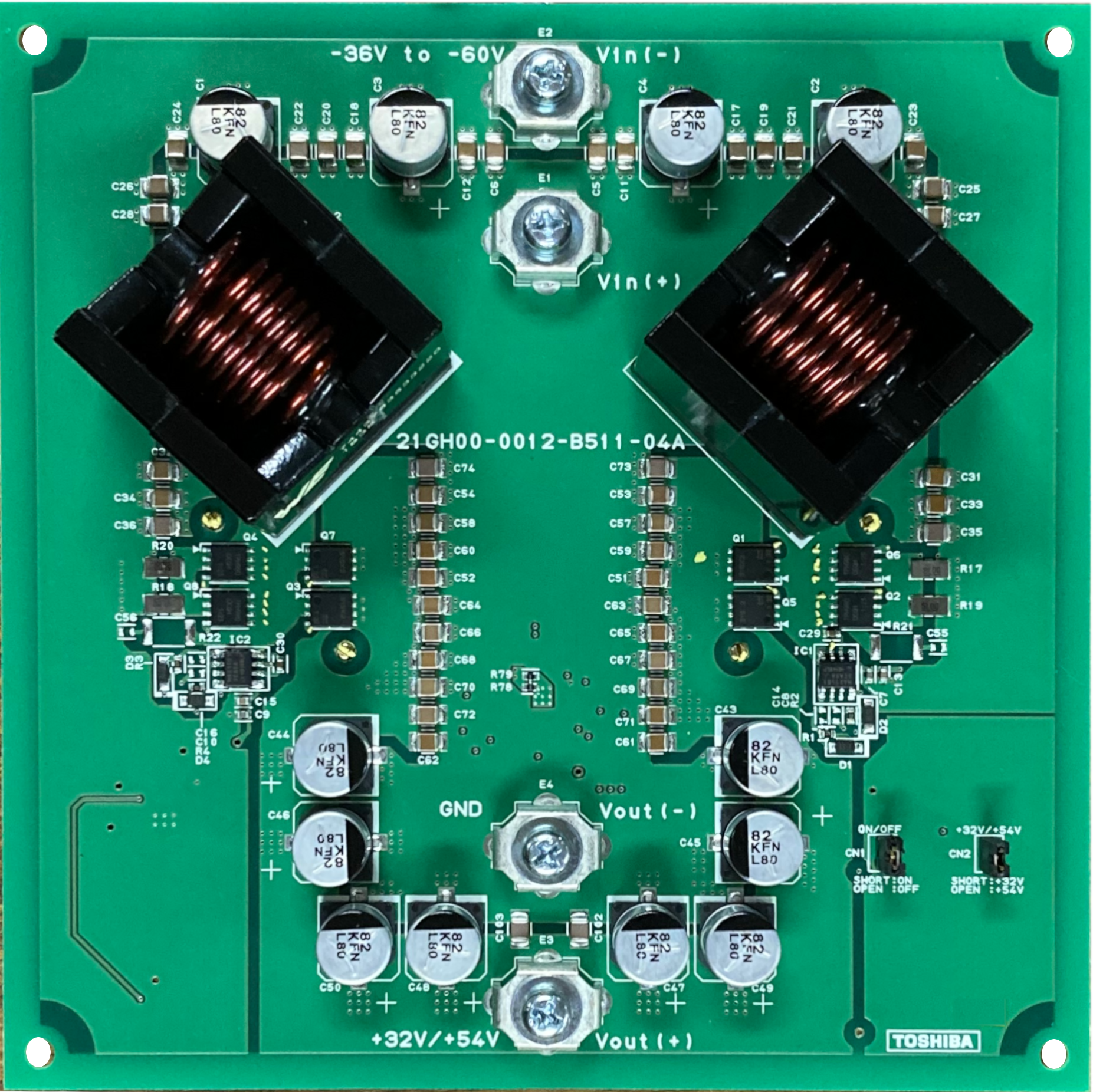

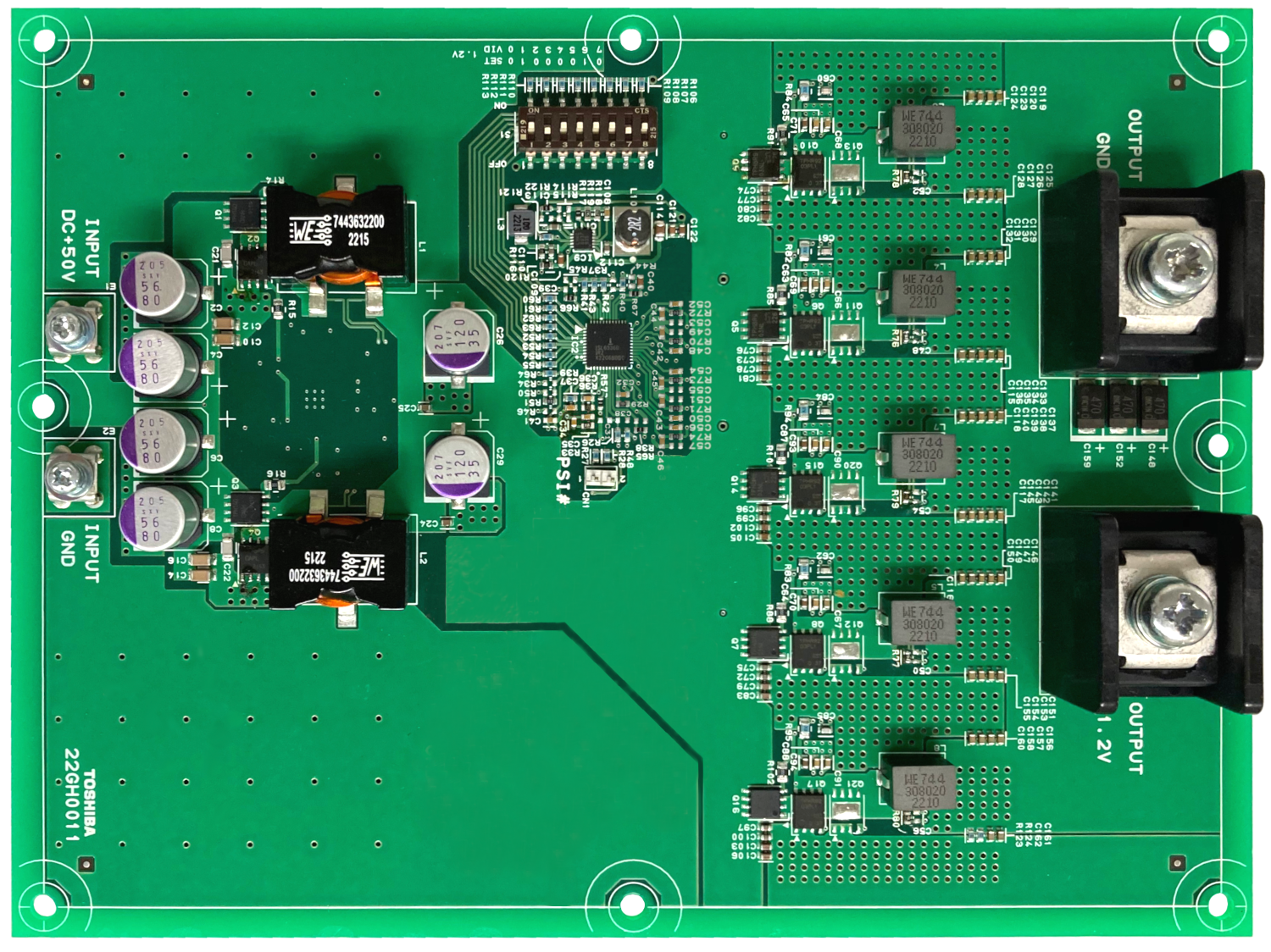

PCB Photo (example)
48 V Bus Compatible 1.2 V/100 A Double Step-Down DC-DC Converter
In recent years, saving energy in servers has become an urgent issue because of the rapid increase in server power consumption. To resolve the issue, Toshiba has developed this 48V bus compatible DC-DC converter with 1.2V/100A output.
This design is a two-stage DC-DC converter capable of delivering 1.2V/100A to various devices from the 48V bus line. Since each stage uses Toshiba power MOSFETs that have good balance between on-resistance and charge characteristics, it achieves high efficiency.
Design tips on each portion of the circuit, method of operation, and design information such as circuit diagrams and PCB patterns are available, please use them for your design.
세부 사항

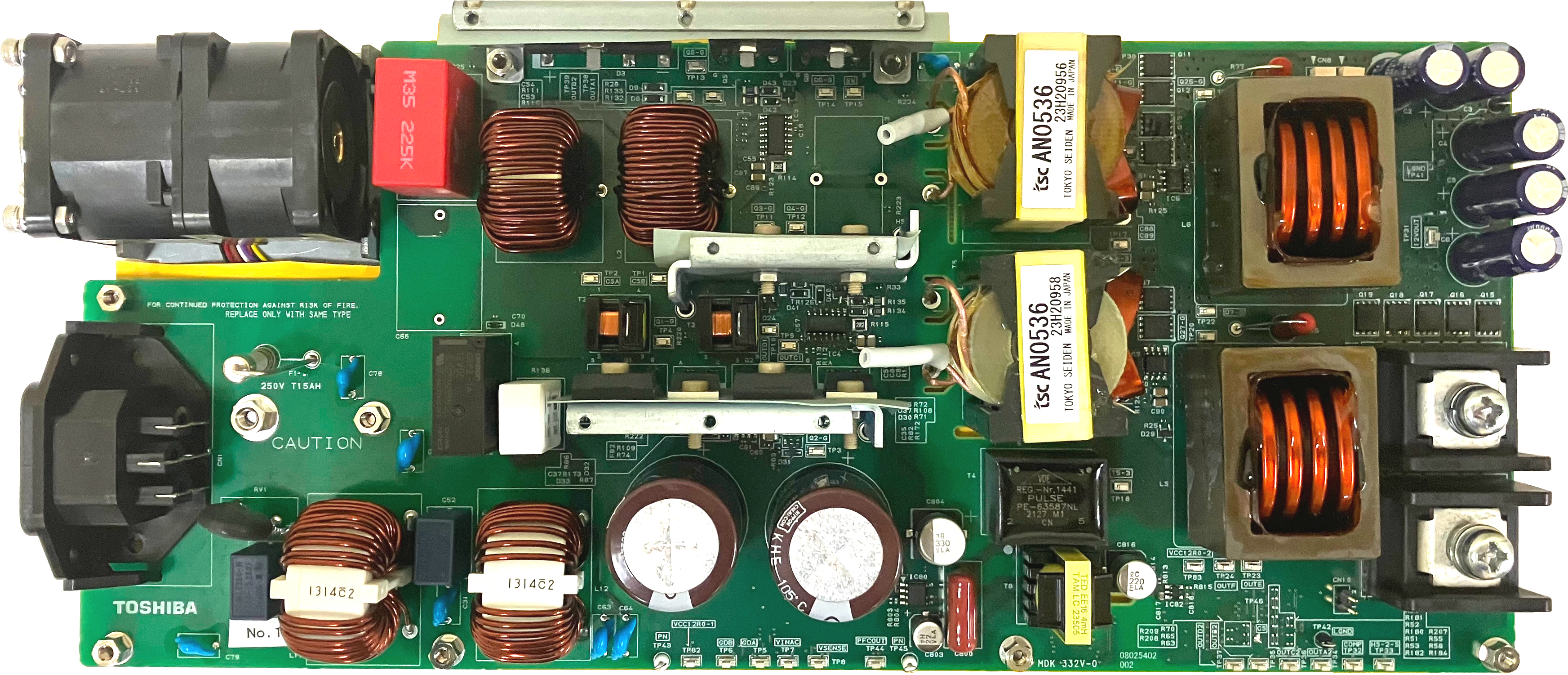

PCB Photo (example)
1.6 kW Server Power Supply (Upgraded)
Thanks to Toshiba’s latest power devices and digital isolator, this 1U size and 12 V output 1.6 kW server power supply achieves higher efficiency at whole load than the existing reference design which uses the same circuit topology. Design files and guides for circuit design and operation are available as reference design.
세부 사항

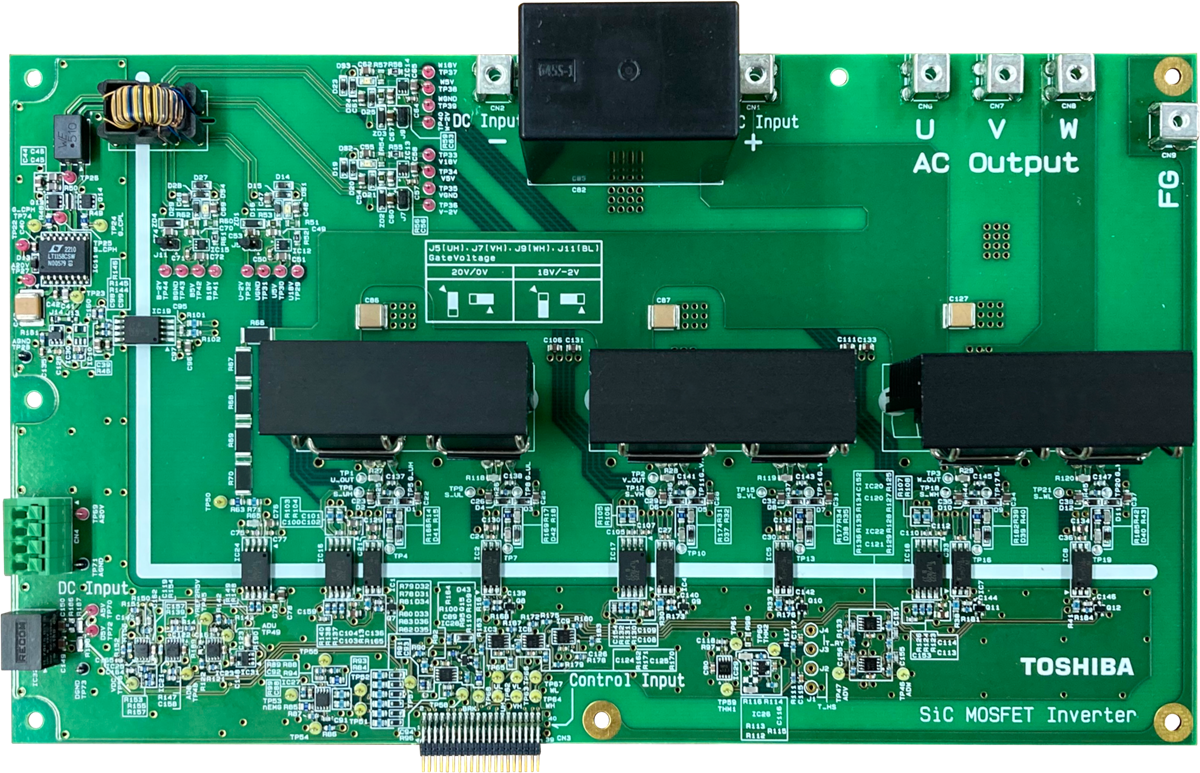

3-Phase Inverter Using SiC MOSFET
This reference design provides design guide, data and other contents of the 3-phase inverter using 1200 V SiC MOSFET. It drives AC 440V motors.
세부 사항
Over Temperature Detection IC Thermoflagger™ Application Circuit (TCTH021AE / Push-pull type)
This reference design provides design guide, data and other contents of Over Temperature Detection IC Thermoflagger™ Application Circuits (TCTH021AE / Push-pull type). In combination with PTC thermistor(s), the Thermoflagger™ can be used to detect over temperature at multiple locations within a device. Details of other application circuits of the Thermoflagger™ are also provided.
세부 사항
Over Temperature Detection IC ThermoflaggerTM Application Circuit (TCTH021BE / Open-drain type)
This reference design provides design guide, data and other contents of Over Temperature Detection IC ThermoflaggerTM Application Circuit (TCTH021BE / Open-drain type). In combination with PTC thermistor(s), this ThermoflaggerTM can be used to detect over temperature at multiple locations within a device.
세부 사항
PCB Photo (example)
1 kW Non-Isolated Buck-Boost DC-DC Converter for Telecommunication Equipment
This reference design provides design guide, data and other contents of 1 kW Non-Isolated Buck-Boost DC-DC Converter for Telecommunication Equipment.
세부 사항

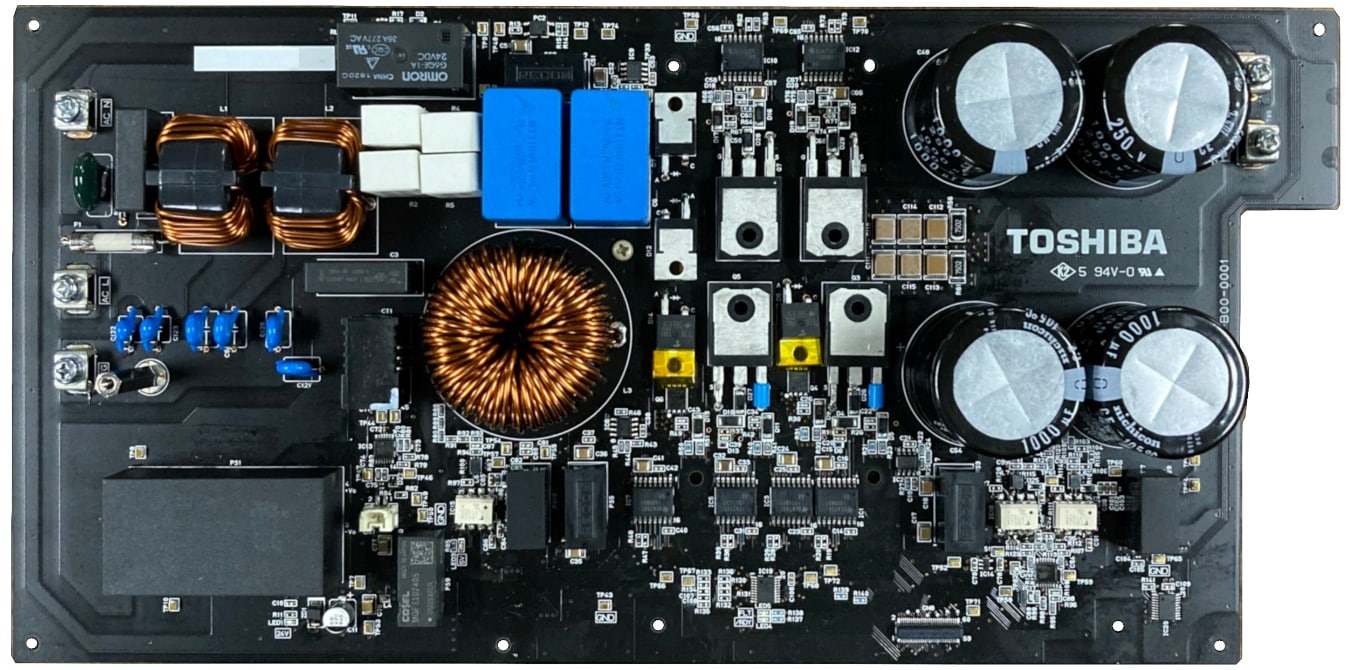

1.6 kW T-Type 3-Level PFC Power Supply
1.6 kW T-Type 3-Level PFC Power Supply
This reference design provides design guide, data and other contents of 1.6kW AC-DC converter power supply using T-Type 3-Level power factor correction (PFC) circuit.
세부 사항
Board photo of 100 W LLC DC-DC Converter
100 W LLC DC-DC Converter
This reference design provides design guide, data and other contents of 100 W LLC DC-DC Converter which uses Zero Volt Switching implemented using LLC resonance.
DC-DC Converter / MOSFET / Isolators
세부 사항
Exterior photo of 200 W active clamp forward DC-DC converter.
200 W Active Clamp Forward DC-DC Converter
This reference design provides design guide, data and other contents of 1 kW server power supply using phase shifetd full-bridge DC-DC converter.
DC-DC Converter
세부 사항

문서

Please see the following pages for other documents.

Video

개발/설계 지원

스위치 모드 전원공급 라이브러리

you can select and download various basic topologies of a power supply unit based on your actual requirements in order to verify the behavior of MOSFETs with your simulation environment.

스위치 모드 전원공급 라이브러리
Motor Control and Driver Circuit Library

you can select and download various basic topologies of motor driver such as three-phase inverter circuit based on your actual requirements in order to verify the behavior of MOSFETs and another devices for your simulation environment.

Motor Control and Driver Circuit Library
Online Circuit Simulator

This service allows users to easily perform pre-verification of MOSFETs without the need to build a simulation environment.

Online Circuit Simulator
EDA/CAD Model Library

We provide simulation data, 3D models of packages, and land pattern models (2D models) used when developing product boards.

EDA/CAD Model Library
MCU Motor Studio

MCU Motor Studio features a PC Tool and motor control firmware dedicated to the TXZ+TM Family Advanced Class microcontrollers from Toshiba.

MCU Motor Studio
Mail Magazine
Mail Magazine
To receive the latest news on our products, please fill in the subscription form.
Read More

문의

기술 문의

문의

문의

자주 있는 문의

자주 있는 문의
  • S-FLATTM and ThermoflaggerTM is a trademark of Toshiba Electronic Devices & Storage Corporation.
  • Other company names, product names, and service names may be trademarks of their respective companies.
A new window will open
