Such as low power consumption and miniaturization are important in designing smart speaker. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, sensor signal input unit, display unit, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 Up to 3.3 V : CPU/GPU, Memory Up to 3.3 V : CPU/GPU, Memory 5 V : Display Driver, LED Driver, Display Power, D-AMP, etc. 5 V : Display Driver, LED Driver, Display Power, D-AMP, etc. Up to 3.3 V : Camera, ALS, etc. Up to 3.3 V : Camera, ALS, etc. D-Amp D-Amp MIC MIC Image Processor ImageProcessor Display Driver DisplayDriver Touch Screen Controller Touch Screen Controller LED Driver LEDDriver PMIC PMIC DC/DC Converter DC/DCConverter LCD Panel LCD Panel Camera Module Camera Module Ambient Light Sensor Ambient Light Sensor Wi-Fi® Bluetooth® Wi-Fi®Bluetooth® Voice Codec Voice Codec DDR DDR FLASH FLASH SBD SBD TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS TVS Audio Codec AudioCodec MOSFET MOSFET LDO LDO eFuse IC / Gate Driver IC & N-ch MOSFET eFuse IC /Gate Driver IC& N-ch MOSFET 15 V / 5 V DC 15 V / 5 V DC SP SP D-Amp D-Amp Load SW IC / Gate Driver IC & N-ch MOSFET Load SW IC /Gate Driver IC& N-ch MOSFET TVS TVS TVS TVS Wireless communication circuit Power supply circuit Camera modules Ambient light sensor LCD backlight Image processing section
Power supply circuit

Example of power supply circuit using devices with various protection functions

Wireless communication circuit

Example of wireless communication circuit with external device

Ambient light sensor

Example of ambient light sensor circuit

Camera modules

Example of camera module circuit

LCD backlight

Example of LCD backlight drive circuit

Image processing section

Example of image processing processor peripheral circuit

Sub block diagram

Power supply circuit
Power supply circuit

Example of power supply circuit using devices with various protection functions

Example of power supply circuit using devices with various protection functions
TVS diode
Part Number
DF2B6M4SL
DF2B6M4BSL
DF2B20M4SL
DF2B5BSL
DF2B5PCT
DF2B7PCT
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOD-882 (CST2) SOD-882 (CST2)
VESD (Max) [kV] +/-20 +/-8 +/-15 +/-23 +/-30 +/-30
IR (Max) [µA] 0.1 0.1 0.1 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.5 1.05 0.2 0.2 0.1 0.1
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 0.2 0.12 0.2 11 41 45
Search for lineup
Electronic fuse (eFuse IC)(1)
Part Number
TCKE800NA
TCKE805NA
TCKE812NA
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
Search for lineup
Electronic fuse (eFuse IC)(2)
Part Number
TCKE800NL
TCKE805NL
TCKE812NL
TCKE712BNL
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
Search for lineup
N-ch MOSFET gate driver IC(1)
Part Number
TCK401G
TCK402G
TCK420G
TCK421G
TCK422G
Toshiba Package Name WCSP6E WCSP6E WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V]     27.56 23.14 14.17
VOVL_RI (Typ.) [V]     27.73 23.26 14.29
VGS (Typ.) [V] 8.5 8.5 10 10 10
Search for lineup
N-ch MOSFET gate driver IC(2)
Part Number
TCK423G
TCK424G
TCK425G
Toshiba Package Name WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V] 14.17 10.71 6.19
VOVL_RI (Typ.) [V] 14.29 10.83 6.31
VGS (Typ.) [V] 5.6 5.6 5.6
Search for lineup
Wireless communication circuit
Wi-FiⓇ/ BluetoothⓇ solution

Example of wireless communication circuit with external device

Example of wireless communication circuit with external device
Small surface mount LDO regulator(1)
Part Number
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Search for lineup
Small surface mount LDO regulator(2)
Part Number
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
Search for lineup
TVS diode
Part Number
DF2B6M4SL
DF2B6M4BSL
DF2B20M4SL
DF2B5BSL
DF2B5PCT
DF2B7PCT
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOD-882 (CST2) SOD-882 (CST2)
VESD (Max) [kV] +/-20 +/-8 +/-15 +/-23 +/-30 +/-30
IR (Max) [µA] 0.1 0.1 0.1 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.5 1.05 0.2 0.2 0.1 0.1
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 0.2 0.12 0.2 11 41 45
Search for lineup
Ambient light sensor
Ambient light sensor

Example of ambient light sensor circuit

Example of ambient light sensor circuit
Small surface mount LDO regulator(1)
Part Number
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Search for lineup
Small surface mount LDO regulator(2)
Part Number
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
Search for lineup
Low noise operational amplifier
Part Number
TC75S67TU
Toshiba Package Name SOT-353F (UFV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Search for lineup
Camera modules
Camera modules

Example of camera module circuit

Example of camera module circuit
Small surface mount LDO regulator(1)
Part Number
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Search for lineup
Small surface mount LDO regulator(2)
Part Number
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
Search for lineup
TVS diode
Part Number
DF2B6M4SL
DF2B6M4BSL
DF2B20M4SL
DF2B5BSL
DF2B5PCT
DF2B7PCT
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOD-882 (CST2) SOD-882 (CST2)
VESD (Max) [kV] +/-20 +/-8 +/-15 +/-23 +/-30 +/-30
IR (Max) [µA] 0.1 0.1 0.1 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.5 1.05 0.2 0.2 0.1 0.1
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 0.2 0.12 0.2 11 41 45
Search for lineup
LCD backlight
LCD backlight

Example of LCD backlight drive circuit

Example of LCD backlight drive circuit
Small-signal MOSFET
Part Number
SSM3K341R
SSM6K514NU
SSM3K15ACT
Toshiba Package Name SOT-23F SOT-1220 (UDFN6B) SOT-883 (CST3)
VDSS (Max) [V] 60 40 30
ID (Max) [A] 6.0 12 0.1
RDS(ON) (Max) [Ω] @ |VGS| = 4.5 [V] 0.051 0.0173
Polarity N-ch N-ch N-ch
Search for lineup
Schottky barrier diode
Part Number
CUS10F30
CTS05F40
Toshiba Package Name SOD-323 (USC) SOD-882 (CST2)
VRRM (Max) [V]
VR (Max) [V] 30 40
CT (Typ.) [pF] 170 28
Search for lineup
Image processing section
Image processing section

Example of image processing processor peripheral circuit

Example of image processing processor peripheral circuit
TVS diode
Part Number
DF2B6M4SL
DF2B6M4BSL
DF2B20M4SL
DF2B5BSL
DF2B5PCT
DF2B7PCT
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOD-882 (CST2) SOD-882 (CST2)
VESD (Max) [kV] +/-20 +/-8 +/-15 +/-23 +/-30 +/-30
IR (Max) [µA] 0.1 0.1 0.1 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.5 1.05 0.2 0.2 0.1 0.1
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 0.2 0.12 0.2 11 41 45
Search for lineup

Solution Proposal

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Solution Proposal

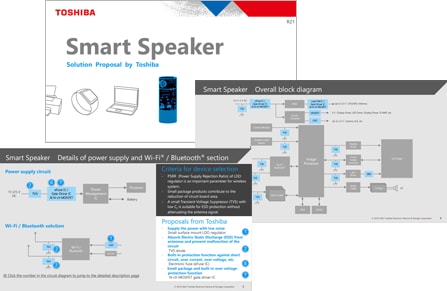

SolutionProposal_Smart Speaker / English (PDF:1.5MB)
SolutionProposal_Smart Speaker / Japanese (PDF:2.2MB)

Reference Design

This is a picture of the DFN4D package.
TCR3EMxxA / 3DMxxA / 3LMxxA Series LDO Regulators With 300mA Output in Small DFN4D Package for Power Supply Circuit Applications
The lineup includes three series of small package LDO regulators that are ideal for mobile devices, etc. becuase of their features (standard type, low dropout voltage type, and low current consumption type). We provide the description of features, design points, and usage methods of each series.
