In recent years, saving energy in servers has become an urgent issue because of the rapid increase in server power consumption. To resolve the issue, Toshiba has developed this 48V bus compatible DC-DC converter with 1.2V/100A output.

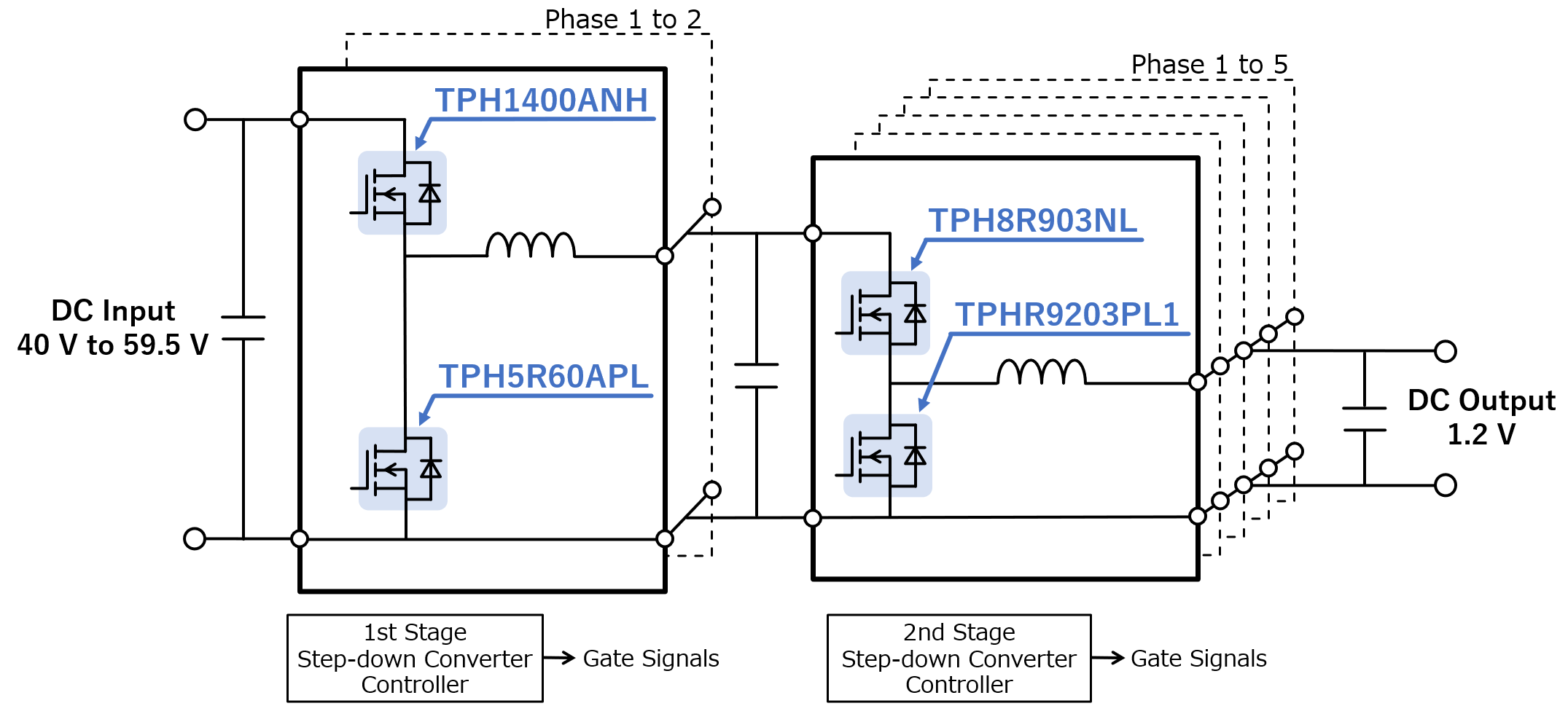

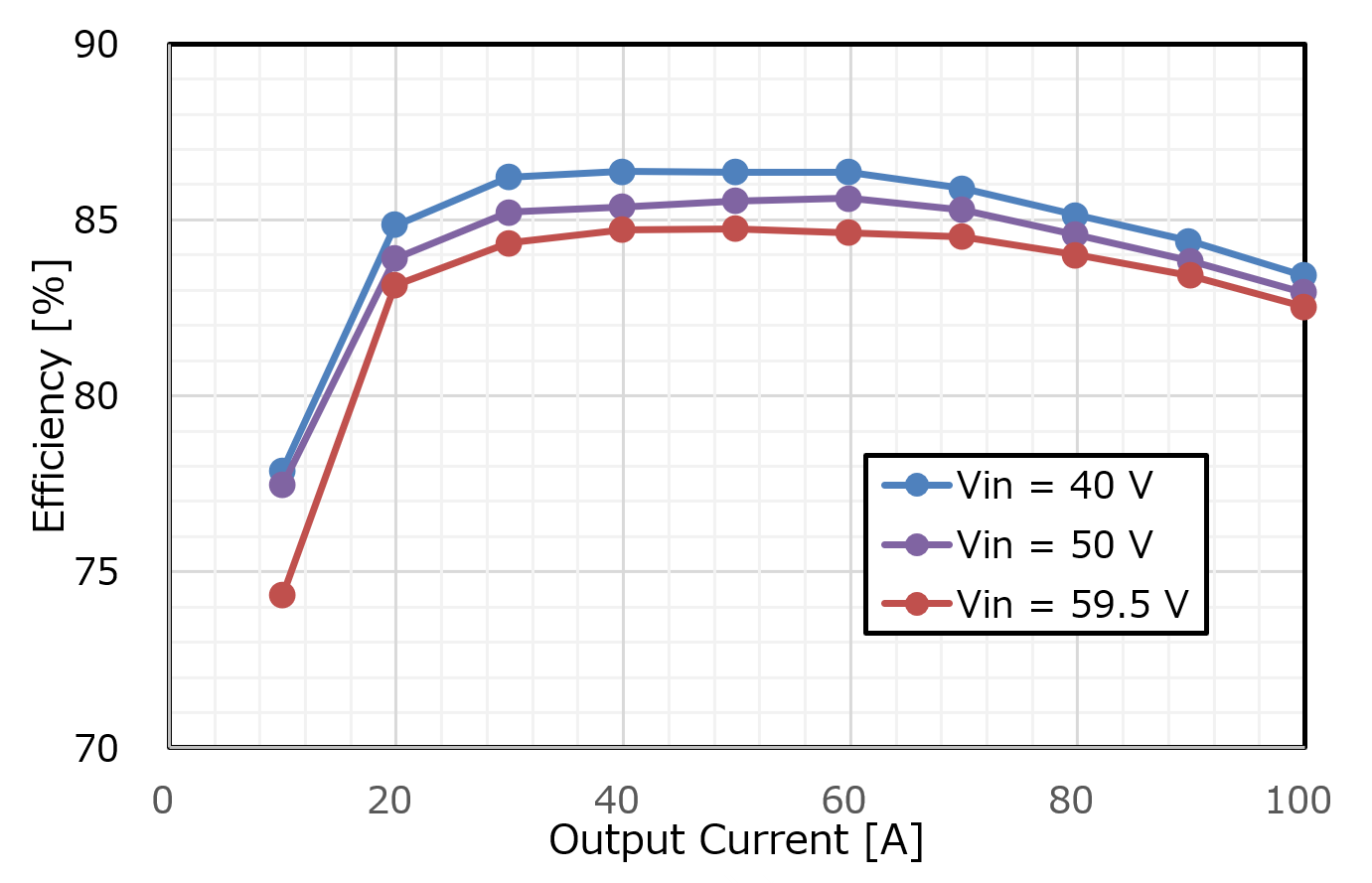

This design is a two-stage DC-DC converter capable of delivering 1.2V/100A to various devices from the 48V bus line. Since each stage uses Toshiba power MOSFETs that have good balance between on-resistance and charge characteristics, it achieves high efficiency.
Design tips on each portion of the circuit, method of operation, and design information such as circuit diagrams and PCB patterns are available, please use them for your design.
Click on components for more details
Input voltage | DC 40 V to 59.5 V |
---|---|
Output voltage | DC 1.2 V |
Output power | 120 W |
Circuit topology | Double Step-Down DC-DC Converter (Non-Isolated Sychronous Buck DC-DC + Non-Isolated Sychronous Buck DC-DC) |
Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.
Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.
Part Number | Device Category | Portion Usage | Description |
---|---|---|---|
Power MOSFET (N-ch single 60V<VDSS≤150V) | First stage high-side・2 | N-ch MOSFET, 100 V, 0.0136 Ω@10V, SOP Advance, U-MOSⅧ-H | |
Power MOSFET (N-ch single 60V<VDSS≤150V) | First stage low-side・2 | N-ch MOSFET, 100 V, 0.0056 Ω@10V, SOP Advance, U-MOSⅨ-H | |
Power MOSFET (N-ch single VDSS≤30V) | Second stage high-side・5 | N-ch MOSFET, 30 V, 0.0089 Ω@10V, SOP Advance, U-MOSⅧ-H | |
Power MOSFET (N-ch single VDSS≤30V) | Second stage low-side・5 | N-ch MOSFET, 30 V, 0.00092 Ω@10V, SOP Advance(N), U-MOSⅨ-H |
We provide materials useful for designing and considering similar circuits, such as application notes for installed products. Please click on each tab to view the contents.
