48 V Bus Compatible 1.2 V/100 A Double Step-Down DC-DC Converter

The 48 V power supply for servers is getting popular in order to reduce power consumption of data centers. This DC-DC converter can convert the 48 V bus voltage to 1.2 V/100 A for several devices on a server efficiently. Design files and guides for circuit design and operation are available as reference design.

PCB Photo (example)
Board Appearance
TPH1400ANH TPH1400ANH TPH5R60APL TPH5R60APL TPH8R903NL TPH8R903NL TPHR9203PL1 TPHR9203PL1

Click on components for more details

特性

  • Provides 1.2 V/100 A from the 48 V bus line very efficiently
  • Total efficiency 83 % (Vin = 50 V at 100 % load condition)
  • Outline size : 198 mm x 151 mm
  • Provides the latest power MOSFET totally

說明

Input voltage DC 40 V to 59.5 V
Output voltage DC 1.2 V
Output power 120 W

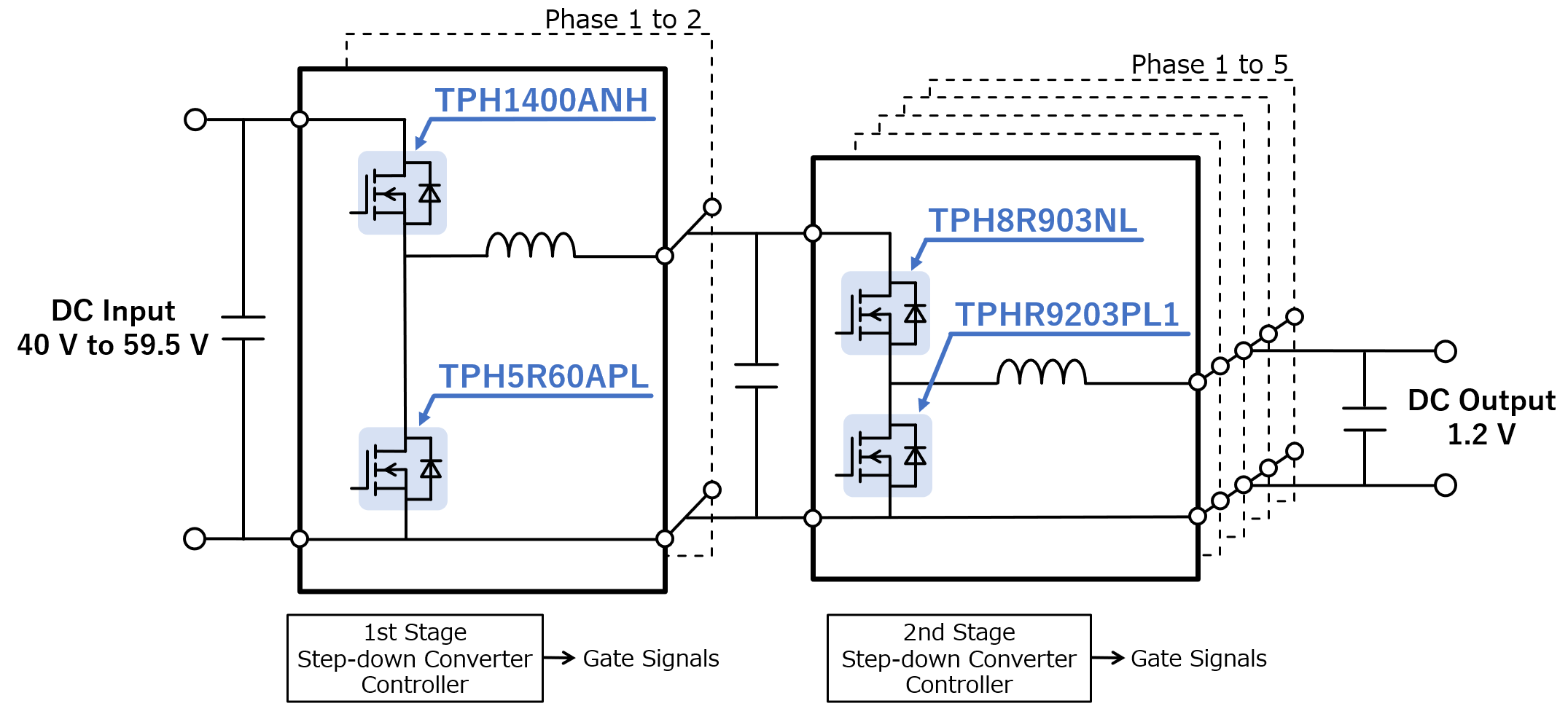

Circuit topology Double Step-Down DC-DC Converter (Non-Isolated Sychronous Buck DC-DC + Non-Isolated Sychronous Buck DC-DC)

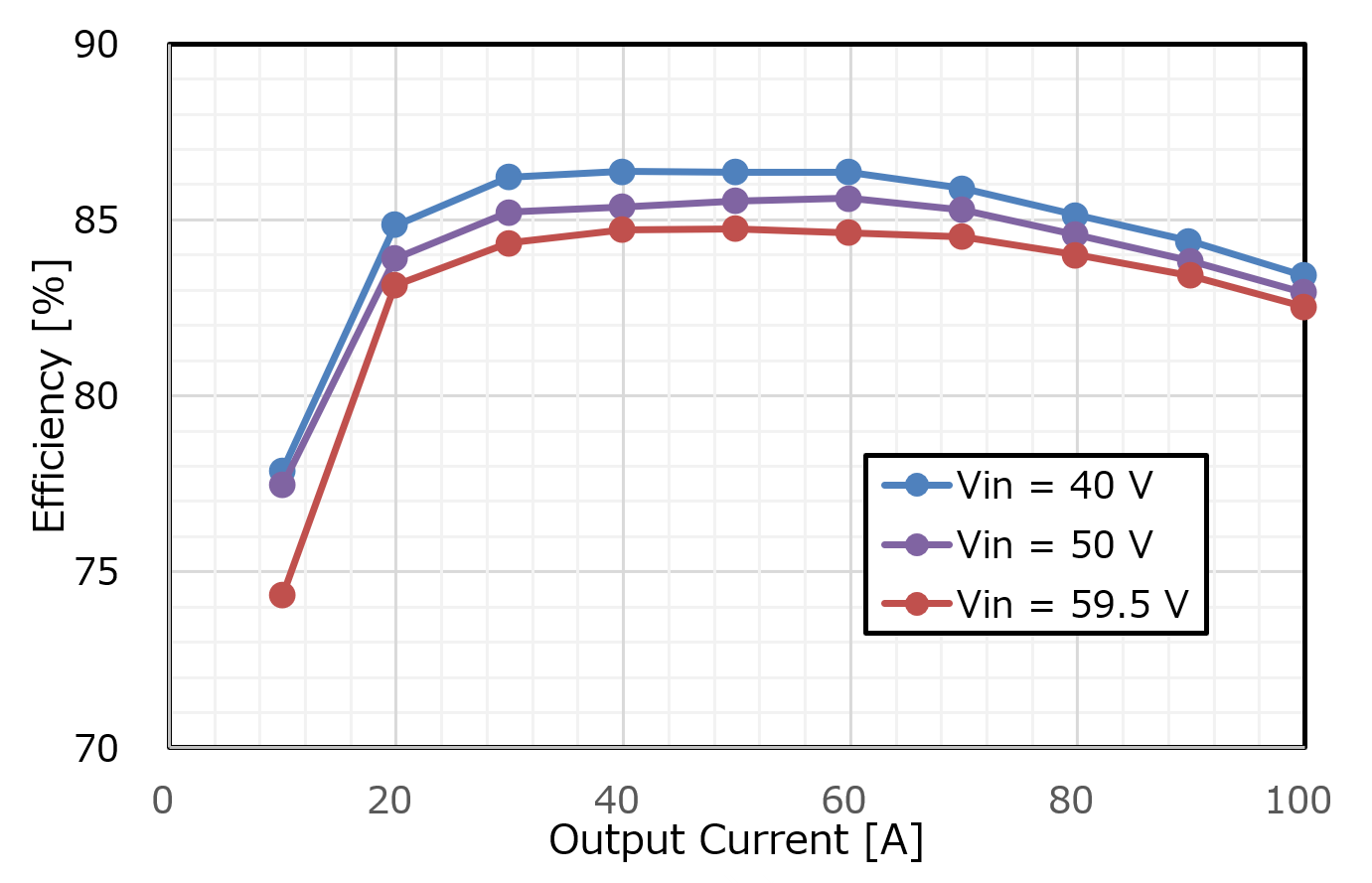

Efficiency Curves
Efficiency Curves

設計文件

供設計人員使用的材料,例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

*1:實際PCB在CR5000BD上設計。其他文件由CR5000BD文件生成。

*2:數據在CR5000BD上生成。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (N-ch single 60V<VDSS≤150V) First stage high-side・2 N-ch MOSFET, 100 V, 0.0136 Ω@10V, SOP Advance, U-MOSⅧ-H
Power MOSFET (N-ch single 60V<VDSS≤150V) First stage low-side・2 N-ch MOSFET, 100 V, 0.0056 Ω@10V, SOP Advance, U-MOSⅨ-H
Power MOSFET (N-ch single VDSS≤30V) Second stage high-side・5 N-ch MOSFET, 30 V, 0.0089 Ω@10V, SOP Advance, U-MOSⅧ-H
Power MOSFET (N-ch single VDSS≤30V) Second stage low-side・5 N-ch MOSFET, 30 V, 0.00092 Ω@10V, SOP Advance(N), U-MOSⅨ-H

相關文件

我們提供有助於設計和考慮類似電路的材料,例如已安裝產品的應用說明。請點擊每個選項以查看內容。

應用

Server
Such as low power consumption and miniaturization are important in designing server. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, motor driving unit, over temperature monitoring unit, etc., along with circuit configuration examples.
