Under development

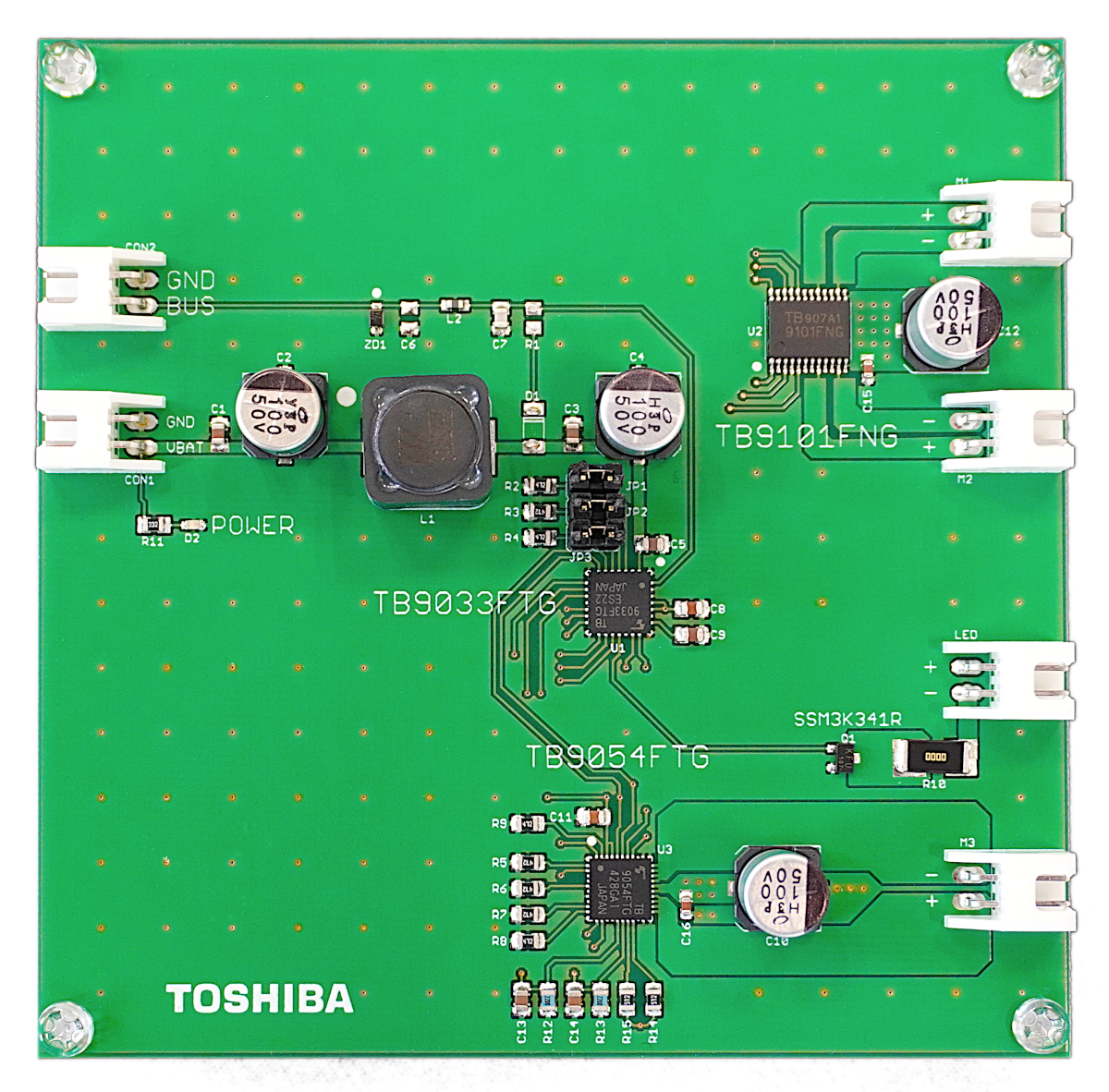

Network communication IC
Functions | CXPI driver receiver + Encoding, decoding, and arbitration + Protocol control |
---|---|
Applications | Steering switches / Meter cluster switches / Light switches / Door locks / Door mirrors |
Features | Low quiescent current in sleep mode / 16ch GPIO I/O / 6ch AD converter |
Built-in Functions | Overheat detection / Low voltage detection / Overvoltage detection |
CXPI Standard | ISO 20794-2 / ISO 20794-4 |
RoHS Compatible Product(s) (#) | Please contact us. |
Toshiba Package Name | P-VQFN28-0606-0.65-003 |
---|---|
Package Image |
![]() |
Pins | 28 |
Mounting | Surface Mount |
Package Dimensions | View |
Land pattern dimensions | View |
Please refer to the link destination to check the detailed size.
Characteristics | Symbol | Rating | Unit |
---|---|---|---|
Supply voltage 1 (Min) | VBAT | 0 | V |
Supply voltage 1 (Max) | VBAT | 40 | V |
Input output withstand voltage (Min) | VBUS | -27 | V |
Input output withstand voltage (Max) | VBUS | 40 | V |
Output current (Max) | IBUS | 0.2 | A |
Junction temperature (Max) | Tj | 150 | ℃ |
Strage temperature (Min) | Tstg | -55 | ℃ |
Strage temperature (Max) | Tstg | 150 | ℃ |
Characteristics | Symbol | Condition | Value | Unit |
---|---|---|---|---|
BAT normal operating voltage (Min) | VBAT(opr) | - | 6 | V |
BAT normal operating voltage (Max) | VBAT(opr) | - | 18 | V |
Operating temperature (Min) | Ta(opr) | - | -40 | ℃ |
Operating temperature (Max) | Ta(opr) | - | 125 | ℃ |
BAT current consumption(SLP) (Typ.) | IBATSLP | - | 10 | μA |
