TB9033FTG

Under development

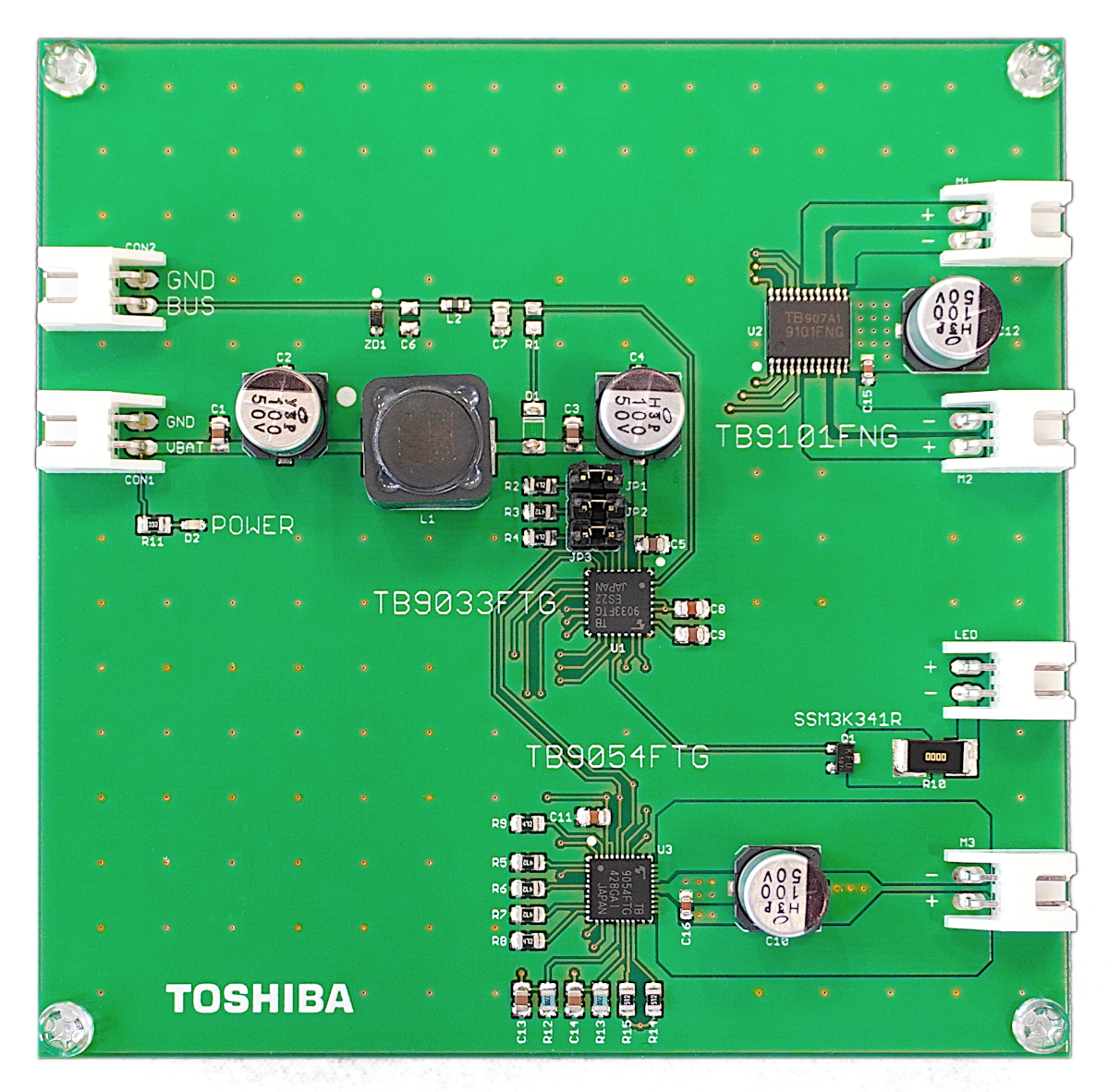

Network communication IC

Description

Functions CXPI driver receiver + Encoding, decoding, and arbitration + Protocol control
Applications Steering switches / Meter cluster switches / Light switches / Door locks / Door mirrors
Features Low quiescent current in sleep mode / 16ch GPIO I/O / 6ch AD converter
Built-in Functions Overheat detection / Low voltage detection / Overvoltage detection
CXPI Standard ISO 20794-2 / ISO 20794-4
RoHS Compatible Product(s) (#) Please contact us.

Package Information

Toshiba Package Name P-VQFN28-0606-0.65-003
Package Image Toshiba TB9033FTG Network communication IC product P-VQFN28-0606-0.65-003 package image
Pins 28
Mounting Surface Mount
Package Dimensions 보기
Land pattern dimensions 보기
SamacSys CAD model
(Symbol, Footprint and 3D model)		 Download from SamacSys<br>*1 *2

Download from SamacSys
*1 *2

 Please refer to the link destination to check the detailed size.

*1

SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.

*2

Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

Absolute Maximum Ratings

Characteristics Symbol Rating Unit
Supply voltage 1 (Min) VBAT 0 V
Supply voltage 1 (Max) VBAT 40 V
Input output withstand voltage (Min) VBUS -27 V
Input output withstand voltage (Max) VBUS 40 V
Output current (Max) IBUS 0.2 A
Junction temperature (Max) Tj 150 ℃
Strage temperature (Min) Tstg -55 ℃
Strage temperature (Max) Tstg 150 ℃

Electrical Characteristics

Characteristics Symbol Condition Value Unit
BAT normal operating voltage (Min) VBAT(opr) - 6 V
BAT normal operating voltage (Max) VBAT(opr) - 18 V
Operating temperature (Min) Ta(opr) - -40 ℃
Operating temperature (Max) Ta(opr) - 125 ℃
BAT current consumption(SLP) (Typ.) IBATSLP - 10 μA
Purchase and Sample
Please contact one of Toshiba's official distributors or the nearest Toshiba sales office.
You can search for and purchase a small on-line sample by clicking on the following link.
