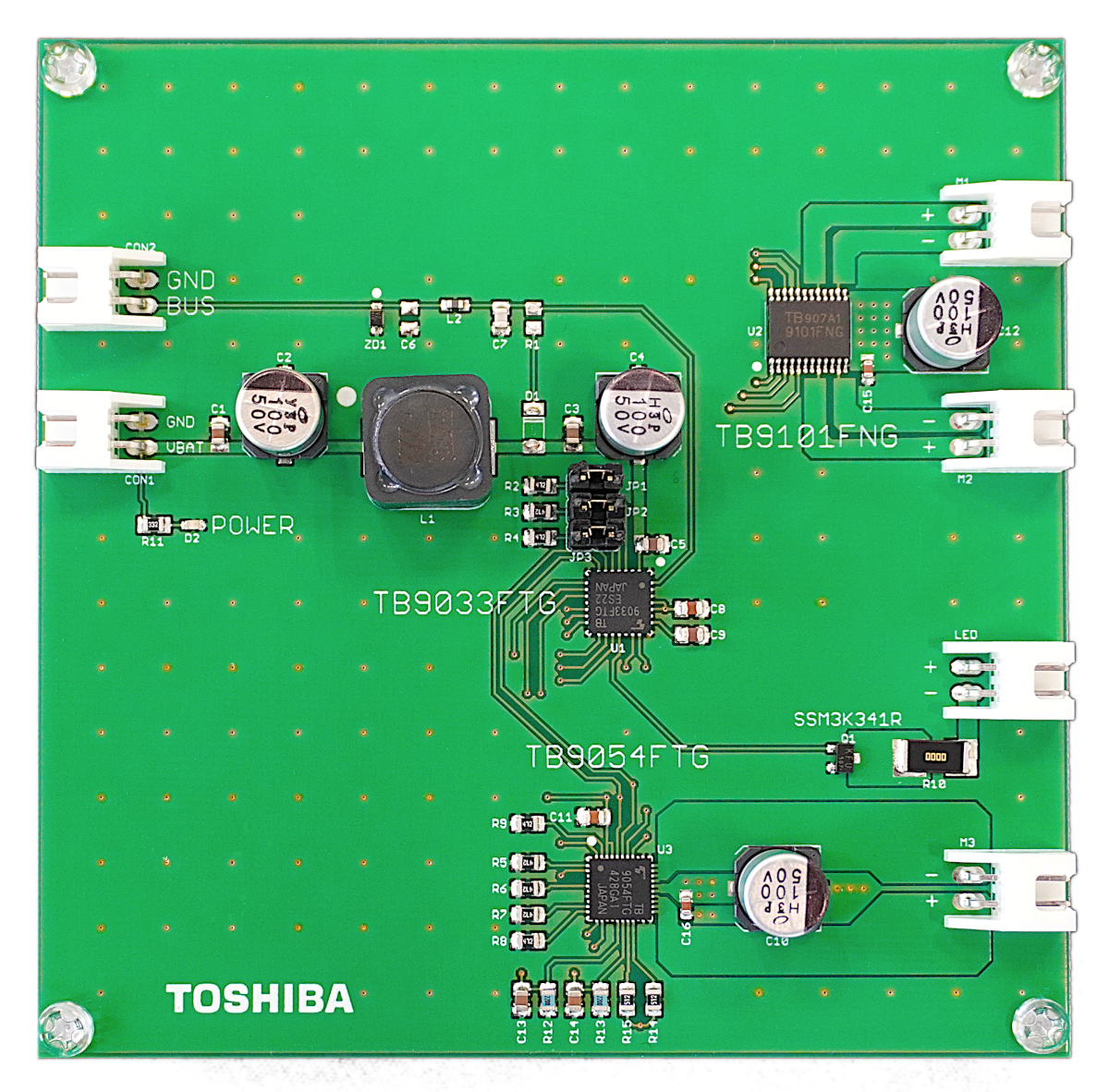

TB9033FTG

This page partially uses JavaScript. This page may not operate normally when these functions are not supported by your browser or the setting is disabled.
Please look for the information you need from the following pages:

聯絡我們

Asia-Pacific - English

Asia-Pacific - 简体中文

Asia-Pacific - 繁體中文

Asia-Pacific - 한국어

Asia-Pacific - 日本語

Americas - English

Europe (EMEA) - English

Functions	CXPI driver receiver + Encoding, decoding, and arbitration + Protocol control
Applications	Steering switches / Meter cluster switches / Light switches / Door locks / Door mirrors
Features	Low quiescent current in sleep mode / 16ch GPIO I/O / 6ch AD converter
Built-in Functions	Overheat detection / Low voltage detection / Overvoltage detection
CXPI Standard	ISO 20794-2 / ISO 20794-4
RoHS Compatible Product(s) (#)	Please contact us.

包裝資訊

Toshiba Package Name	P-VQFN28-0606-0.65-003
Package Image
Pins	28
Mounting	Surface Mount
Package Dimensions	檢視
Land pattern dimensions	檢視

Please refer to the link destination to check the detailed size.

絕對最大額定值

項目	符號	值	單位
Supply voltage 1 (Min)	V_BAT	0	V
Supply voltage 1 (Max)	V_BAT	40	V
Input output withstand voltage (Min)	V_BUS	-27	V
Input output withstand voltage (Max)	V_BUS	40	V
Output current (Max)	I_BUS	0.2	A
Junction temperature (Max)	T_j	150	℃
Strage temperature (Min)	T_stg	-55	℃
Strage temperature (Max)	T_stg	150	℃

電器特性

項目	符號	條件	值	單位
BAT normal operating voltage (Min)	V_BAT(opr)	-	6	V
BAT normal operating voltage (Max)	V_BAT(opr)	-	18	V
Operating temperature (Min)	Ta_(opr)	-	-40	℃
Operating temperature (Max)	Ta_(opr)	-	125	℃
BAT current consumption(SLP) (Typ.)	IBAT_SLP	-	10	μA

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.
