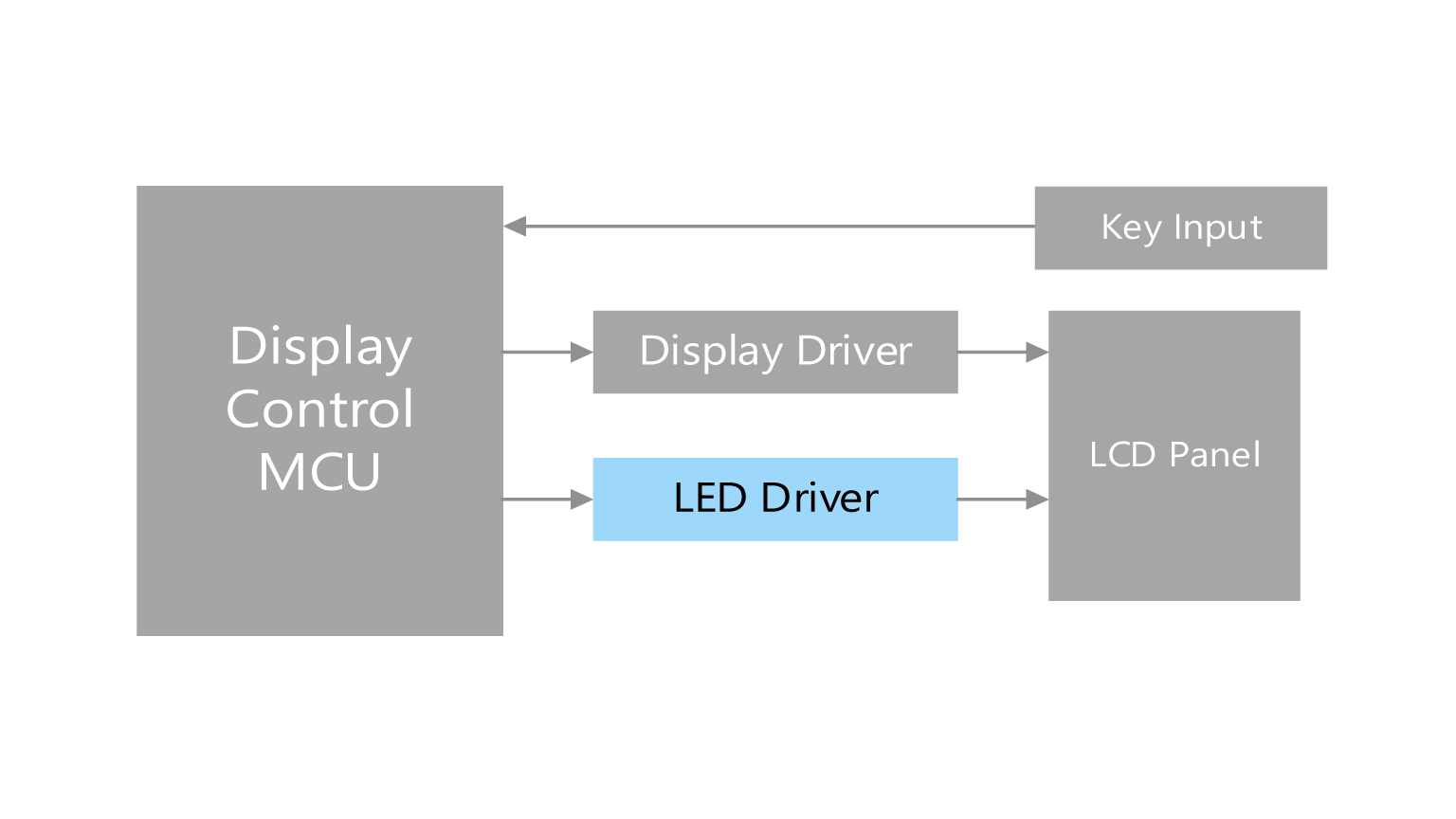

Operation panel
Lineup
Step up type LED drivers for a white LED
Part number |
||
|---|---|---|
Package |
SON8 |
WQFN24 |
Driving chnumber |
1 ch |
4 ch |
Maximum LED driving number |
6 |
36 |
| Operation voltage | 2.8 to 5.5 V | 4.75 to 40 V |
| LED driving current | ～80 mA | ～150 mA |
| Built-inconstant current power supply | N/A | Available |
| Built-in FET for steppingup power supply | Available | N/A |
