Microwave Oven

總方塊圖

Microwave Oven

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

Magnetron drive circuit

Magnetron drive circuit (Using bipolar transistor)

Example of magnetron drive circuit using bipolar transistor

Magnetron drive circuit (Using gate driver coupler)

Example of magnetron drive circuit using gate driver coupler

Flyback type AC-DC converter

Example of flyback type AC-DC converter

Relay drive circuit

Example of mechanical relay drive circuit using bipolar transistor

LED drive circuit

Example of LED drive circuit using bipolar transistor

Temperature sensor circuit

Example of the circuit using operational amplifier for amplifying temperature sensor signal

Weight sensor circuit

Example of the circuit using operational amplifier for amplifying weight sensor signal

子方塊圖

Magnetron drive circuit

Magnetron drive circuit (Using bipolar transistor)

Example of magnetron drive circuit using bipolar transistor

Bipolar transistor
Bipolar transistor for IGBT gate drive
Discrete IGBT
MCU

Bipolar transistor

器件型號	TMBT3906	TMBT3904	2SC4116
Toshiba Package Name	SOT-23 (SOT23)	SOT-23 (SOT23)	SOT-323 (USM)
V_CEO (Max) [V]	-50	50	50
I_C (Max) [A]	-0.2	0.2	0.15
Polarity	PNP	NPN	NPN

搜尋產品線

Bipolar transistor for IGBT gate drive

器件型號	HN4B101J	HN4B102J	TPCP8901	TPCP8902
Toshiba Package Name	SOT-25 (SMV)	SOT-25 (SMV)	PS-8	PS-8
V_CEO (Q1) (Max) [V]	-30	30	-50	-30
V_CEO (Q2) (Max) [V]	30	-30	50	30
I_C (Q1) (Max) [A]	-1.0	2	-0.8	-2.0
I_C (Q2) (Max) [A]	1.2	-1.8	1	2.0
Polarity (Q1)	PNP	NPN	PNP	PNP
Polarity (Q2)	NPN	PNP	NPN	NPN

搜尋產品線

Discrete IGBT

器件型號	GT40QR21	GT30J110SRA	GT30N135SRA
Toshiba Package Name	TO-3P(N)	TO-3P(N)	TO-247
V_CES (Max) [V]	1200	1100	1350
I_C (Max) [A]	40	60	30

搜尋產品線

MCU

Series	TX03 Series
Group	M380グループ

搜尋產品線

Magnetron drive circuit (Using gate driver coupler)

Example of magnetron drive circuit using gate driver coupler

IGBT gate driver coupler(1)
IGBT gate driver coupler(2)
Discrete IGBT
MCU

IGBT gate driver coupler(1)

器件型號	TLP5771H	TLP5772H	TLP5774H
Toshiba Package Name	SO6L	SO6L	SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	5000	5000
V_CC / V_DD (Min) [V]	10	10	10
V_CC / V_DD (Max) [V]	30	30	30
I_CC / I_DD (Max) [mA]	3	3	3
Output Interface	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)

搜尋產品線

IGBT gate driver coupler(2)

器件型號	TLP5751H	TLP5752H	TLP5754H	TLP5231
Toshiba Package Name	SO6L	SO6L	SO6L	SO16L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	5000	5000	5000
V_CC / V_DD (Min) [V]	15	15	15	15.0
V_CC / V_DD (Max) [V]	30	30	30	23.5
I_CC / I_DD (Max) [mA]	3	3	3	10.2
Output Interface	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)	totem-pole(BUF)

搜尋產品線

Discrete IGBT

器件型號	GT40QR21	GT30J110SRA	GT30N135SRA
Toshiba Package Name	TO-3P(N)	TO-3P(N)	TO-247
V_CES (Max) [V]	1200	1100	1350
I_C (Max) [A]	40	60	30

搜尋產品線

MCU

Series	TX03 Series
Group	M380グループ

搜尋產品線

Flyback type AC-DC converter

Example of flyback type AC-DC converter

Rectifier diode
Switching Diodes
Transistor output photocoupler

Rectifier diode

器件型號	CMG06A
Toshiba Package Name	M-FLAT
V_RRM (Max) [V]	600
I_F(AV) (Max) [A]	1

搜尋產品線

Switching Diodes

器件型號	1SS352
Toshiba Package Name	SOD-323 (USC)
V_R (Max) [V]	80
C_T (Typ.) [pF]	0.5

搜尋產品線

Transistor output photocoupler

器件型號	TLP383	TLP293	TLP385
Toshiba Package Name	4pin SO6L	SO4	4pin SO6L
BV_S (Min) [V_rms] @ t = 60 [s]	5000	3750	5000
V_CEO (Max) [V]	80	80	80
T_opr [°C]	-55 to 125	-55 to 125	-55 to 110

搜尋產品線

Relay drive circuit

Example of mechanical relay drive circuit using bipolar transistor

Rectifier diode
Switching Diodes
Bipolar transistor
MCU

Rectifier diode

器件型號	CMG06A
Toshiba Package Name	M-FLAT
V_RRM (Max) [V]	600
I_F(AV) (Max) [A]	1

搜尋產品線

Switching Diodes

器件型號	1SS352
Toshiba Package Name	SOD-323 (USC)
V_R (Max) [V]	80
C_T (Typ.) [pF]	0.5

搜尋產品線

Bipolar transistor

器件型號	TMBT3906	TMBT3904	2SC4116
Toshiba Package Name	SOT-23 (SOT23)	SOT-23 (SOT23)	SOT-323 (USM)
V_CEO (Max) [V]	-50	50	50
I_C (Max) [A]	-0.2	0.2	0.15
Polarity	PNP	NPN	NPN

搜尋產品線

MCU

Series	TX03 Series
Group	M380グループ

搜尋產品線

LED drive circuit

Example of LED drive circuit using bipolar transistor

Bipolar transistor
MCU

Bipolar transistor

器件型號	TMBT3906	TMBT3904	2SC4116
Toshiba Package Name	SOT-23 (SOT23)	SOT-23 (SOT23)	SOT-323 (USM)
V_CEO (Max) [V]	-50	50	50
I_C (Max) [A]	-0.2	0.2	0.15
Polarity	PNP	NPN	NPN

搜尋產品線

MCU

Series	TX03 Series
Group	M380グループ

搜尋產品線

Temperature sensor circuit

Example of the circuit using operational amplifier for amplifying temperature sensor signal

Small surface mount LDO regulator(1)
Small surface mount LDO regulator(2)

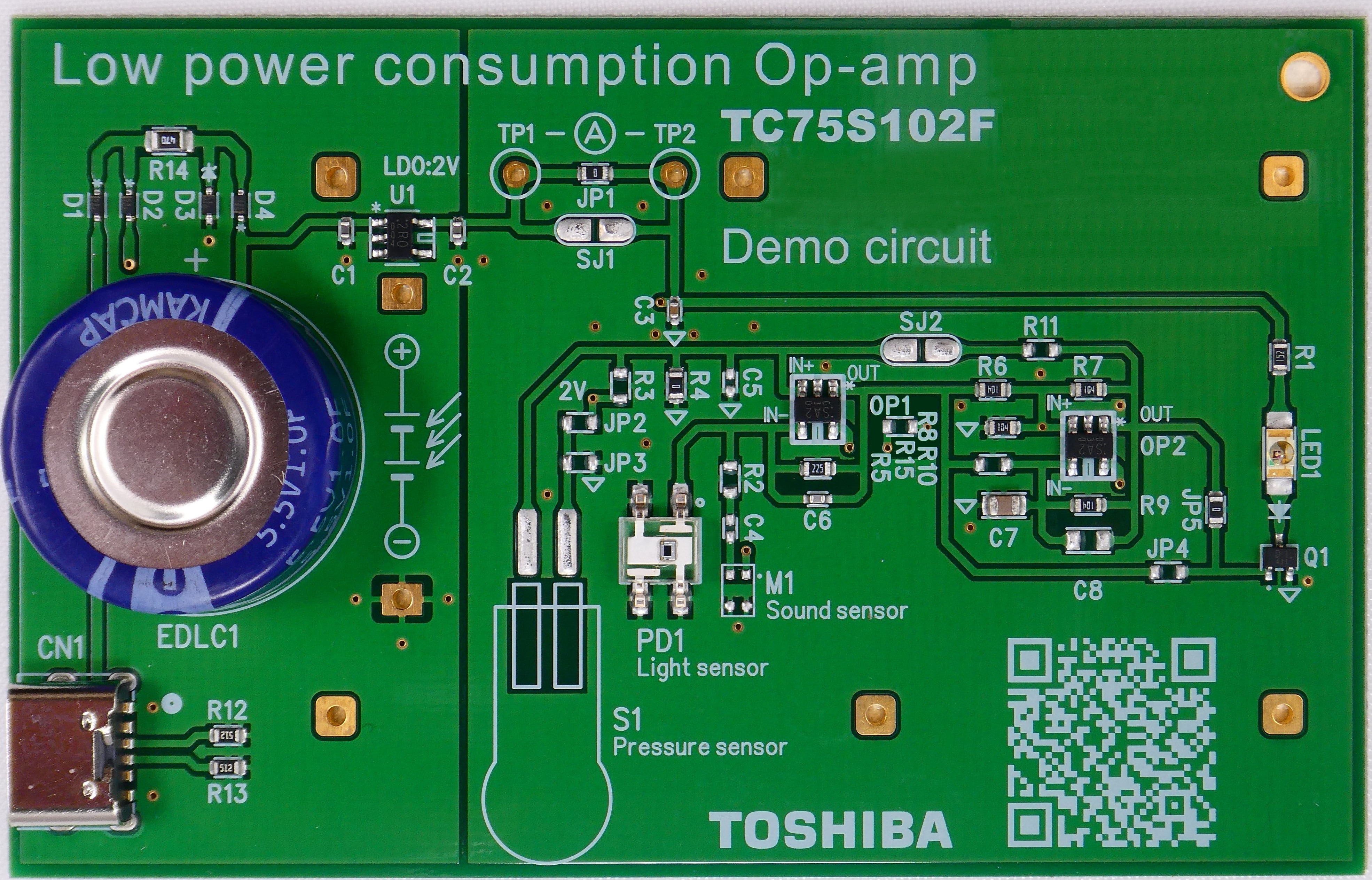

Low current consumption op-amp / Low noise op-amp

Small surface mount LDO regulator(1)

器件型號	TCR15AG Series	TCR13AG Series	TCR8BM Series	TCR5BM Series
Toshiba Package Name	WCSP6F	WCSP6F	DFN5B	DFN5B
I_OUT (Max) [mA]	1500	1300	800	500
V_OUT [V]	0.6 to 3.6	0.55 to 3.6	0.8 to 3.6	0.8 to 3.6

搜尋產品線

Small surface mount LDO regulator(2)

器件型號	TCR5RG Series	TCR3RM Series	TCR3U Series	TCR2L Series	TAR5 Series
Toshiba Package Name	WCSP4F	DFN4F	WCSP4F	SOT-553 (ESV)	SOT-25 (SMV)
I_OUT (Max) [mA]	500	300	300	200	200
V_OUT [V]	0.9 to 5.0	0.9 to 4.5	0.8 to 5.0	0.8 to 3.6	1.5 to 5.0

搜尋產品線

Low current consumption op-amp / Low noise op-amp

器件型號	TC75S102F	TC75S67TU
Toshiba Package Name	SOT-25 (SMV)	SOT-353F (UFV)
V_CC (Max) [V]	5.5	5.5
V_CC, V_EE (Max) [V]	+/-2.75	+/-2.75

搜尋產品線

Weight sensor circuit

Example of the circuit using operational amplifier for amplifying weight sensor signal

Small surface mount LDO regulator(1)
Small surface mount LDO regulator(2)
Low current consumption op-amp / Low noise op-amp

Small surface mount LDO regulator(1)

器件型號	TCR15AG Series	TCR13AG Series	TCR8BM Series	TCR5BM Series
Toshiba Package Name	WCSP6F	WCSP6F	DFN5B	DFN5B
I_OUT (Max) [mA]	1500	1300	800	500
V_OUT [V]	0.6 to 3.6	0.55 to 3.6	0.8 to 3.6	0.8 to 3.6

搜尋產品線

Small surface mount LDO regulator(2)

器件型號	TCR5RG Series	TCR3RM Series	TCR3U Series	TCR2L Series	TAR5 Series
Toshiba Package Name	WCSP4F	DFN4F	WCSP4F	SOT-553 (ESV)	SOT-25 (SMV)
I_OUT (Max) [mA]	500	300	300	200	200
V_OUT [V]	0.9 to 5.0	0.9 to 4.5	0.8 to 5.0	0.8 to 3.6	1.5 to 5.0
