Application Circuit of Low Noise Op-amp TC75S67TU for Current Sensor

The circuit used low noise op-amp TC75S67TU as sensing amplifier Introduction of current sensor application of TC75S67TU Current sensor application method and notes of TC75S67TU

Diagram of application circuit of Low Noise Op-amp TC75S67TU for current sensor.

Features

  • Super low noise level
  • Measure to 2A
  • Small board size

Description

  • The circuit used low noise op-amp TC75S67TU as sensing amplifier
  • Introduction of current sensor application of TC75S67TU
  • Current sensor application method and notes of TC75S67TU

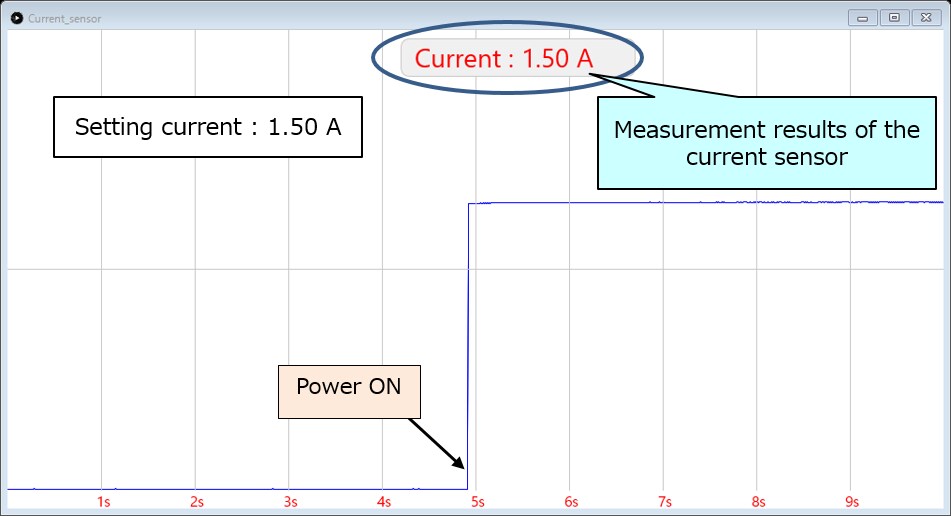

Waveform of application circuit of Low Noise Op-amp TC75S67TU for current sensor.
Waveform

Design Documents

Design Documents contain the documents below.

Design Data

Design Data contains the contents listed below.

*1:Actual PCB was designed on CR5000BD. The other files were made from CR5000BD file.

*2:The data was generated on CR5000BD.

Used Toshiba Items

Part Number Device Category Portion Usage Description
Op-amp (CMOS) Amplifier circuit・1 Single Op-amp (CMOS), 5.5 V, +/-2.75 V, SOT-353F(UFV)
