BAV99

This page partially uses JavaScript. This page may not operate normally when these functions are not supported by your browser or the setting is disabled.
Please look for the information you need from the following pages:

문의

Asia-Pacific - English

Asia-Pacific - 简体中文

Asia-Pacific - 繁體中文

Asia-Pacific - 한국어

Asia-Pacific - 日本語

Americas - English

Europe (EMEA) - English

Feature	High-speed switching
Internal Connection	Series
Number of Circuits	2
RoHS Compatible Product(s) (#)	Available

Package Information

Toshiba Package Name	SOT-23 (SOT23)
Package Image
JEDEC	TO-236AB
Package Code	SOT-23
Pins	3
Mounting	Surface Mount
Width×Length×Height (mm)	2.9×2.4×0.9
Package Dimensions	보기
Land pattern dimensions	보기
Ultra Librarian^® CAD model (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note1)(Note3)
SamacSys CAD model (Symbol, Footprint and 3D model)	Download from SamacSys (Note2)(Note3)

Please refer to the link destination to check the detailed size.

(Note1)	Ultra Librarian^® is a Registered trademark and CAD model library of EMA (EMA Design Automation, Inc.). CAD models (Symbol/Footprint /3D model) are provided by UltraLibrarian^®. The footprints are generated based on the specifications of Ultra Librarian^®.
(Note2)	SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.
(Note3)	Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

Absolute Maximum Ratings

Characteristics	Symbol	Rating	Unit
Average Forward Current	I_O	0.215	A
Reverse Voltage	V_R	100	V

Electrical Characteristics

Characteristics	Symbol	Condition	Value	Unit
Total Capacitance (Typ.)	C_T	V_R=0V f=1MHz	0.9	pF
Reverse Current (Max)	I_R	V_R=25V	0.03	μA
Reverse Current (Max)	I_R	V_R=80V	0.2	μA
Forward Voltage (Max)	V_F	I_F=1mA	0.715	V
Forward Voltage (Max)	V_F	I_F=10mA	0.855	V
Forward Voltage (Max)	V_F	I_F=50mA	1.00	V
Forward Voltage (Max)	V_F	I_F=150mA	1.25	V

Document

select all
If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Name
Date

Data sheet BAV99 Data sheet/Japanese

PDF: 325KB

Oct,2016

Data sheet BAV99 Data sheet/English

PDF: 218KB

Oct,2016

Simulation Model PSpice Model lib

lib: 1KB

Feb,2017

Simulation Model LTspice Model (Note) mod

mod: 10KB

Mar,2019

Reliability Information Reliability Data

PDF: 276KB

Sep,2024

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 85KB

Jan,2025

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 85KB

Jan,2025

Application Note Surface Mount Small Signal Diode Precautions for use

PDF: 946KB

Jul,2021

Catalog Mini catalog Introduction to Toshiba Switching Diode Line-up

PDF: 781KB

Dec,2024

Catalog Selection Guide Small Signal 2024 Rev2.0

PDF: 15538KB

Jul,2024

Catalog Mini catalog Introduction of Toshiba diode lineup for Industries

PDF: 943KB

Apr,2024

(Note)

LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	Note
BAV99,LM	3000		Yes	General Use

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.

Automotive Category Top

Body Electronics

xEV

In-Vehicle Infotainment

Advanced Driver-Assistance Systems (ADAS)

Chassis

Industrial Equipment Category Top

Infrastructure

BEMS/HEMS

Factory Automation

Commercial Equipment

Consumer / Personal Equipment Category Top

IoT Equipment

Healthcare

Wearable Device

Mobile

Computer Peripherals

Home Applicances

기타

Description

Package Information

Absolute Maximum Ratings

Electrical Characteristics

Document

Orderable part number

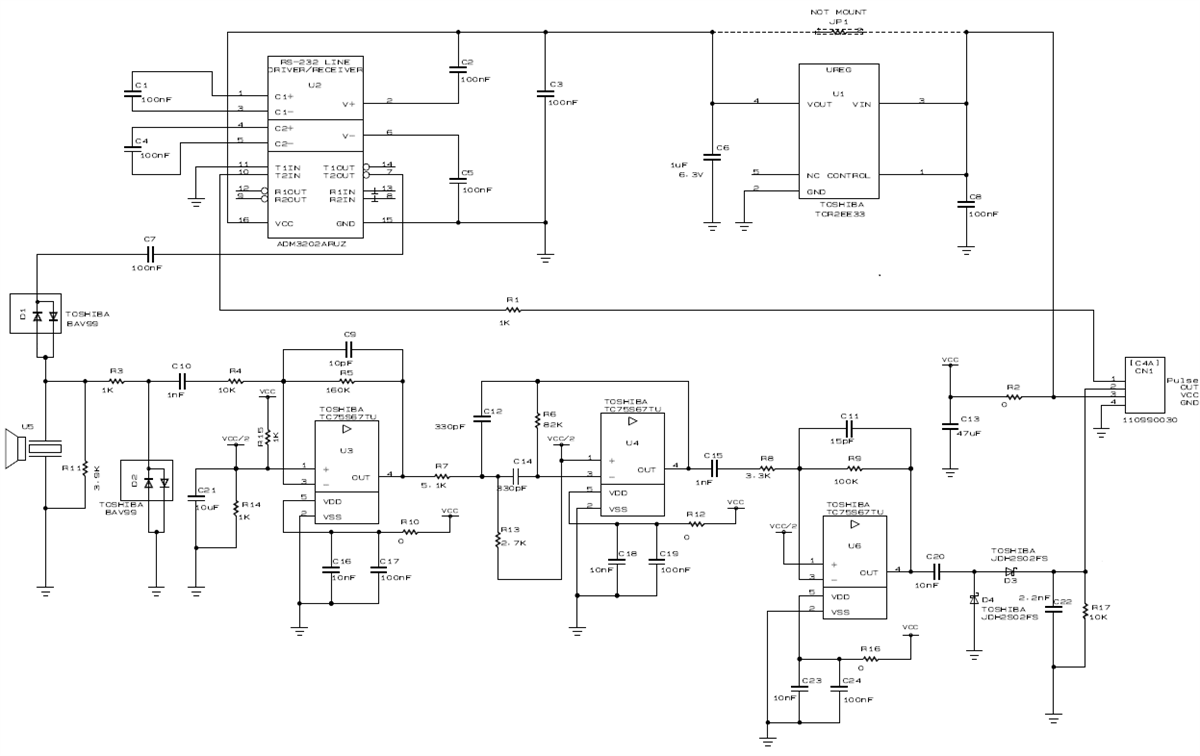

Reference Design
