TPH9R00CQ5

Power MOSFET (N-ch single 60V<VDSS≤150V)

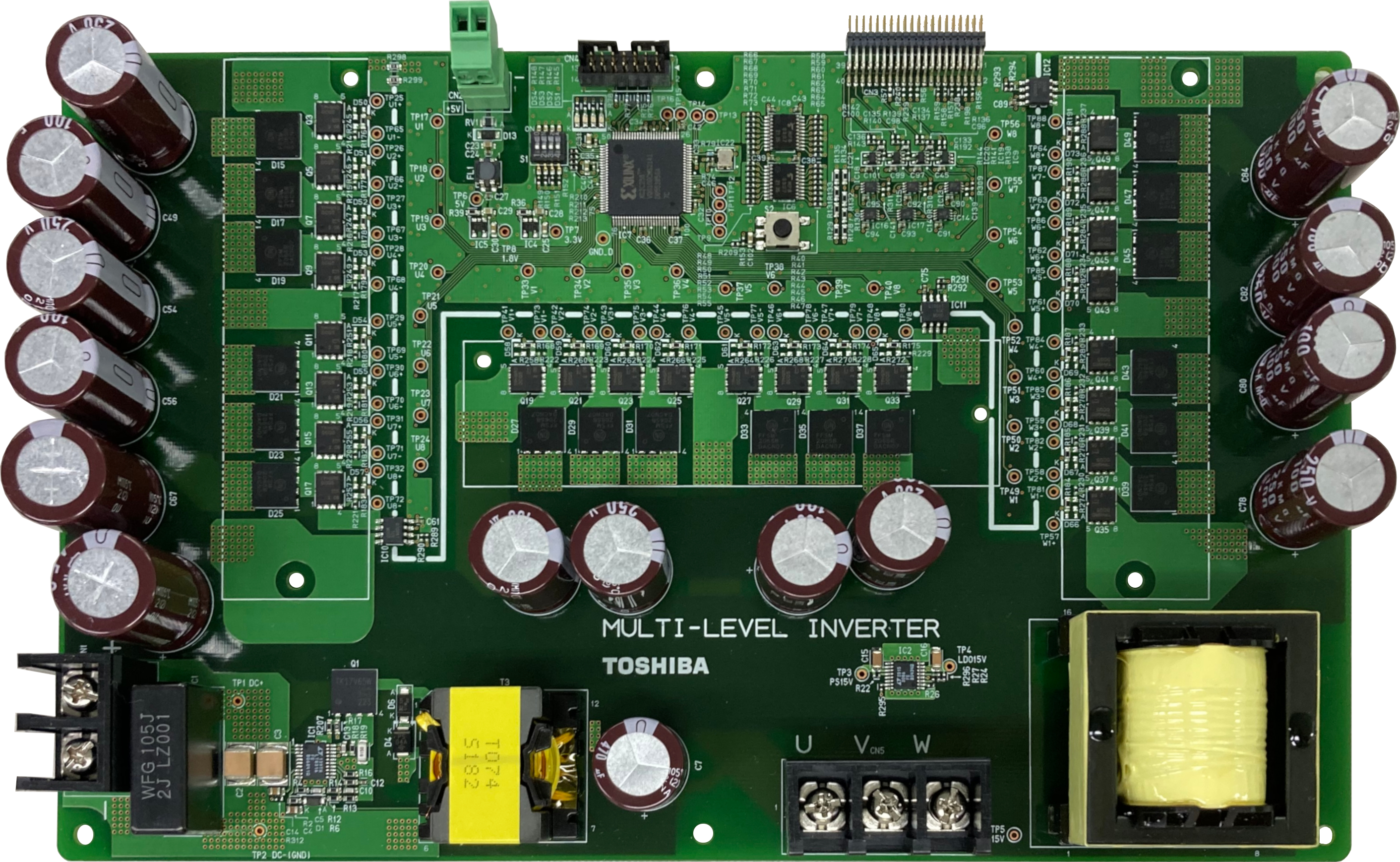

  • Related Reference Design(2)

Data sheet

TPH9R00CQ5 Data sheet/Japanese[May,2024]PDF: 742KB

Data sheet

TPH9R00CQ5 Data sheet/English[May,2024]PDF: 637KB

Simulation Model

PSpice Model[Nov,2022]ZIP: 42KB

Simulation Model

LTspice Model[Nov,2022]ZIP: 50KB

Simulation Model

SIMetrix Model[May,2024]ZIP: 10KB

Thermal Simulation Model

Simplified CFD Model[Oct,2023]ZIP: 17KB

Reliability Information

Reliability Data[Aug,2024]PDF: 142KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

PowerMOSFET U-MOSⅩ-H 150V[Apr,2023]PDF: 2305KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

Data sheet

TPH9R00CQ5 Data sheet/Japanese[May,2024]PDF: 742KB

Data sheet

TPH9R00CQ5 Data sheet/English[May,2024]PDF: 637KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

PowerMOSFET U-MOSⅩ-H 150V[Apr,2023]PDF: 2305KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Simulation Model

PSpice Model[Nov,2022]ZIP: 42KB

Simulation Model

LTspice Model[Nov,2022]ZIP: 50KB

Simulation Model

SIMetrix Model[May,2024]ZIP: 10KB

Thermal Simulation Model

Simplified CFD Model[Oct,2023]ZIP: 17KB

Reliability Information

Reliability Data[Aug,2024]PDF: 142KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

Description

Application Scope High-Efficiency DC-DC Converters / Switching Voltage Regulators / Motor Drivers
Polarity N-ch
Generation U-MOSⅩ-H
Internal Connection Single
RoHS Compatible Product(s) (#) Available

Package Information

Toshiba Package Name SOP Advance / SOP Advance(N)
Package Image SOP Advance / SOP Advance(N)
Pins 8
Mounting Surface Mount

 Please refer to the link destination to check the detailed size.

Absolute Maximum Ratings

Characteristics Symbol Rating Unit
Drain-Source voltage VDSS 150 V
Gate-Source voltage VGSS +/-20 V
Drain current ID 64 A
Power Dissipation PD 210 W

Electrical Characteristics

Characteristics Symbol Condition Value Unit
Gate threshold voltage (Max) Vth - 4.5 V
Gate threshold voltage (Min) Vth - 3.1 V
Drain-Source on-resistance (Max) RDS(ON) |VGS|=8V 11 mΩ
Drain-Source on-resistance (Max) RDS(ON) |VGS|=10V 9 mΩ
Input capacitance (Typ.) Ciss - 3500 pF
Total gate charge (Typ.) Qg VGS=10V 44 nC
Output charge (Typ.) Qoss - 87 nC
Reverse recovery time (Typ.) trr - 40 ns
Reverse recovery charge (Typ.) Qrr - 34 nC
Purchase and Sample
Please contact one of Toshiba's official distributors or the nearest Toshiba sales office.
You can search for and purchase a small on-line sample by clicking on the following link.
