Inkjet Printer

Inkjet Printer

Such as efficiency of motor driving, low power consumption and miniaturization are important in designing inkjet printer. Toshiba provides information on a wide range of semiconductor products suitable for power supply unit, engine (motor driving) units, scanner unit, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 Ink Tank Unit Ink Tank Unit CR* Unit CR* Unit LF* Unit LF* Unit Ink Detect Unit Ink Detect Unit PF* Motor PF* Motor ASF* Motor ASF* Motor Sensor Sensor Sensor Sensor Sensor Sensor LF* Motor LF* Motor CR* Motor CR* Motor Heater Heater Print Head Print Head Head Driver Head Driver Heater Driver Heater Driver Touch Screen Touch Screen LCD Panel LCD Panel Back Light Back Light Analog Front End Analog Front End Light Source Light Source Scanner Motor Scanner Motor Sensor Sensor ADF* Motor ADF* Motor Fax Modem Fax Modem Sensor Sensor LED Driver / MOSFET LED Driver / MOSFET LED Driver / MOSFET LED Driver / MOSFET Linear Image Sensor Linear Image Sensor Protection Protection Display Control MCU Display Control MCU MCD MCD MCD MCD MCD MCD MCD MCD MCD MCD MCD MCD Memory Memory Signal Interfaces Signal Interfaces Power Supply Power Supply Protection Protection Print Engine Block Print Engine Block Display Block Display Block Input Block Input Block USB USB Ethernet Ethernet Wi-Fi 🄬 Wi-Fi 🄬 NFC NFC Bluetooth 🄬 Bluetooth 🄬 Note (*) ADF: Auto Document Feeder PF: Paper Feed ASF: Auto S... Note (*) ADF: Auto Document Feeder PF: Paper Feed ASF: Auto Sheet Feeder CR: Carriage Return LF: Line Feed ASIC (MCU) ASIC(MCU) Display block Scanner block USB circuit ADF block Power supply circuit Print engine block
Power supply circuit

Example of flyback type AC-DC converter circuit

Display block

Example of load switch circuit for ON/OFF control of LCD backlight

Scanner block

Example of load switch circuit for ON/OFF control of scanner light source

USB circuit

Example of ESD protection circuit for USB signal line

ADF block

Example of auto document feeder (ADF) circuit

Print engine block

Example of print engine block circuit

Sub block diagram

Power supply circuit
Power supply circuit

Example of flyback type AC-DC converter circuit

Example of flyback type AC-DC converter circuit
π-MOS Series MOSFET
Part Number
TK2K2A60F
Toshiba Package Name TO-220SIS
VDSS (Max) [V] 600
ID (Max) [A] 3.5
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 2.2
Polarity N-ch
Search for lineup
Transistor output photocoupler
Part Number
TLP383
TLP385
TLP387
TLP388
Toshiba Package Name 4pin SO6L 4pin SO6L 4pin SO6L 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000 5000
VCEO (Max) [V] 80 80 300 350
Topr [°C] -55 to 125 -55 to 110 -55 to 110 -55 to 125
Search for lineup
Bipolar transistor
Part Number
TMBT3904
Toshiba Package Name SOT-23 (SOT23)
VCEO (Max) [V] 50
IC (Max) [A] 0.2
Polarity NPN
Search for lineup
Schottky barrier diode
Part Number
CMS15
CUHS20F60
Toshiba Package Name M-FLAT SOD-323HE (US2H)
VRRM (Max) [V] 60
VR (Max) [V]   60
CT (Typ.) [pF]   300
Search for lineup
Fast recovery diode
Part Number
CRF03A
Toshiba Package Name S-FLAT
VRRM (Max) [V] 600
IF(AV) (Max) [A] 0.7
Search for lineup
Display block
Display block

Example of load switch circuit for ON/OFF control of LCD backlight

Example of load switch circuit for ON/OFF control of LCD backlight
TVS diode
Part Number
DF2B5M4ASL
DF2B6M4ASL
DF2B6USL
DF6D6UFE
DF2B6M4BSL
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOT-563 (ES6) SOD-962 (SL2)
VESD (Max) [kV] +/-16 +/-15 +/-10 +/-10 +/-8
IR (Max) [µA] 0.1 0.1 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.7 0.7 0.25 0.25 1.05
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 0.15 0.15 1.5 1.5 0.12
Search for lineup
MCU
Series TX00 Series
Group M060 Series
Search for lineup
Small signal MOSFET
Part Number
SSM3K35FS
SSM3K35AFS
SSM3J35FS
SSM3J35AFS
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-416 (SSM) SOT-416 (SSM)
VDSS (Max) [V] 20 20 -20 -20
ID (Max) [A] 0.18 0.25 -0.1 -0.25
RDS(ON) (Max) [Ω] @ |VGS| = 2.5 [V] 4.0 1.6 11 2.1
Polarity N-ch N-ch P-ch P-ch
Search for lineup
Scanner block
Scanner block

Example of load switch circuit for ON/OFF control of scanner light source

Example of load switch circuit for ON/OFF control of scanner light source
Stepping motor driver
Part Number
TB67S511FTAG
TB67S512FTAG
TB67S521FTAG
TB67S522FTAG
TB67S539FTG
TB67S549FTG
Toshiba Package Name P-WQFN36-0606-0.50-002 P-WQFN36-0606-0.50-002 P-WQFN36-0606-0.50-002 P-WQFN36-0606-0.50-002 P-VQFN32-0505-0.50-004 P-VQFN24-0404-0.50-004
VOUT (Max) [V] 40 40 40 40 40 40
IOUT (Max) [A] 2 2 2.8 2.8 2.0 1.5
VM [V] 10 to 35 10 to 35 10 to 35 10 to 35 4.5 to 33 4.5 to 33
RON (Typ.) [Ω] 0.8 0.8 0.53 0.53 0.8 1.2
Search for lineup
Small signal MOSFET
Part Number
SSM3K35FS
SSM3K35AFS
SSM3J35FS
SSM3J35AFS
Toshiba Package Name SOT-416 (SSM) SOT-416 (SSM) SOT-416 (SSM) SOT-416 (SSM)
VDSS (Max) [V] 20 20 -20 -20
ID (Max) [A] 0.18 0.25 -0.1 -0.25
RDS(ON) (Max) [Ω] @ |VGS| = 2.5 [V] 4.0 1.6 11 2.1
Polarity N-ch N-ch P-ch P-ch
Search for lineup
USB circuit
USB circuit

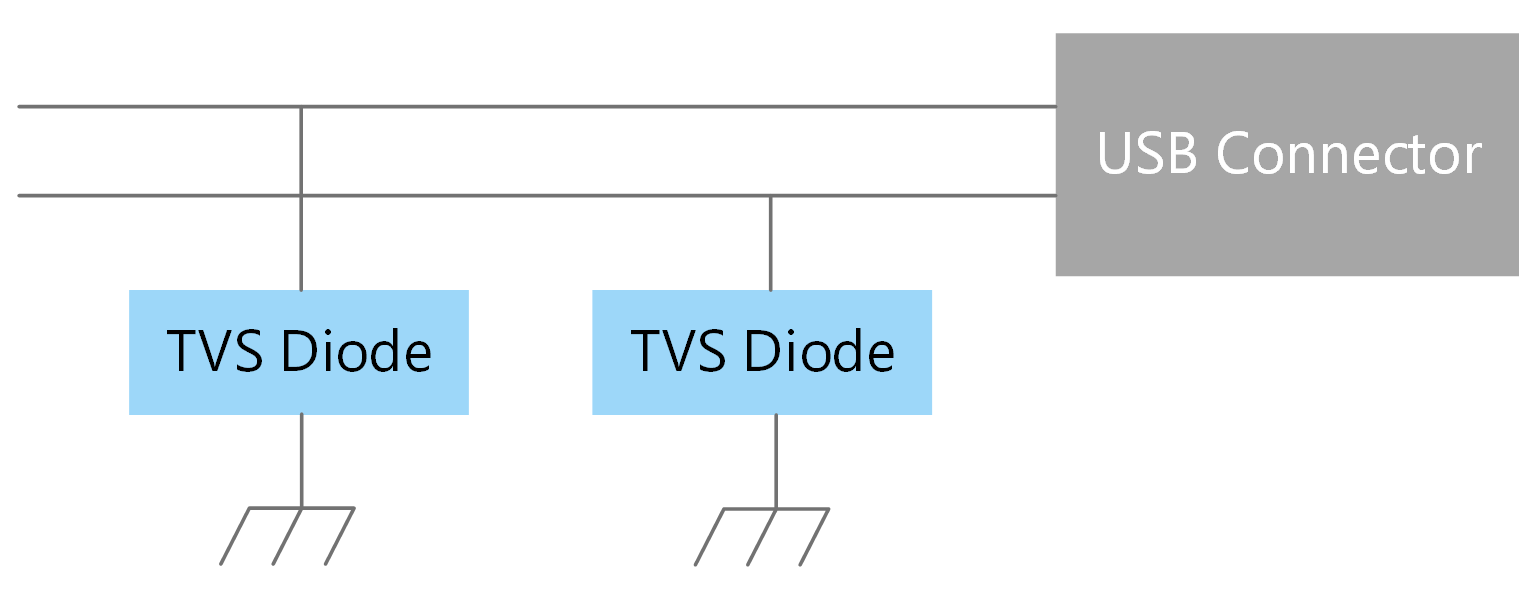

Example of ESD protection circuit for USB signal line

Example of ESD protection circuit for USB signal line
TVS diode
Part Number
DF2B5M4ASL
DF2B6M4ASL
DF2B6USL
DF6D6UFE
DF2B6M4BSL
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2) SOT-563 (ES6) SOD-962 (SL2)
VESD (Max) [kV] +/-16 +/-15 +/-10 +/-10 +/-8
IR (Max) [µA] 0.1 0.1 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.7 0.7 0.25 0.25 1.05
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 0.15 0.15 1.5 1.5 0.12
Search for lineup
ADF block
ADF block

Example of auto document feeder (ADF) circuit

Example of auto document feeder (ADF) circuit
Stepping motor driver
Part Number
TB67S511FTAG
TB67S512FTAG
TB67S521FTAG
TB67S522FTAG
TB67S539FTG
TB67S549FTG
Toshiba Package Name P-WQFN36-0606-0.50-002 P-WQFN36-0606-0.50-002 P-WQFN36-0606-0.50-002 P-WQFN36-0606-0.50-002 P-VQFN32-0505-0.50-004 P-VQFN24-0404-0.50-004
VOUT (Max) [V] 40 40 40 40 40 40
IOUT (Max) [A] 2 2 2.8 2.8 2.0 1.5
VM [V] 10 to 35 10 to 35 10 to 35 10 to 35 4.5 to 33 4.5 to 33
RON (Typ.) [Ω] 0.8 0.8 0.53 0.53 0.8 1.2
Search for lineup
1ch brushed DC motor driver
Part Number
TB67H450AFNG
TB67H451AFNG
Toshiba Package Name P-HSOP8-0405-1.27-002 P-HSOP8-0405-1.27-002
VOUT (Max) [V] 50 50
IOUT (Max) [A] 3.5 3.5
VM [V] 4.5 to 44 4.5 to 44
RON(Normal) (Typ.) [Ω] 0.6 0.6
RON(Large) (Typ.) [Ω]
Search for lineup
Print engine block
Print engine block

Example of print engine block circuit

Example of print engine block circuit
Stepping motor driver with a built-in AGC
Part Number
TB67S128FTG
TB67S289FTG
Toshiba Package Name P-VQFN64-0909-0.50-006 P-VQFN48-0707-0.50-004
VOUT (Max) [V] 50 50
IOUT (Max) [A] 5 3
VM [V] 6.5 to 44 10 to 47
RON (Typ.) [Ω] 0.25 0.4
Search for lineup
2ch brushed DC motor driver
Part Number
TB67H400AFTG
TB67H410FTG
TB67H420FTG
Toshiba Package Name P-WQFN48-0707-0.50-003 P-WQFN48-0707-0.50-003 P-VQFN48-0707-0.50-004
VOUT (Max) [V] 50 50 50
IOUT (Max) [A]     4.5
VM [V] 10 to 47 10 to 47 10 to 47
RON(Normal) (Typ.) [Ω] 0.49 0.8 0.33
RON(Large) (Typ.) [Ω] 0.245 0.4 0.165
Search for lineup

Solution Proposal

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Solution Proposal
SolutionProposal_Inkjet Printer / English (PDF:1.7MB)
SolutionProposal_Inkjet Printer / Japanese (PDF:2.3MB)
