TMPM374FWUG

TX03

  • Related Reference Design(4)

Data sheet

TMPM374FWUG Data sheet/Japanese[Jul,2023]PDF: 9736KB

Data sheet

TMPM374FWUG Data sheet/English[Jul,2023]PDF: 11371KB

White Paper

Toshiba Original Motor Control Technology VECTOR ENGINE[Jan,2025]PDF: 630KB

Reliability Information

Reliability Data[Nov,2022]PDF: 140KB

Catalog

Part Number List:32-Bit Microcontrollers[Apr,2019]PDF: 774KB

Data sheet

TMPM374FWUG Data sheet/Japanese[Jul,2023]PDF: 9736KB

Data sheet

TMPM374FWUG Data sheet/English[Jul,2023]PDF: 11371KB

White Paper

Toshiba Original Motor Control Technology VECTOR ENGINE[Jan,2025]PDF: 630KB

Reliability Information

Reliability Data[Nov,2022]PDF: 140KB

Catalog

Part Number List:32-Bit Microcontrollers[Apr,2019]PDF: 774KB

Description

Description High-performance microcontroller containing hardware "Vector Engine" for handling routine computations for motor vector control and compact package variation, realizing 5-V single-supply operation.
NANO FLASH™
RoHS Compatible Product(s) (#) Available

Arm and Cortex are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

NANO FLASH is a trademark of Toshiba Electronic Devices & Storage Corporation.

Package Information

Toshiba Package Name LQFP44-P-1010-0.80A
Package Image LQFP44-P-1010-0.80A
Pins 44
Mounting Surface Mount
Package Dimensions 보기
Land pattern dimensions 보기
SamacSys CAD model
(Symbol, Footprint and 3D model)		 Download from SamacSys<br>(Note1)(Note2)

Download from SamacSys
(Note1)(Note2)

 Please refer to the link destination to check the detailed size.

(Note1)

SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.

(Note2)

Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

Description

Property Value Unit
Group Name M370 -
Number of bits 32 bit
ROM size 128 Kbyte
ROM type Flash -
RAM size 6 Kbyte
internal data bus width 32 bit
I/O Port 33 port
UART/SIO 3 ch
vector engine Available -
Timer/counter(16bit) 8 ch
3-phase PWM output 1 ch
A/D converters(12bit) 6 ch
watchdog timer Available -
Power-on reset circuit Available -
Voltage detecting circuit Available -
Oscillation frequency detector Available -
On-chip debug function Available -
Clock gear function Available -
Interrupt controllers 7 pins
incremental encoder input 1 ch
Multiply and accumulation unit Available -
Supply Voltage
(V)		 Operation Frequency
(MHz)		 Operating Temp
(degC)		 Minimum instruction
execution time (µsec)
4.5 to 5.5 1 to 80 -40 to 85 0.0125
4.5 to 5.5 1 to 40 -40 to 105 0.025

Development Systems

Purchase and Sample
Please contact one of Toshiba's official distributors or the nearest Toshiba sales office.
You can search for and purchase a small on-line sample by clicking on the following link.

Document

  • If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Nov,2022

Reference Design

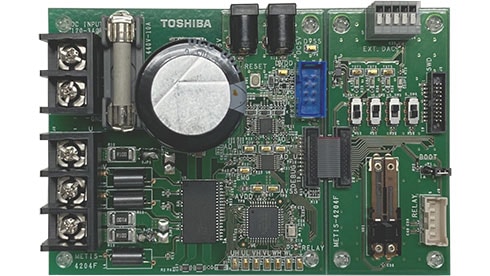

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4204F
DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4204F
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power Device. It achieves vector control with the MCU designed for Motor control.
세부 사항

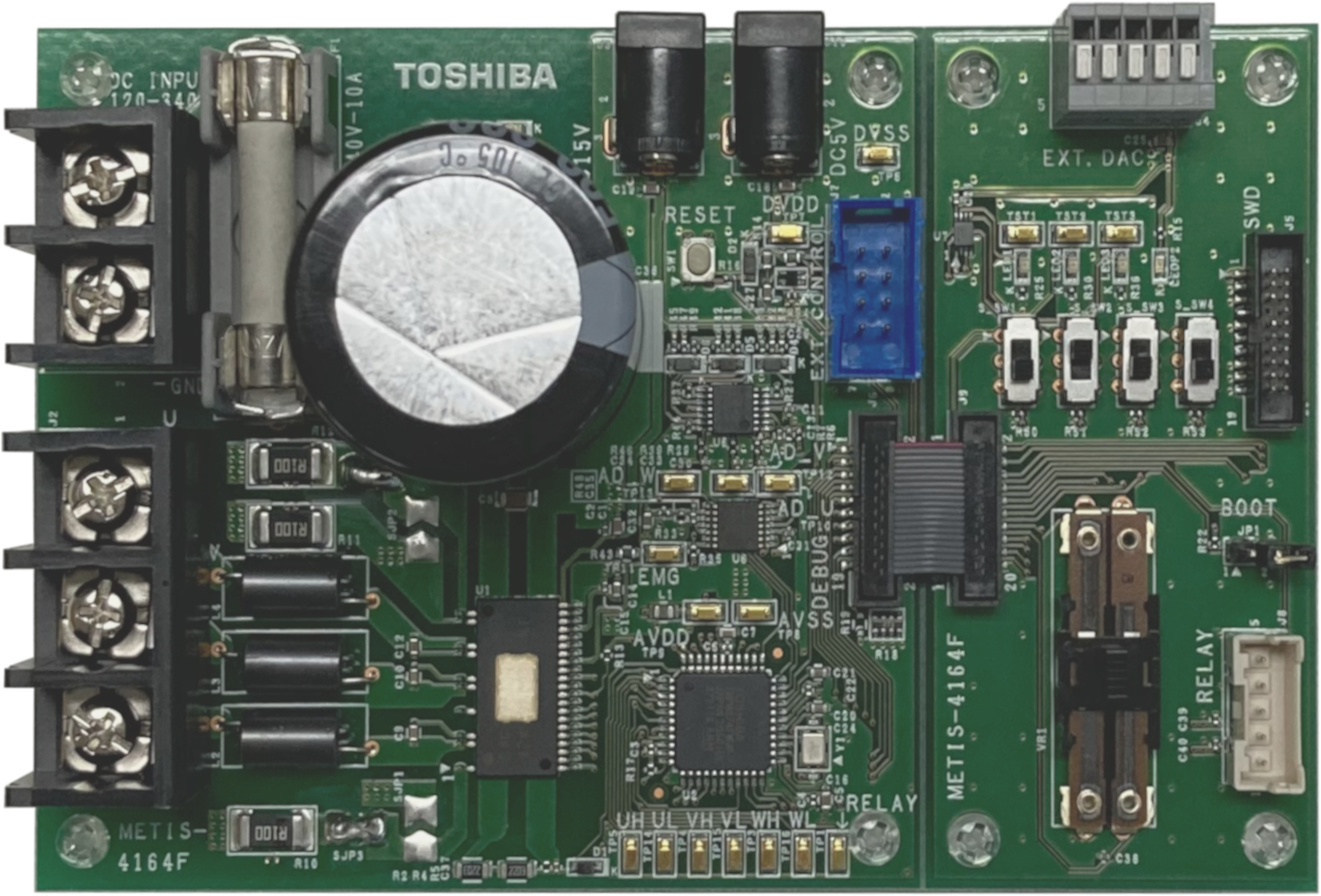

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164F
DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164F
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.
세부 사항
DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164K
DC 300 V Input BLDC Motor Sensorless Control Circuit Using TPD4164K
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.
세부 사항

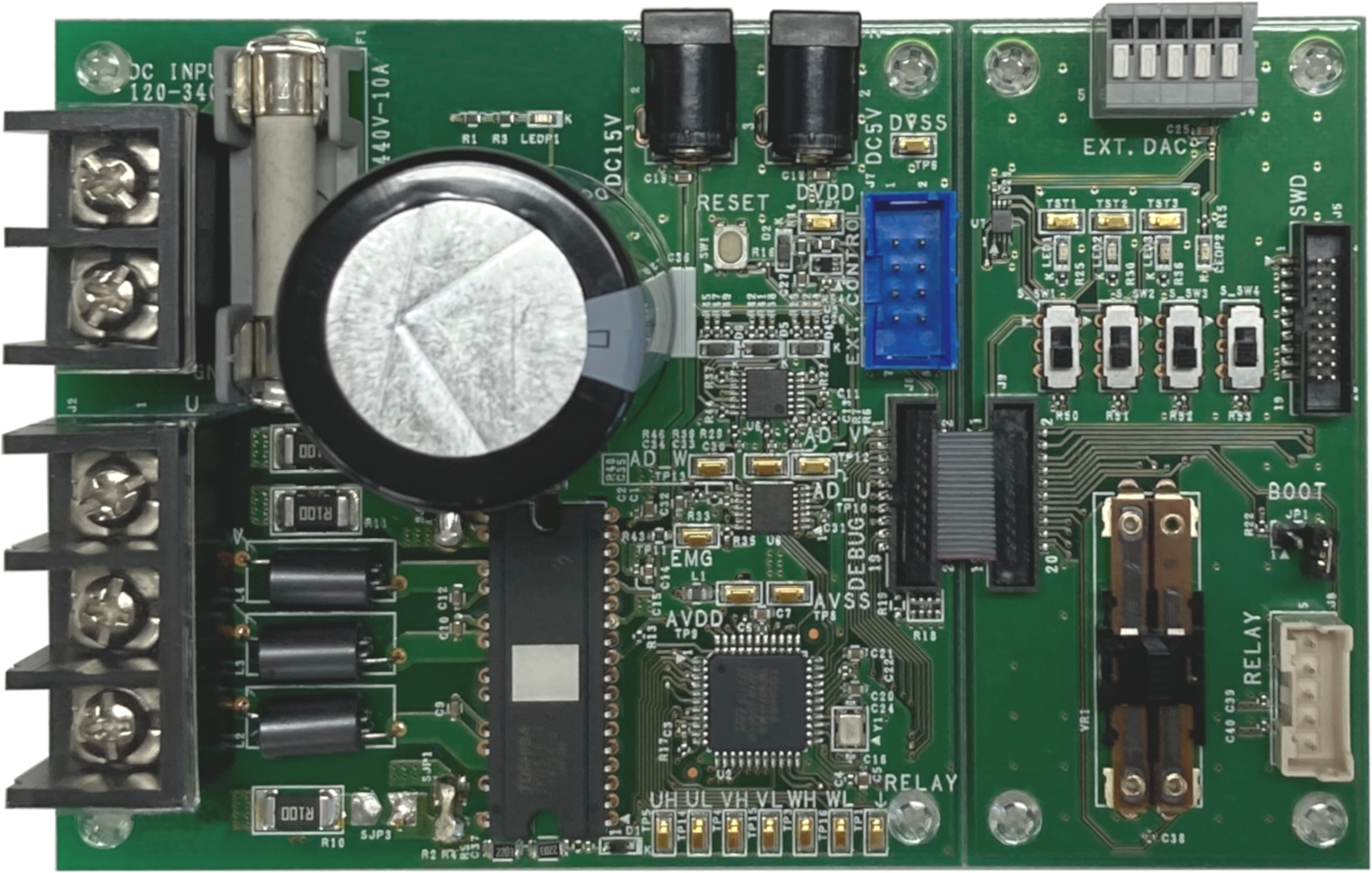

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4165K
DC 300 V Input BLDC Motor Sensorless Control Circuit Using TPD4165K
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.
세부 사항
