TMPM374FWUG

TX03

  • 相關參考設計(4)

數據表

TMPM374FWUG 數據表/日文[Jul,2023]PDF: 9736KB

數據表

TMPM374FWUG 數據表/英文[Jul,2023]PDF: 11371KB

White Paper

Toshiba Original Motor Control Technology VECTOR ENGINE[Jan,2025]PDF: 630KB

Reliability Information

Reliability Data[Nov,2022]PDF: 140KB

Catalog

Part Number List:32-Bit Microcontrollers[Apr,2019]PDF: 774KB

數據表

TMPM374FWUG 數據表/日文[Jul,2023]PDF: 9736KB

數據表

TMPM374FWUG 數據表/英文[Jul,2023]PDF: 11371KB

White Paper

Toshiba Original Motor Control Technology VECTOR ENGINE[Jan,2025]PDF: 630KB

Reliability Information

Reliability Data[Nov,2022]PDF: 140KB

Catalog

Part Number List:32-Bit Microcontrollers[Apr,2019]PDF: 774KB

產品概要

Description High-performance microcontroller containing hardware "Vector Engine" for handling routine computations for motor vector control and compact package variation, realizing 5-V single-supply operation.
NANO FLASH™
RoHS Compatible Product(s) (#) Available

Arm and Cortex are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

NANO FLASH is a trademark of Toshiba Electronic Devices & Storage Corporation.

包裝資訊

Toshiba Package Name LQFP44-P-1010-0.80A
Package Image LQFP44-P-1010-0.80A
Pins 44
Mounting Surface Mount
Package Dimensions 檢視
Land pattern dimensions 檢視
SamacSys CAD model
(Symbol, Footprint and 3D model)		 Download from SamacSys<br>(Note1)(Note2)

Download from SamacSys
(Note1)(Note2)

 Please refer to the link destination to check the detailed size.

(Note1)

SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.

(Note2)

Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

概要

屬性 值 單位
Group Name M370 -
Number of bits 32 bit
ROM size 128 Kbyte
ROM type Flash -
RAM size 6 Kbyte
internal data bus width 32 bit
I/O Port 33 port
UART/SIO 3 ch
vector engine Available -
Timer/counter(16bit) 8 ch
3-phase PWM output 1 ch
A/D converters(12bit) 6 ch
watchdog timer Available -
Power-on reset circuit Available -
Voltage detecting circuit Available -
Oscillation frequency detector Available -
On-chip debug function Available -
Clock gear function Available -
Interrupt controllers 7 pins
incremental encoder input 1 ch
Multiply and accumulation unit Available -
工作電壓
（V）		 工作頻率
（MHz）		 工作溫度
（degC）		 最短命令執行時間
（μsec）
4.5 to 5.5 1 to 80 -40 to 85 0.0125
4.5 to 5.5 1 to 40 -40 to 105 0.025

Development Systems

購買及樣品申請
請聯繫東芝的官方經銷商之一或最近的東芝銷售辦事處
點選以下連結搜索和購買小量樣品

文檔

  • 如果沒看到確認框則對應文件目前無法下載

Nov,2022

參考設計

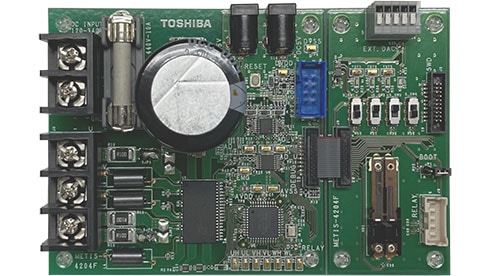

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4204F
使用 TPD4204F 的直流 300 V 輸入 BLDC 馬達無傳感器控制電路
該參考設計提供了使用智能功率器件的直流 300 V 輸入 BLDC 馬達無傳感器控制電路的設計指南、數據和其他內容。它通過專為電機控製而設計的MCU實現向量控制。
詳細資料

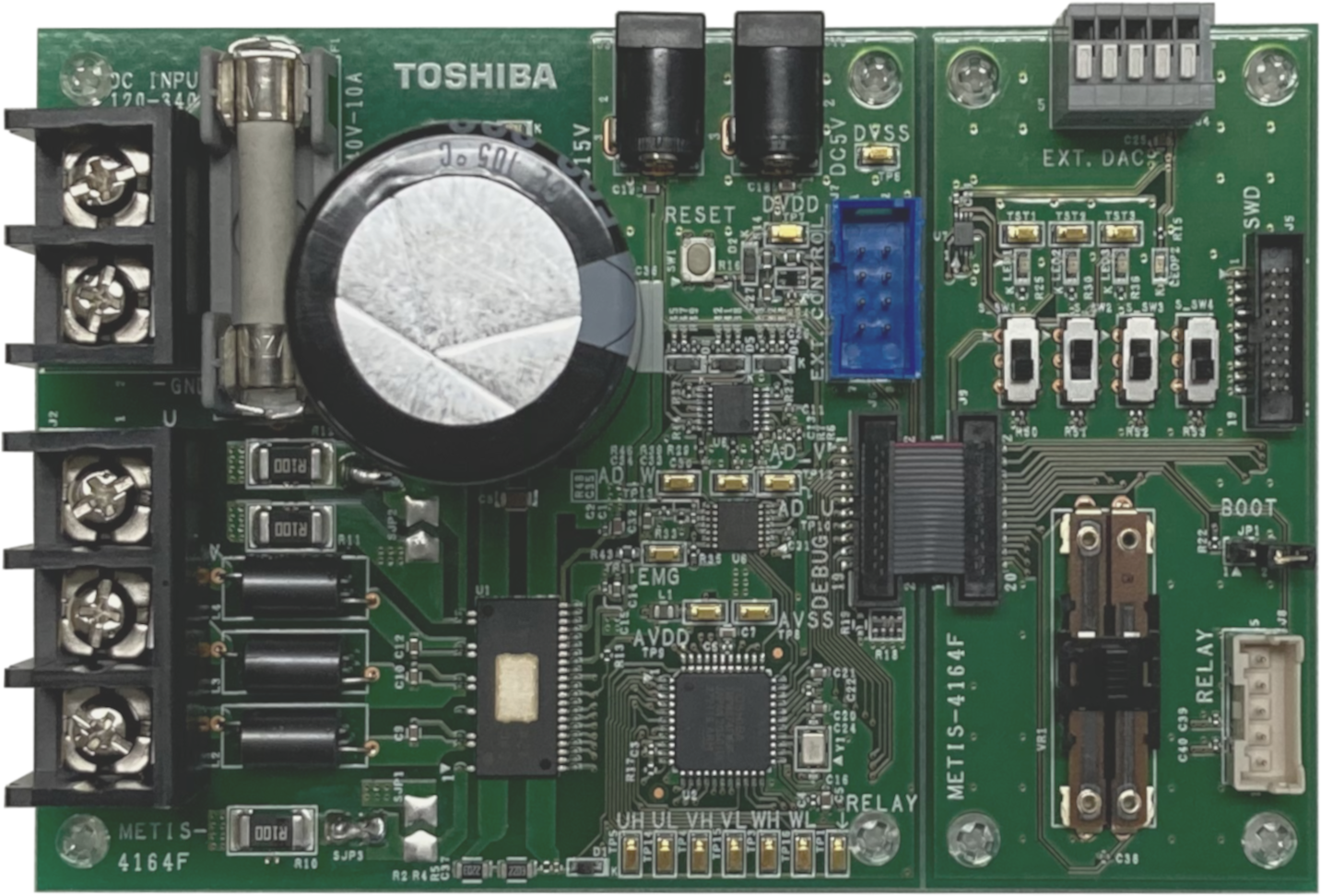

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164F
DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164F
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.
詳細資料
DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164K
DC 300 V Input BLDC Motor Sensorless Control Circuit Using TPD4164K
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.
詳細資料

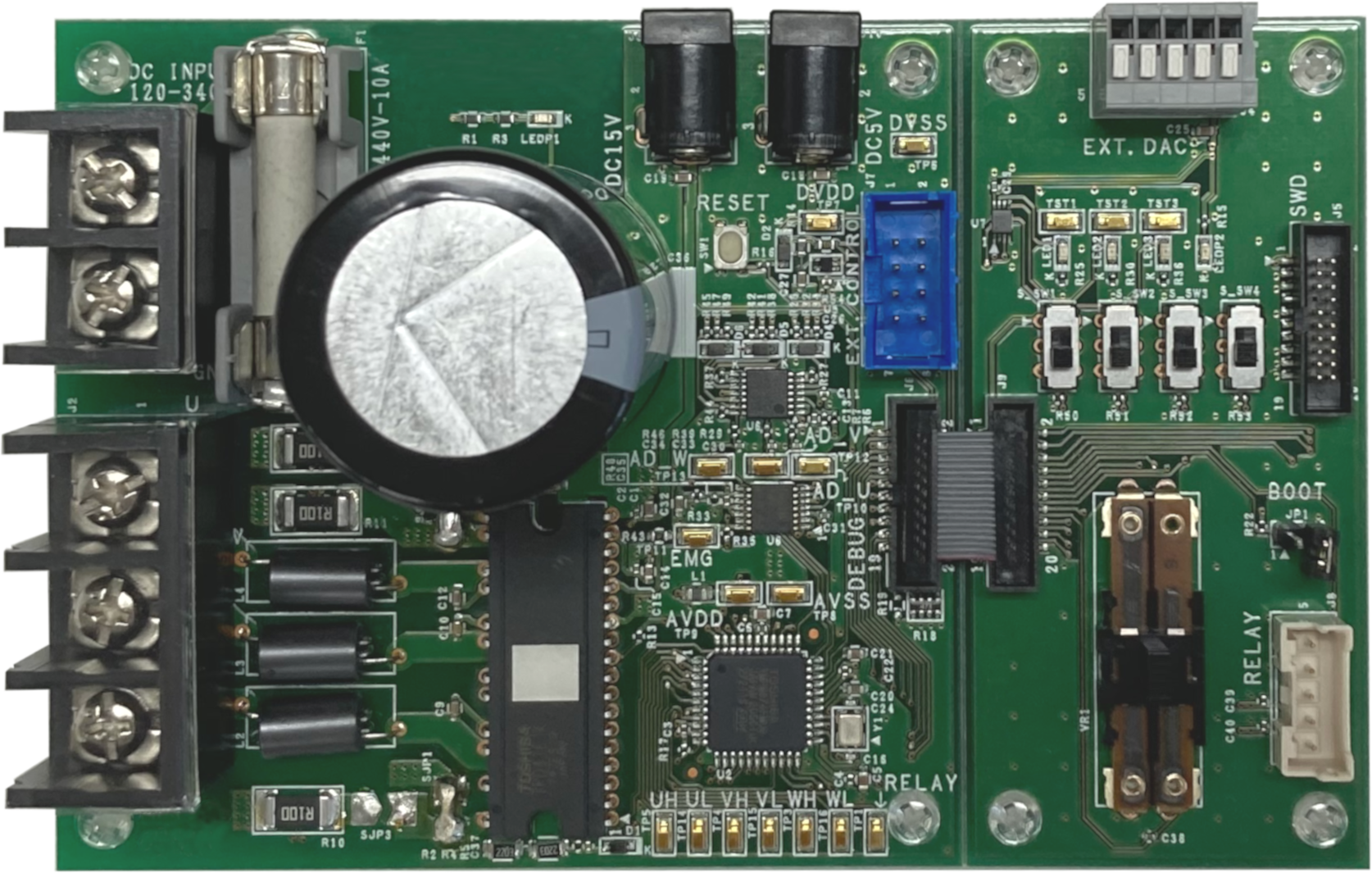

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4165K
DC 300 V Input BLDC Motor Sensorless Control Circuit Using TPD4165K
This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.
詳細資料
