IH coil drive circuit (using discrete components)
Example of IH voltage resonance circuit for driving IGBT with bipolar transistors
Lineup
Discrete IGBT
Part number |
GT30J110SRA | GT20N135SRA | GT30N135SRA | |
|---|---|---|---|---|
Package |
TO-247 | |||
VCES [V] |
1000 |
1100 | 1350 | 1350 |
tf (Typ.) [μs] |
0.11 @IC = 60 A |
0.17 @IC = 60 A |
0.25 @IC= 40 A |
0.25 @IC= 60 A |
| VCE(sat) (Typ.) [V] | 1.9 @IC = 60 A |
2.15 @IC = 60 A |
2.0 @IC = 40 A |
2.15 @IC = 60 A |

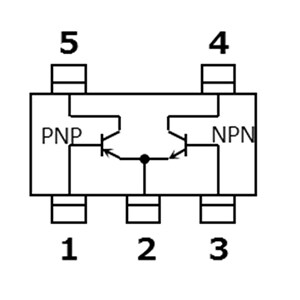

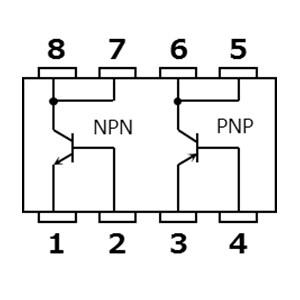

Bipolar transistor for IGBT gate drive
Main control MCU
| Part number | |
|---|---|
Maximum operation frequency |
40 MHz |
Instruction ROM |
64 KB |
RAM |
8 KB |
Arm® Thumb®-2 Instruction set |
Available |
Timer |
16bit x 8ch |
| I2C | 1ch |
| AD converter | 10ch (12bit) |
