LDO Regulator TCR15AG (fixed output voltage type) Application & Circuit

This reference design provides document with PSRR, dynamic response and controlling output voltage.The LDO has very small package and fixed output voltage for consumer application.

Power supply circuit example of LDO regulator TCR15AG (fixed output voltage type) application & circuit.

Features

  • Ultra small package WCSP6F (0.8 mm x 1.2 mm (typ.), t: 0.33 mm (max))
  • Wide range output voltage (0.65 V to 3.6 V)
  • Fast load transient response -100 / +115 mV (typ.)@ 0.01 A⇔1.5 A, COUT = 4.7 μF
  • High ripple rejection ratio 95 dB (typ.)@1 kHz
  • Overcurrent protection function
  • Thermal shutdown function
  • Auto-discharge function
  • Inrush current reduction function ( output voltage soft start )
  • Under voltage lockout function: 0.5 V (typ.)

Description

  • The TCR15AG series are available in capable of driving up to 1.5 A, these devices are ideal for portable applications that require high-density board assembly such as cellular phones.
  • This voltage regulators are fixed output voltage type and have 46 output voltage linups from 0.65 V to 3.6 V.
  • As small ceramic input and output capacitors can be used with the TCR15AG series.

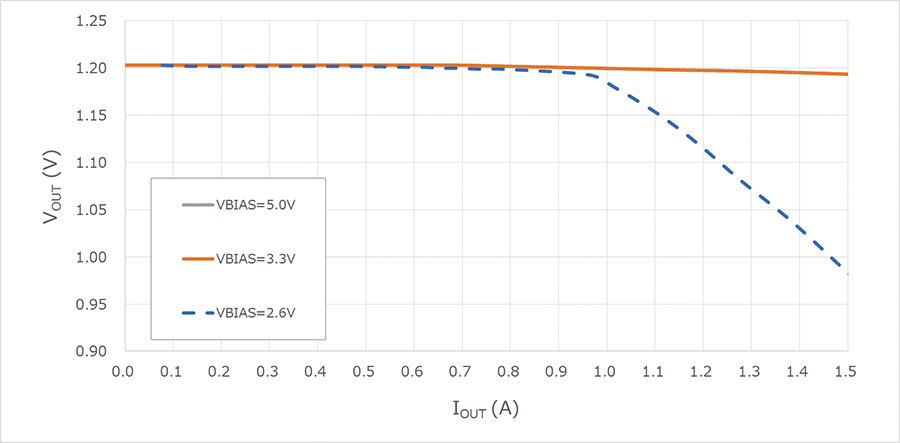

Dropout voltage characteristics of LDO regulator TCR15AG (fixed output voltage type) application & circuit.
Dropout voltage characteristics

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

Related Documents

We provide materials useful for designing and considering similar circuits, such as application notes for installed products. Please click on each tab to view the contents.
