Application Scope	DC-DC Converters / Automotive / Switching Voltage Regulators / Motor Drivers
Polarity	N-ch
Generation	U-MOSⅧ-H
Internal Connection	Single
PPAP	Capable(*)
AEC-Q101	Qualified(*)
RoHS Compatible Product(s) (#)	Available

Package Information

Toshiba Package Name	TSON Advance(WF)
Package Image
Pins	8
Mounting	Surface Mount
Width×Length×Height (mm)	3.3×3.6×0.85
Package Dimensions	보기
Land pattern dimensions	보기
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

Absolute Maximum Ratings

Characteristics	Symbol	Rating	Unit
Drain-Source voltage	V_DSS	40	V
Gate-Source voltage	V_GSS	+/-20	V
Drain current	I_D	20	A
Power Dissipation	P_D	65	W

Electrical Characteristics

Characteristics	Symbol	Condition	Value	Unit
Gate threshold voltage (Max)	V_th	-	2.5	V
Gate threshold voltage (Min)	V_th	-	1.5	V
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=4.5V	14.2	mΩ
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=10V	7.1	mΩ
Input capacitance (Typ.)	C_iss	-	1290	pF
Total gate charge (Typ.)	Q_g	V_GS=10V	21	nC

Document

select all
If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Name
Date

Data sheet XPN7R104NC Data sheet/Japanese

PDF: 669KB

Jun,2020

Data sheet XPN7R104NC Data sheet/English

PDF: 568KB

Jun,2020

Simulation Model PSpice Model ZIP

ZIP: 42KB

Jun,2021

Simulation Model LTspice Model (Note1) ZIP

ZIP: 46KB

Jul,2021

Simulation Model SIMetrix Model (Note2) ZIP

ZIP: 10KB

Aug,2024

Simulation Model ELDO Model (Note3) ZIP

ZIP: 11KB

Aug,2024

Thermal Simulation Model Simplified CFD Model ZIP

ZIP: 8KB

Mar,2023

UPDATED Reliability Information Reliability Data

PDF: 145KB

Nov,2024

Application Note Automotive Discrete Semiconductor MBD Introductory Application Note

PDF: 1522KB

Mar,2024

Catalog Selection Guide MOSFETs 2024 Rev2.0

PDF: 10837KB

Jul,2024

(Note1)	LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).
(Note2)	SIMetrix^® is simulation software and registered trademarks of SIMetrix Technologies Ltd.
(Note3)	ELDO™ is a trademark and simulation software of Siemens Industry Software Inc. Click here for the list of trademarks related to Siemens Industry Software Inc.

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	AEC-Q100 AEC-Q101
XPN7R104NC,L1Q	5000		Yes	-
XPN7R104NC,L1XHQ	5000	-	Yes	Yes

Reference Design

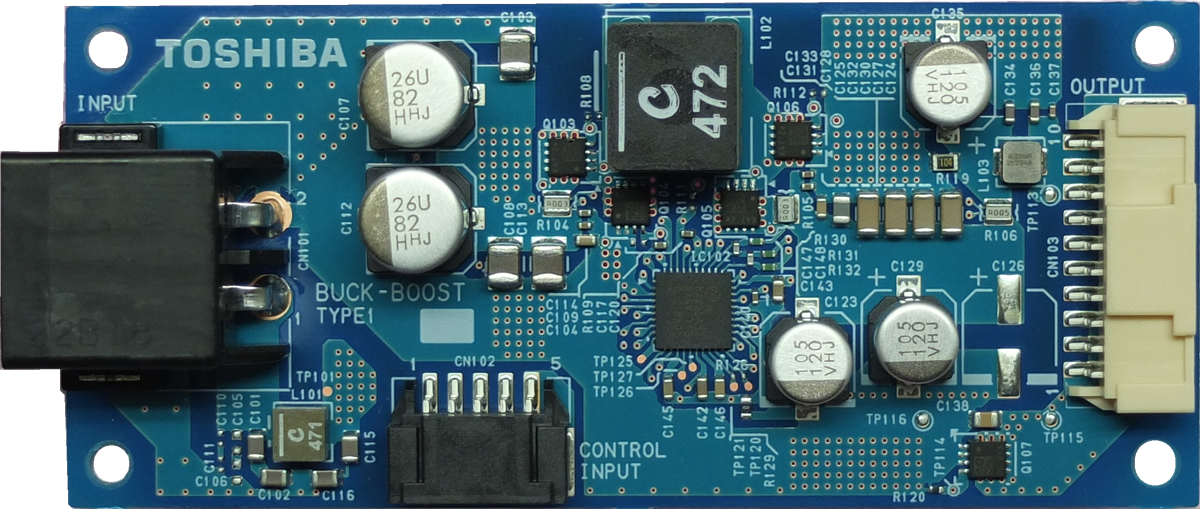

Automotive Buck-Boost DC-DC Converter for USB PD

This reference design provides design guide, data and other contents of Automotive Buck-Boost DC-DC Converter for USB PD.

세부 사항

Automotive Brushed DC Motor Control Circuit Using TB9103FTG

The Automotive Brushed DC Motor Control Circuit Using TB9103FTG can control two motors in half-bridge mode or one motor in H-bridge mode. The Motor can be controlled using onboard switches or an external MCU. This reference design provides design guide, data, and other contents.

세부 사항

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.
