XPN7R104NC

This page partially uses JavaScript. This page may not operate normally when these functions are not supported by your browser or the setting is disabled.
Please look for the information you need from the following pages:

聯絡我們

Asia-Pacific - English

Asia-Pacific - 简体中文

Asia-Pacific - 繁體中文

Asia-Pacific - 한국어

Asia-Pacific - 日本語

Americas - English

Europe (EMEA) - English

Application Scope	DC-DC Converters / Automotive / Switching Voltage Regulators / Motor Drivers
Polarity	N-ch
Generation	U-MOSⅧ-H
Internal Connection	Single
PPAP	Capable(*)
AEC-Q101	Qualified(*)
RoHS Compatible Product(s) (#)	Available

包裝資訊

Toshiba Package Name	TSON Advance(WF)
Package Image
Pins	8
Mounting	Surface Mount
Width×Length×Height (mm)	3.3×3.6×0.85
Package Dimensions	檢視
Land pattern dimensions	檢視
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

絕對最大額定值

項目	符號	值	單位
Drain-Source voltage	V_DSS	40	V
Gate-Source voltage	V_GSS	+/-20	V
Drain current	I_D	20	A
Power Dissipation	P_D	65	W

電器特性

項目	符號	條件	值	單位
Gate threshold voltage (Max)	V_th	-	2.5	V
Gate threshold voltage (Min)	V_th	-	1.5	V
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=4.5V	14.2	mΩ
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=10V	7.1	mΩ
Input capacitance (Typ.)	C_iss	-	1290	pF
Total gate charge (Typ.)	Q_g	V_GS=10V	21	nC

文檔

全部選擇
如果沒看到確認框則對應文件目前無法下載

數據表 XPN7R104NC 數據表/日文

PDF: 669KB

Jun,2020

數據表 XPN7R104NC 數據表/英文

PDF: 568KB

Jun,2020

Simulation Model PSpice Model ZIP

ZIP: 42KB

Jun,2021

Simulation Model LTspice Model (Note1) ZIP

ZIP: 46KB

Jul,2021

Simulation Model SIMetrix Model (Note2) ZIP

ZIP: 10KB

Aug,2024

Simulation Model ELDO Model (Note3) ZIP

ZIP: 11KB

Aug,2024

Thermal Simulation Model Simplified CFD Model ZIP

ZIP: 8KB

Mar,2023

UPDATED Reliability Information Reliability Data

PDF: 145KB

Nov,2024

Application Note Automotive Discrete Semiconductor MBD Introductory Application Note

PDF: 1522KB

Mar,2024

Catalog Selection Guide MOSFETs 2024 Rev2.0

PDF: 10837KB

Jul,2024

(Note1)	LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).
(Note2)	SIMetrix^® is simulation software and registered trademarks of SIMetrix Technologies Ltd.
(Note3)	ELDO™ is a trademark and simulation software of Siemens Industry Software Inc. Click here for the list of trademarks related to Siemens Industry Software Inc.

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	AEC-Q100 AEC-Q101
XPN7R104NC,L1Q	5000		Yes	-
XPN7R104NC,L1XHQ	5000	-	Yes	Yes

參考設計

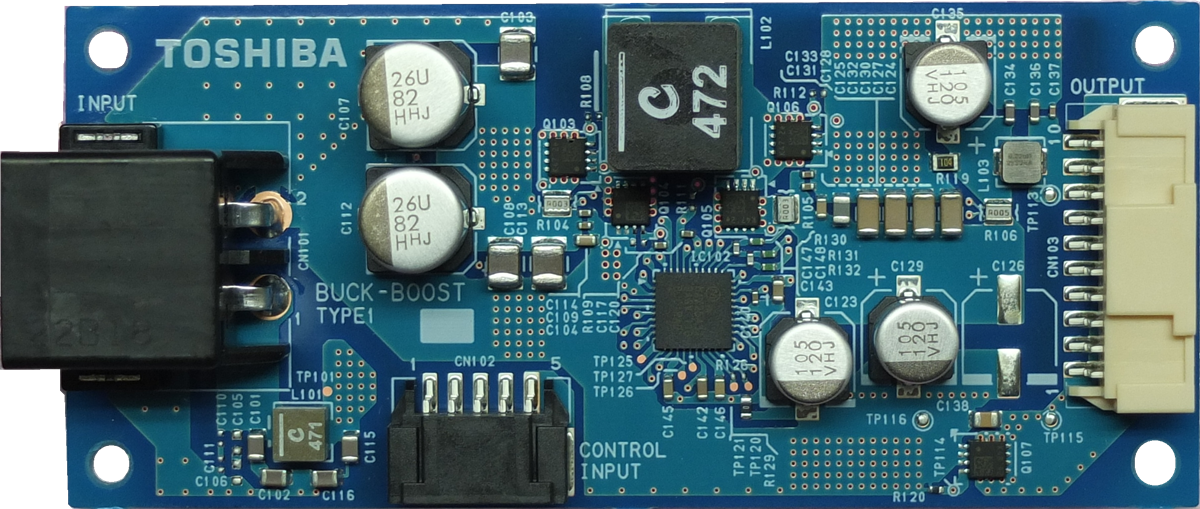

Automotive Buck-Boost DC-DC Converter for USB PD

This reference design provides design guide, data and other contents of Automotive Buck-Boost DC-DC Converter for USB PD.

詳細資料

Automotive Brushed DC Motor Control Circuit Using TB9103FTG

The Automotive Brushed DC Motor Control Circuit Using TB9103FTG can control two motors in half-bridge mode or one motor in H-bridge mode. The Motor can be controlled using onboard switches or an external MCU. This reference design provides design guide, data, and other contents.

詳細資料
