SSM3K15AFS

This page partially uses JavaScript. This page may not operate normally when these functions are not supported by your browser or the setting is disabled.
Please look for the information you need from the following pages:

문의

Asia-Pacific - English

Asia-Pacific - 简体中文

Asia-Pacific - 繁體中文

Asia-Pacific - 한국어

Asia-Pacific - 日本語

Americas - English

Europe (EMEA) - English

Application Scope	Load Switches
Polarity	N-ch
Generation	U-MOSⅢ
Internal Connection	Single
RoHS Compatible Product(s) (#)	Available

Package Information

Toshiba Package Name	SOT-416 (SSM)
Package Image
JEITA	SC-75
Package Code	SOT-416
Pins	3
Mounting	Surface Mount
Width×Length×Height (mm)	1.6×1.6×0.7
Package Dimensions	보기
Land pattern dimensions	보기
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

Absolute Maximum Ratings

Characteristics	Symbol	Rating	Unit
Drain-Source voltage	V_DSS	30	V
Gate-Source voltage	V_GSS	+/-20	V
Drain current	I_D	100	mA
Power Dissipation	P_D	0.1	W

Electrical Characteristics

Characteristics	Symbol	Condition	Value	Unit
Gate threshold voltage (Max)	V_th	-	1.5	V
Gate threshold voltage (Min)	V_th	-	0.8	V
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=2.5V	6.0	Ω
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=4V	3.6	Ω
Input capacitance (Typ.)	C_iss	-	13.5	pF

Document

select all
If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Name
Date

Data sheet SSM3K15AFS Data sheet/Japanese

PDF: 278KB

Mar,2014

Data sheet SSM3K15AFS Data sheet/English

PDF: 228KB

Mar,2014

Simulation Model PSpice Model lib

lib: 3KB

May,2015

Simulation Model LTspice Model (Note) mod

mod: 20KB

Feb,2019

Reliability Information Reliability Data

PDF: 276KB

Sep,2024

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 87KB

Dec,2024

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 86KB

Dec,2024

Application Note Surface Mount Small Signal MOSFET Precautions for use

PDF: 830KB

Jan,2022

Catalog Selection Guide MOSFETs 2024 Rev2.0

PDF: 10837KB

Jul,2024

Catalog Selection Guide Small Signal 2024 Rev2.0

PDF: 15538KB

Jul,2024

Catalog Mini catalog Introduction of Semi-power & small-size low RON MOSFET

PDF: 441KB

Jul,2024

Catalog Mini catalog Introduction of small-package MOSFET

PDF: 676KB

Jul,2024

(Note)

LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	Note
SSM3K15AFS,LF	3000		Yes	General Use

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.

Automotive Category Top

Body Electronics

xEV

In-Vehicle Infotainment

Advanced Driver-Assistance Systems (ADAS)

Chassis

Industrial Equipment Category Top

Infrastructure

BEMS/HEMS

Factory Automation

Commercial Equipment

Consumer / Personal Equipment Category Top

IoT Equipment

Healthcare

Wearable Device

Mobile

Computer Peripherals

Home Applicances

기타

Description

Package Information

Absolute Maximum Ratings

Electrical Characteristics

Document

Orderable part number

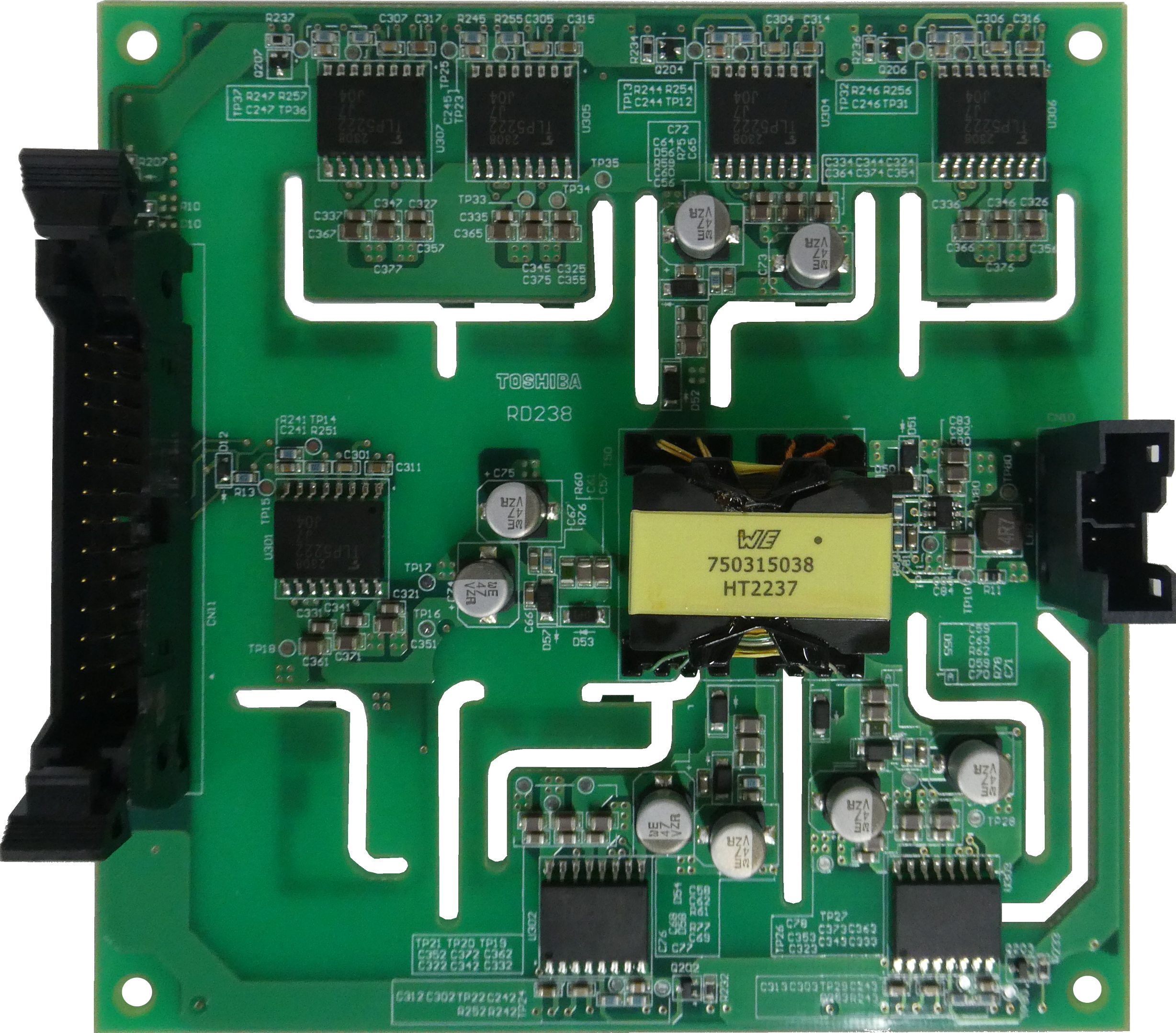

Reference Design
