SSM3K15AFS

Small-signal MOSFET

  • 相關參考設計(2)

數據表

SSM3K15AFS 數據表/日文[Mar,2014]PDF: 278KB

數據表

SSM3K15AFS 數據表/英文[Mar,2014]PDF: 228KB

Simulation Model

PSpice Model[May,2015]lib: 3KB

Simulation Model

LTspice Model[Feb,2019]mod: 20KB

Reliability Information

Reliability Data[Sep,2024]PDF: 276KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Jan,2025]PDF: 87KB

Environment Information

Certificate on Content of SVHC of REACH[Jan,2025]PDF: 86KB

Application Note

Surface Mount Small Signal MOSFET Precautions for use[Jan,2022]PDF: 830KB

Catalog

Mini catalog Introduction of Semi-power & small-size low RON MOSFET[Dec,2024]PDF: 433KB

Catalog

Mini catalog Introduction of small-package MOSFET[Dec,2024]PDF: 680KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

Catalog

Selection Guide Small Signal 2024 Rev2.0[Jul,2024]PDF: 15538KB

數據表

SSM3K15AFS 數據表/日文[Mar,2014]PDF: 278KB

數據表

SSM3K15AFS 數據表/英文[Mar,2014]PDF: 228KB

Application Note

Surface Mount Small Signal MOSFET Precautions for use[Jan,2022]PDF: 830KB

Simulation Model

PSpice Model[May,2015]lib: 3KB

Simulation Model

LTspice Model[Feb,2019]mod: 20KB

Reliability Information

Reliability Data[Sep,2024]PDF: 276KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[Jan,2025]PDF: 87KB

Environment Information

Certificate on Content of SVHC of REACH[Jan,2025]PDF: 86KB

Catalog

Mini catalog Introduction of Semi-power & small-size low RON MOSFET[Dec,2024]PDF: 433KB

Catalog

Mini catalog Introduction of small-package MOSFET[Dec,2024]PDF: 680KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

Catalog

Selection Guide Small Signal 2024 Rev2.0[Jul,2024]PDF: 15538KB

產品概要

Application Scope Load Switches
Polarity N-ch
Generation U-MOSⅢ
Internal Connection Single
RoHS Compatible Product(s) (#) Available

包裝資訊

Toshiba Package Name SOT-416 (SSM)
Package Image SSM
JEITA SC-75
Package Code SOT-416
Pins 3
Mounting Surface Mount
Width×Length×Height
(mm)		 1.6×1.6×0.7
Package Dimensions 檢視
Land pattern dimensions 檢視
CAD data
(Symbol, Footprint and 3D model)		 Download from UltraLibrarian<sup>®</sup> in your desired CAD format (Note)

Download from UltraLibrarian® in your desired CAD format (Note)

 Please refer to the link destination to check the detailed size.

(Note)

Ultra Librarian® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

絕對最大額定值

項目 符號 值 單位
Drain-Source voltage VDSS 30 V
Gate-Source voltage VGSS +/-20 V
Drain current ID 100 mA
Power Dissipation PD 0.1 W

電器特性

項目 符號 條件 值 單位
Gate threshold voltage (Max) Vth - 1.5 V
Gate threshold voltage (Min) Vth - 0.8 V
Drain-Source on-resistance (Max) RDS(ON) |VGS|=2.5V 6.0 Ω
Drain-Source on-resistance (Max) RDS(ON) |VGS|=4V 3.6 Ω
Input capacitance (Typ.) Ciss - 13.5 pF
購買及樣品申請
請聯繫東芝的官方經銷商之一或最近的東芝銷售辦事處
點選以下連結搜索和購買小量樣品

文檔

  • 如果沒看到確認框則對應文件目前無法下載

May,2015

Feb,2019

Sep,2024

Jan,2025

Jan,2025

(Note)

LTspice ® is a trademark and simulation software of ADI (Analog Devices, Inc.).

Orderable part number

Orderable part number
(example)		 MOQ(pcs) Reliability
Information		 RoHS Note
SSM3K15AFS,LF 3000 Yes General Use

參考設計

This is a picture of Gate Drive for SiC MOSFET Module.
Gate Drive for SiC MOSFET Module
In recent years, SiC MOSFET modules have become popular compared to conventional IGBT modules as they have a smaller size and lower loss, which is useful in power conversion applications such as industrial motor drives and railway inverters. This is a gate drive circuit with various protection functions which can safely drive a SiC MOSFET module.
This design uses the TLP5231 pre-driver coupler, which is capable of high-current gate drive with external buffer MOSFETs and has various built-in protection functions to implement the isolated-gate drive of a high-current/high-voltage SiC MOSFET module. It consists of two channels, high-side and low-side, on a 62mm x 100mm board and can be installed on Toshiba dual MOSFET modules.
Design tips on each portion of the circuit, method of operation, and design information such as circuit diagrams and PCB patterns are available, please use them for your design.
詳細資料

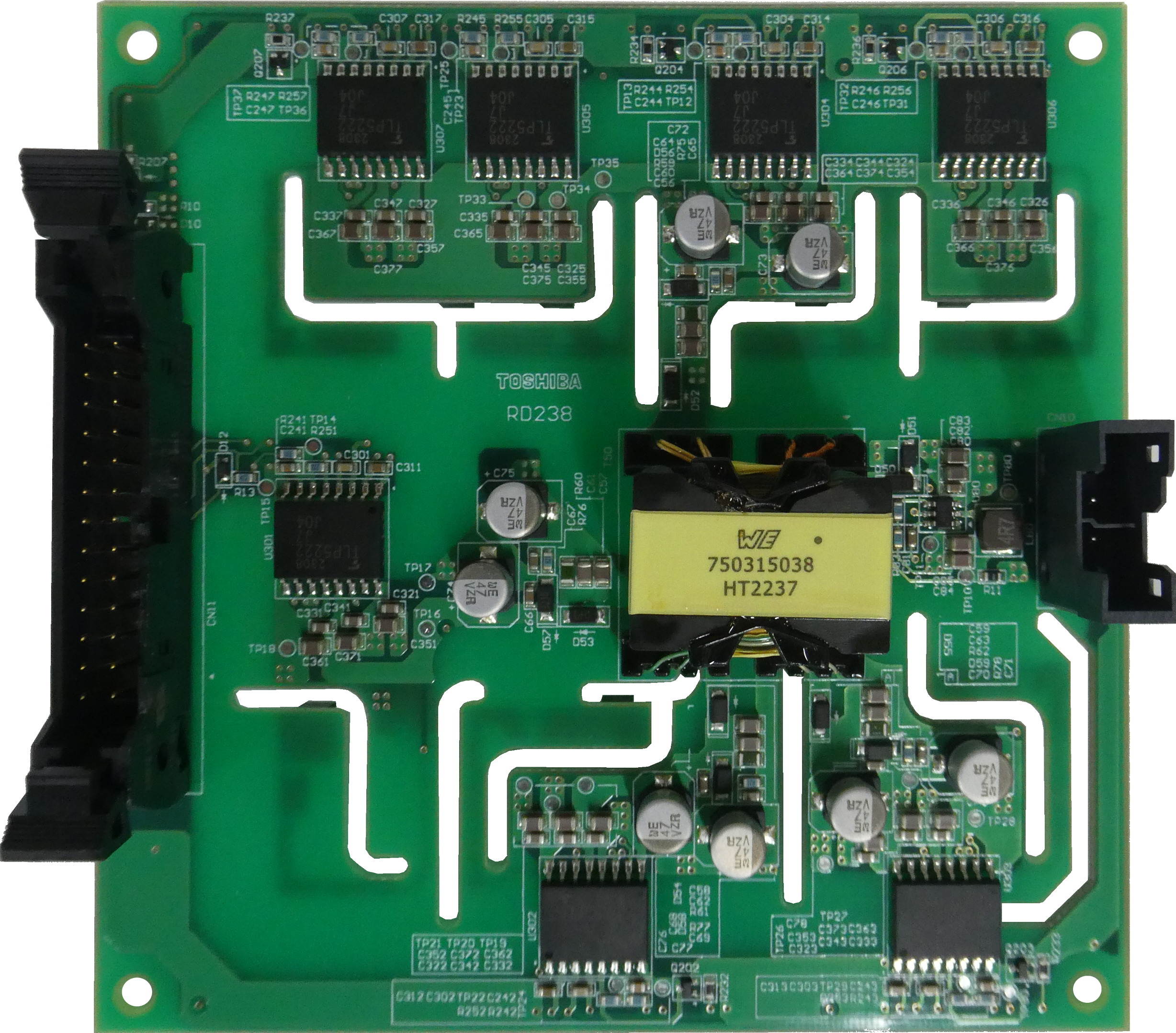

This is a picture of Isolated Gate Drive Circuit for 3-Phase Inverter.
3相逆變器隔離閘極驅動電路
近年來，工業設備中的3相逆變器已成為實現低碳社會的重要因素。本電路是具有各種保護功能的閘極驅動電路，可安全地驅動3相逆變器所使用的功率模組。 此參考設計提供了電路各部分的設計參考、操作方法以及電路圖和PCB圖案等設計訊息，請在設計中使用它們。
詳細資料
