Interleaved PFC Power Supply Basic Simulation Circuit

This reference design provides OrCAD® based simulation circuit, simulation results and design guide. This is for designing interleaved PFC power supply.

Circuit diagram of interleaved PFC power supply basic simulation circuit.

Features

  • Bundled simulation circuit and device models
  • Able to edit power supply specificatoin and devices freely
  • Able to set powef supply specificatoin and ciruit parameters on OrCAD®

Description

  • Basic simulation circuit of interleaved PFC power supply that can operate on OrCAD®.
Input voltage AC 90 to 264V
Output voltage DC 400V
Output power 1200W

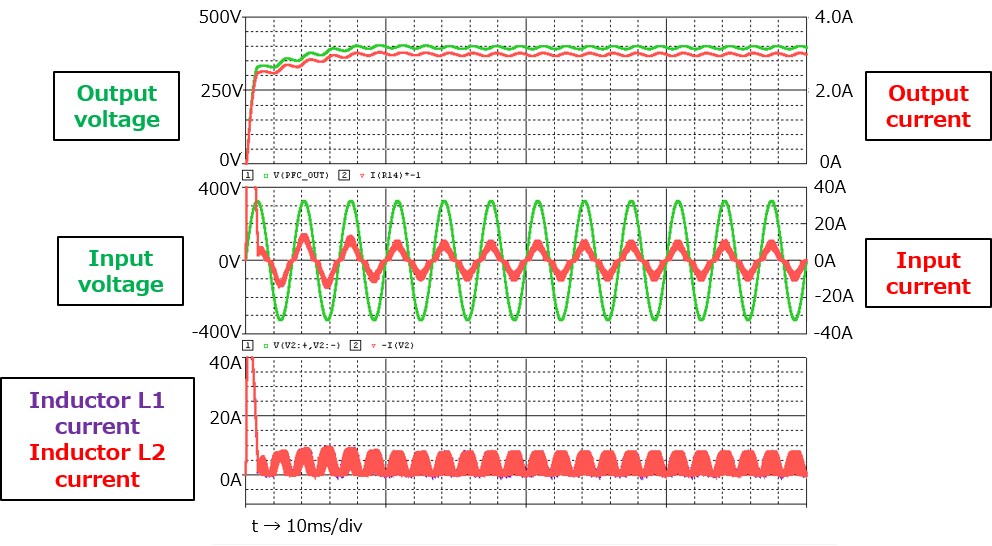

Waveform of interleaved PFC power supply basic simulation circuit.
Waveform

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

Used Toshiba Items

Part Number Device Category Portion Usage Description
Power MOSFET (N-ch 500V<VDSS≤700V) 2 N-ch MOSFET, 600 V, 0.155 Ω@10V, TO-247, DTMOSⅣ
SiC Schottky barrier diode 2 650 V/6 A SiC Schottky Barrier Diode, TO-220-2L
