TPD7106F

Intelligent power device (High side power-MOSFET driver with built-in charge pump)

  • Related Reference Design(2)

Data sheet

TPD7106F Data sheet/Japanese[Apr,2021]PDF: 969KB

Data sheet

TPD7106F Data sheet/English[Dec,2019]PDF: 622KB

Simulation Model

PSpice Model[Mar,2023]ZIP: 13KB

Reliability Information

Reliability Data[Dec,2023]PDF: 249KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[May,2025]PDF: 86KB

Environment Information

Certificate on Content of SVHC of REACH[May,2025]PDF: 85KB

Application Note

TPD7106F Application note[Apr,2023]PDF: 1385KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Catalog

Selection Guide Power Devices 2025 Rev1.0[Feb,2025]PDF: 3133KB

Data sheet

TPD7106F Data sheet/Japanese[Apr,2021]PDF: 969KB

Data sheet

TPD7106F Data sheet/English[Dec,2019]PDF: 622KB

Application Note

TPD7106F Application note[Apr,2023]PDF: 1385KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Simulation Model

PSpice Model[Mar,2023]ZIP: 13KB

Reliability Information

Reliability Data[Dec,2023]PDF: 249KB

Environment Information

Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances[May,2025]PDF: 86KB

Environment Information

Certificate on Content of SVHC of REACH[May,2025]PDF: 85KB

Catalog

Selection Guide Power Devices 2025 Rev1.0[Feb,2025]PDF: 3133KB

Description

Application Scope Relay drivers
Input / Output H/H
Number of Circuits 1
Diagnostic Functions Charge pump voltage drop detection
Protection Functions Reverse battery
PPAP Capable(*)
AEC-Q100 Qualified(*)
RoHS Compatible Product(s) (#) Available

*: For detail information, please contact to our sales.

Package Information

Toshiba Package Name SSOP16
Package Image SSOP16
Pins 16
Mounting Surface Mount
Width×Length×Height
(mm)		 5.0×6.4×1.2
Package Dimensions View
Ultra Librarian® CAD model
(Symbol, Footprint and 3D model)		 Download from UltraLibrarian<sup>®</sup> in your desired CAD format<br>(Note1)(Note3)

Download from UltraLibrarian® in your desired CAD format
(Note1)(Note3)
SamacSys CAD model
(Symbol, Footprint and 3D model)		 Download from SamacSys<br>(Note2)(Note3)

Download from SamacSys
(Note2)(Note3)

 Please refer to the link destination to check the detailed size.

(Note1)

Ultra Librarian® is a Registered trademark and CAD model library of EMA (EMA Design Automation, Inc.). CAD models (Symbol/Footprint /3D model) are provided by UltraLibrarian®. The footprints are generated based on the specifications of Ultra Librarian®.

(Note2)

SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.

(Note3)

Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

Absolute Maximum Ratings

Characteristics Symbol Rating Unit
Output sink current IOUT2(+) 0.4 A
Output current ISINK 0.01 A
Output current ISOURCE -0.01 A
Power Dissipation PD 1.16 W
Operating Temperature (Max) Topr 150 ℃
Operating Temperature (Min) Topr -40 ℃
Input Voltage (Max) VIN 6 V
Input Voltage (Min) VIN -0.3 V
Power Supply Voltage (Max) VDD 27 V

Electrical Characteristics

Characteristics Symbol Condition Value Unit
Operating Supply Voltage (Max) VDD(opr) - 27 V
Operating Supply Voltage (Min) VDD(opr) - 4.5 V
Purchase and Sample
Please contact one of Toshiba's official distributors or the nearest Toshiba sales office.
You can search for and purchase a small on-line sample by clicking on the following link.

Document

  • If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Mar,2023

Dec,2023

May,2025

May,2025

Orderable part number

Orderable part number
(example)		 MOQ(pcs) Reliability
Information		 RoHS AEC-Q100
AEC-Q101
TPD7106F,L1XHF 2000 - Yes Yes

Reference Design

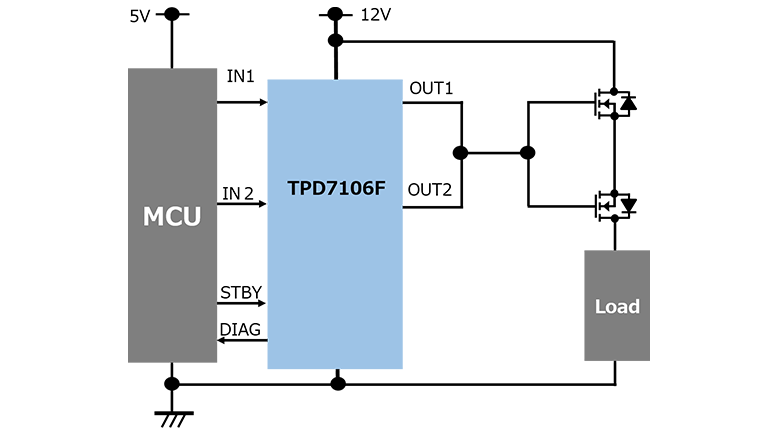

Example of TPD7106F Application Circuit.
Single-Output High-Side N-Channel Power MOSFET Gate Driver Application and Circuit of the TPD7106F
This reference design provides examples of application circuit and simulation for TPD7106F which features power supply reverse connection, charge pumpccircuit and others.
Details
