XPH1R104PS

This page partially uses JavaScript. This page may not operate normally when these functions are not supported by your browser or the setting is disabled.
Please look for the information you need from the following pages:

Site Map

Asia-Pacific - English

Asia-Pacific - 简体中文

Asia-Pacific - 繁體中文

Asia-Pacific - 한국어

Asia-Pacific - 日本語

Americas - English

Europe (EMEA) - English

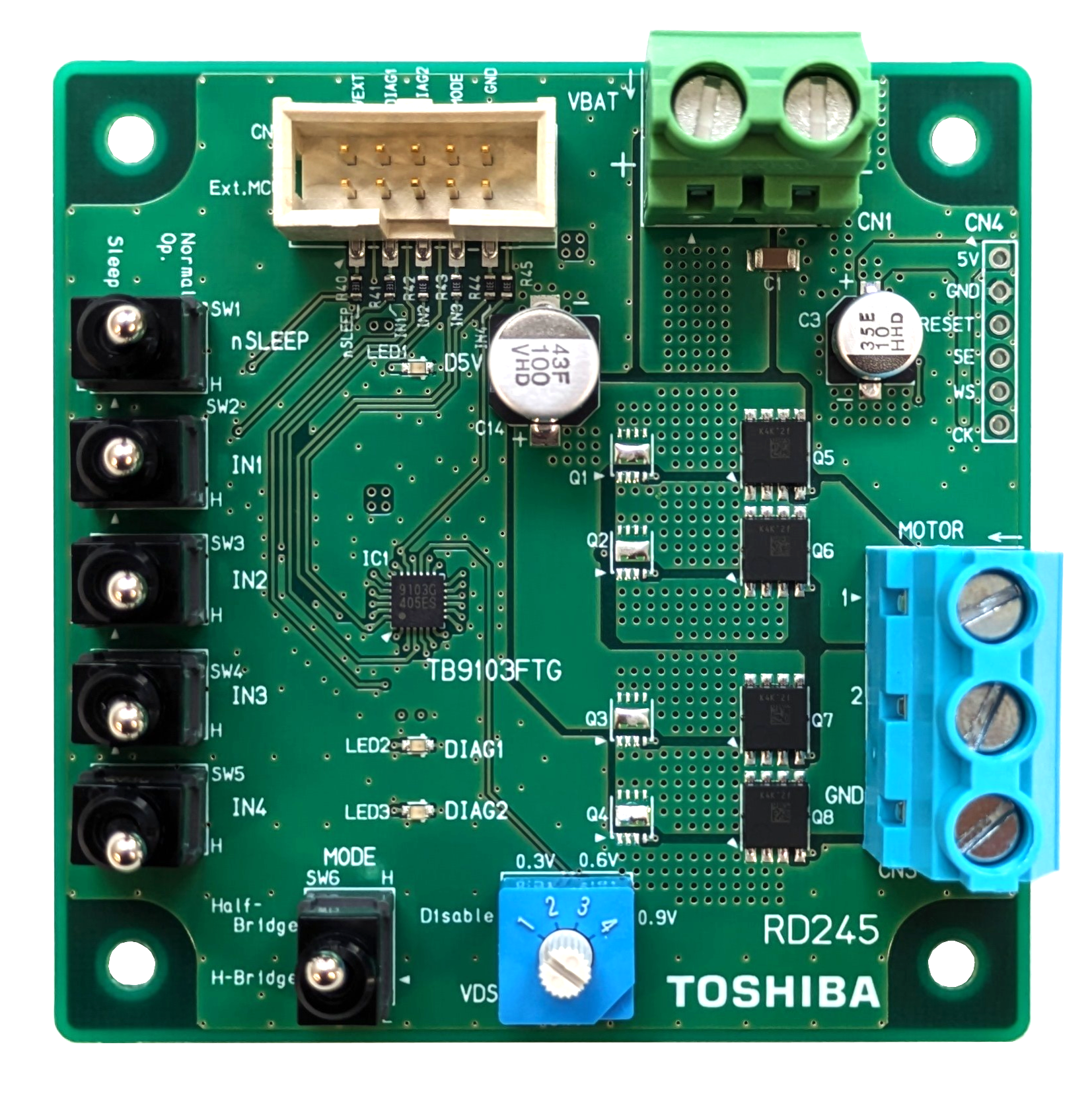

Application Scope	DC-DC Converters / Automotive / Motor Drivers / Load Switches
Polarity	N-ch
Generation	U-MOSⅨ-H
Internal Connection	Single
PPAP	Capable(*)
AEC-Q101	Qualified(*)
RoHS Compatible Product(s) (#)	Available

Package Information

Toshiba Package Name	SOP Advance(WF)
Package Image
Pins	8
Mounting	Surface Mount
Width×Length×Height (mm)	5.0×6.0×0.95
Package Dimensions	View
Land pattern dimensions	View

Please refer to the link destination to check the detailed size.

Absolute Maximum Ratings

Characteristics	Symbol	Rating	Unit
Drain-Source voltage	V_DSS	40	V
Gate-Source voltage	V_GSS	+/-20	V
Drain current	I_D	120	A
Power Dissipation	P_D	132	W

Electrical Characteristics

Characteristics	Symbol	Condition	Value	Unit
Gate threshold voltage (Max)	V_th	-	3.0	V
Gate threshold voltage (Min)	V_th	-	2.0	V
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=6V	1.96	mΩ
Drain-Source on-resistance (Max)	R_DS(ON)	\|V_GS\|=10V	1.14	mΩ
Input capacitance (Typ.)	C_iss	-	4560	pF
Total gate charge (Typ.)	Q_g	V_GS=10V	55	nC

Document

select all
If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Name
Date

Data sheet XPH1R104PS Data sheet/Japanese

PDF: 692KB

Sep,2021

Data sheet XPH1R104PS Data sheet/English

PDF: 593KB

Sep,2021

Simulation Model PSpice Model ZIP

ZIP: 42KB

Mar,2022

Simulation Model LTspice Model (Note1) ZIP

ZIP: 49KB

May,2022

Simulation Model SIMetrix Model (Note2) ZIP

ZIP: 9KB

Aug,2024

Simulation Model ELDO Model (Note3) ZIP

ZIP: 11KB

Aug,2024

Thermal Simulation Model Simplified CFD Model ZIP

ZIP: 8KB

Mar,2023

Reliability Information Reliability Data

PDF: 276KB

Oct,2024

Application Note Automotive Discrete Semiconductor MBD Introductory Application Note

PDF: 1522KB

Mar,2024

Catalog Selection Guide MOSFETs 2024 Rev2.0

PDF: 10837KB

Jul,2024

(Note1)	LTspice ^® is a trademark and simulation software of ADI (Analog Devices, Inc.).
(Note2)	SIMetrix^® is simulation software and registered trademarks of SIMetrix Technologies Ltd.
(Note3)	ELDO™ is a trademark and simulation software of Siemens Industry Software Inc. Click here for the list of trademarks related to Siemens Industry Software Inc.

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	AEC-Q100 AEC-Q101
XPH1R104PS,L1Q	5000		Yes	-
XPH1R104PS,L1XHQ	5000	-	Yes	Yes

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.
