TK090U65Z

Power MOSFET (N-ch 500V<VDSS≤700V)

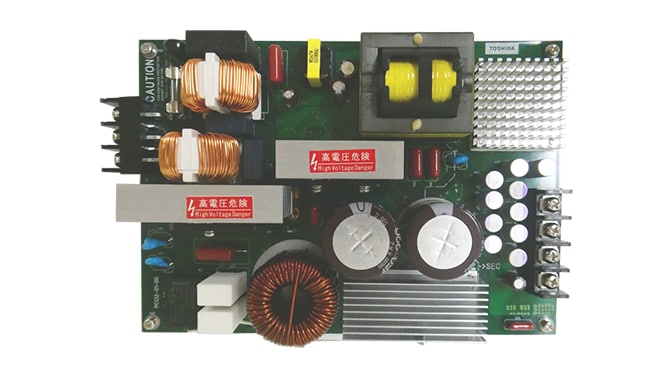

  • Related Reference Design(1)

Data sheet

TK090U65Z Data sheet/Japanese[Oct,2020]PDF: 592KB

Data sheet

TK090U65Z Data sheet/English[Oct,2020]PDF: 485KB

Simulation Model

PSpice Model[Mar,2023]ZIP: 45KB

Simulation Model

LTspice Model[Mar,2023]ZIP: 52KB

Simulation Model

SIMetrix Model[Mar,2023]ZIP: 12KB

Thermal Simulation Model

Simplified CFD Model[Apr,2023]ZIP: 8KB

Reliability Information

Reliability Data[Oct,2024]PDF: 249KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Application Note for TOLL package[Jul,2021]PDF: 1778KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

Power Factor Correction (PFC) Circuits: Power MOSFET Application Notes[Nov,2019]PDF: 1061KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

Data sheet

TK090U65Z Data sheet/Japanese[Oct,2020]PDF: 592KB

Data sheet

TK090U65Z Data sheet/English[Oct,2020]PDF: 485KB

Application Note

MOSFET SPICE model grade[May,2023]PDF: 1639KB

Application Note

Electrical Characteristics: Power MOSFET Application Notes[Feb,2023]PDF: 1266KB

Application Note

Simplified CFD Model Application Note[Nov,2022]PDF: 993KB

Application Note

Efficiency Evaluation and Loss Analysis of 300W isolated DC-DC converter[Sep,2021]PDF: 2324KB

Application Note

Application Note for TOLL package[Jul,2021]PDF: 1778KB

Application Note

Quick Reference Guide for Thermal Design for Power Semiconductor SMD type: Part 2[Dec,2020]PDF: 3593KB

Application Note

Efficiency evaluation of Half-bridge DC-DC converter supporting 48V Bus system[Sep,2020]PDF: 1517KB

Application Note

Avalanche energy calculation[Mar,2020]PDF: 562KB

Application Note

Quick Reference Guide for Thermal Design for Discrete Semiconductor Devices[Feb,2020]PDF: 2104KB

Application Note

Resonant Circuits and Soft Switching[Nov,2019]PDF: 1071KB

Application Note

Power Factor Correction (PFC) Circuits: Power MOSFET Application Notes[Nov,2019]PDF: 1061KB

Application Note

U-MOSⅨ-H 60V Low VDS spike TPH1R306P1[Aug,2019]PDF: 1081KB

Application Note

Hints and Tips for Thermal Design part3[Feb,2019]PDF: 3165KB

Application Note

Reverse Recovery Operation and Destruction of MOSFET Body Diode[Sep,2018]PDF: 472KB

Application Note

MOSFET Secondary Breakdown[Sep,2018]PDF: 450KB

Application Note

RC Snubbers for Step-Down Converters[Sep,2018]PDF: 1846KB

Application Note

Structures and Characteristics: Power MOSFET Application Notes[Jul,2018]PDF: 331KB

Application Note

Maximum Ratings: Power MOSFET Application Notes[Jul,2018]PDF: 705KB

Application Note

Selecting MOSFETs and Consideration for Circuit Design: Power MOSFET Application Notes[Jul,2018]PDF: 848KB

Application Note

Thermal Design and Attachment of a Thermal Fin: Power MOSFET Application Notes[Jul,2018]PDF: 789KB

Application Note

Parasitic Oscillation and Ringing: Power MOSFET Application Notes[Jul,2018]PDF: 1394KB

Application Note

Parasitic Oscillation between Parallel Power MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1178KB

Application Note

MOSFET Gate Drive Circuit: Power MOSFET Application Notes[Jul,2018]PDF: 1215KB

Application Note

Impacts of the dv/dt Rate on MOSFETs: Power MOSFET Application Notes[Jul,2018]PDF: 1077KB

Application Note

MOSFET Avalanche Ruggedness: Power MOSFET Application Notes[Jul,2018]PDF: 616KB

Application Note

Hints and Tips for Thermal Design for Discrete Semiconductor Devices[Jul,2018]PDF: 1266KB

Application Note

Calculating the Temperature of Discrete Semiconductor Devices[Jul,2018]PDF: 965KB

Application Note

Derating of the MOSFET Safe Operating Area[Jul,2018]PDF: 656KB

Application Note

MOSFET Self-Turn-On Phenomenon[Jul,2018]PDF: 1338KB

Application Note

Discrete Semiconductor Devices Hints and Tips for Thermal Design Part 2[Jul,2018]PDF: 1069KB

Application Note

Motor Control (Vacuum Cleaners)[Jul,2018]PDF: 2483KB

Simulation Model

PSpice Model[Mar,2023]ZIP: 45KB

Simulation Model

LTspice Model[Mar,2023]ZIP: 52KB

Simulation Model

SIMetrix Model[Mar,2023]ZIP: 12KB

Thermal Simulation Model

Simplified CFD Model[Apr,2023]ZIP: 8KB

Reliability Information

Reliability Data[Oct,2024]PDF: 249KB

Catalog

Selection Guide MOSFETs 2024 Rev2.0[Jul,2024]PDF: 10837KB

Description

Application Scope Switching Voltage Regulators
Polarity N-ch
Generation DTMOSⅥ
Internal Connection Single
RoHS Compatible Product(s) (#) Available

Package Information

Toshiba Package Name TOLL
Package Image TOLL
Pins 9
Mounting Surface Mount
Width×Length×Height
(mm)		 9.9×11.68×2.3
Package Dimensions View
Land pattern dimensions View

 Please refer to the link destination to check the detailed size.

Absolute Maximum Ratings

Characteristics Symbol Rating Unit
Drain-Source voltage VDSS 650 V
Gate-Source voltage VGSS +/-30 V
Drain current ID 30 A
Power Dissipation PD 230 W

Electrical Characteristics

Characteristics Symbol Condition Value Unit
Gate threshold voltage (Max) Vth - 4.0 V
Gate threshold voltage (Min) Vth - 3.0 V
Drain-Source on-resistance (Max) RDS(ON) |VGS|=10V 90 mΩ
Input capacitance (Typ.) Ciss - 2780 pF
Total gate charge (Typ.) Qg VGS=10V 47 nC
Reverse recovery time (Typ.) trr - 330 ns
Reverse recovery charge (Typ.) Qrr - 5100 nC
Purchase and Sample
Please contact one of Toshiba's official distributors or the nearest Toshiba sales office.
You can search for and purchase a small on-line sample by clicking on the following link.

Document

  • If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Mar,2023

Mar,2023

Mar,2023

Apr,2023

Oct,2024

(Note1)

LTspice ® is a trademark and simulation software of ADI (Analog Devices, Inc.).

(Note2)

SIMetrix® is simulation software and registered trademarks of SIMetrix Technologies Ltd.

Applications

Multi Function Printer
Such as efficiency of motor driving, low power consumption and miniaturization are important in designing multi function printer (MFP). Toshiba provides information on a wide range of semiconductor products suitable for power sullpy units, engine (motor driving) units, scanner units, control units, etc., along with circuit configuration examples.
Details
PV Inverter for Household Use
Such as high efficiency and miniaturization are important in designing PV inverter for household use. Toshiba provides information on a wide range of semiconductor products suitable for convertercircuit unit, inverter circuit unit, etc., along with circuit configuration examples.
Details
Server
Such as low power consumption and miniaturization are important in designing server. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, motor driving unit, over temperature monitoring unit, etc., along with circuit configuration examples.
Details
