Small Package Lineups

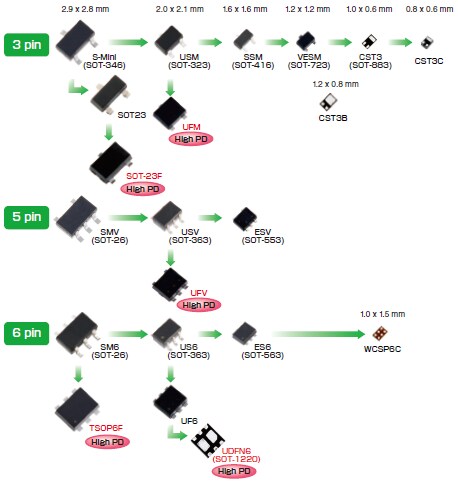

Lineup of Small Packages

Extensive packaging options are available, ranging from a package measuring 3.0 mm x 3.0 mm to an ultra-small package measuring less than 1.0 mm x 1.0 mm. These packages feature a small form factor, low on-resistance and high permissible power dissipation.

Small Low-On-Resistance MOSFETs Lineup by package

Number of pins Package

Size

(mm)

Polarity
Single Dual/
Complementary
3

S-Mini
(SOT-346)
S-Mini

2.9 x 2.5



3

SOT-23F
SOT-23F

2.9 x 2.4
3

SOT23
(SOT-23)
SOT-23

2.9 x 2.4



3

UFM
(SOT323F)
UFM

2.0 x 2.1



3

USM
(SOT-323)
USM

2.0 x 2.1



3

SSM
(SOT-416)
SSM

1.6 x 1.6



3

VESM
(SOT-723)
VESM

1.2 x 1.2



3

CST3B
CST3B

1.2 x 0.8



3

CST3
(SOT-883)
CST3

1.0 x 0.6



3

CST3C
CST3C

0.8 x 0.6



5

USV
(SOT-353)
USV

2.0 x 2.1



5

UFV
(SOT-353F)
UFV

2.0 x 2.1



5

ESV
(SOT-553)
ESV

1.6 x 1.6
6

TSOP6F
TSOP6F

2.9 x 2.8
6

UF6
(SOT-363F)
UF6

2.0 x 2.1
6

US6
(SOT-363)
US6

2.0 x 2.1



6

UDFN6B
(SOT-1220)
UDFN6B

2.0 x 2.0



6

UDFN6
(SOT-1118)
UDFN6

2.0 x 2.0
6

ES6
(SOT-563)
ES6

1.6 x 1.6
6

WCSP6C
WCSP6C

1.5 x 1.0



Lineup

For product parametric search.
