Feature	5V Voltage Regulator / PWM and 3-phase decoder / Outputs Rotation pulse signals / FGC rotate pulse select
Number of Circuits	1
Protection Functions	Overcurrent / Thermal shutdown / Undervoltage
Output configuration	3-phase full-bridge
Drive Type	Square-wave
Control Circuit	built-in
Power Block	IGBT
RoHS Compatible Product(s) (#)	Available

Package Information

Toshiba Package Name	HSSOP31
Package Image
Pins	31
Mounting	Surface Mount
Width×Length×Height (mm)	17.5×11.93×2.2
Package Dimensions	View
Ultra Librarian^® CAD model (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note1)(Note3)
SamacSys CAD model (Symbol, Footprint and 3D model)	Download from SamacSys (Note2)(Note3)

Please refer to the link destination to check the detailed size.

(Note1)	Ultra Librarian^® is a Registered trademark and CAD model library of EMA (EMA Design Automation, Inc.). CAD models (Symbol/Footprint /3D model) are provided by UltraLibrarian^®. The footprints are generated based on the specifications of Ultra Librarian^®.
(Note2)	SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.
(Note3)	Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

Absolute Maximum Ratings

Characteristics	Symbol	Rating	Unit
Output current(DC)	I_OUT(DC)	0.7	A
Power Supply Voltage	V_BB	600	V
Power Supply Voltage	V_CC	20	V

Electrical Characteristics

Characteristics	Symbol	Condition	Value	Unit
Operating power supply voltage	V_BB	-	50 to 450	V
Operating power supply voltage	V_CC	-	13.5 to 17.5	V

Document

select all
If the checkbox is invisible, the corresponding document cannot be downloaded in batch.

Name
Date

Data sheet TPD4162F Data sheet/Japanese

PDF: 743KB

Dec,2023

Data sheet TPD4162F Data sheet/English

PDF: 577KB

Dec,2023

Reliability Information Reliability Data

PDF: 248KB

Mar,2023

UPDATED Environment Information Certificate Regarding EU RoHS(2011/65/EU)Controlled Substances

PDF: 85KB

Jul,2025

UPDATED Environment Information Certificate on Content of SVHC of REACH

PDF: 85KB

Jul,2025

Application Note Simplified CFD Model Application Note

PDF: 993KB

Nov,2022

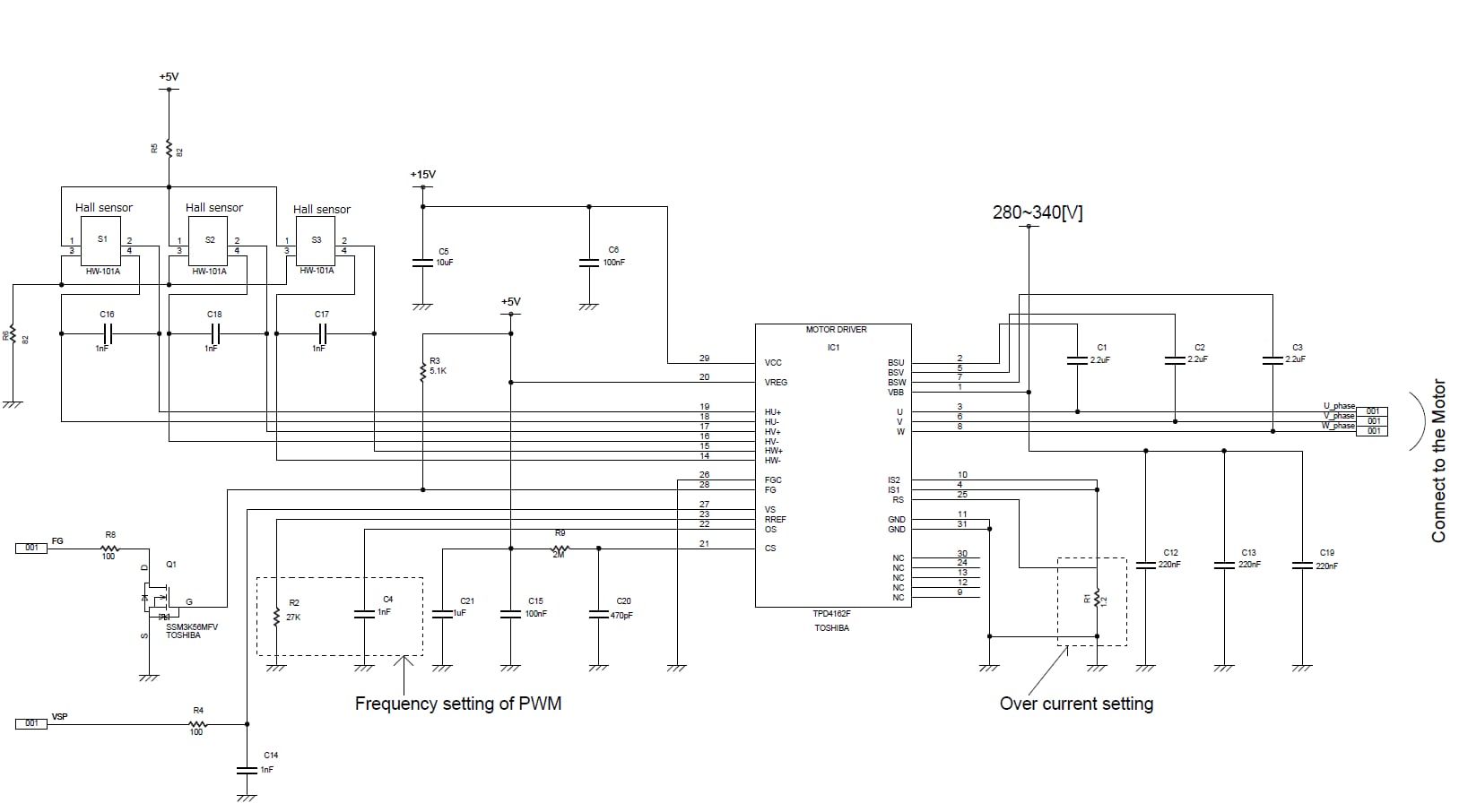

Application Note Square-Wave control Type TPD4162F/TPD4166F

PDF: 1011KB

Mar,2020

Application Note DC-AC Inverter Circuit

PDF: 1946KB

Jul,2018

Application Note Glossary of High-Voltage Intelligent Power Device Terms

PDF: 601KB

Apr,2018

Catalog Selection Guide Power Devices 2025 Rev1.0

PDF: 3133KB

Feb,2025

Applications

Air Conditioner

Such as efficiency of motor driving, low power consumption and miniaturization are important in designing air conditioner. Toshiba provides information on a wide range of semiconductor products suitable for power sullpy units, motor driving units, control units, sensor signal input units, etc., along with circuit configuration examples.

Details

Air Cleaner

Such as high efficiency, low power consumption and miniaturization are important in designing air cleaner. Toshiba provides information on a wide range of semiconductor products suitable for power supply unit, motor driving units, sensor signal input unit, etc., along with circuit configuration examples.

Details

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.
