TCK401G

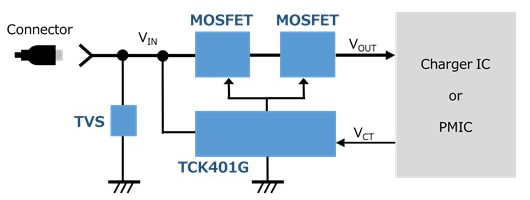

Description

Application	Consumer equipment / Mobile equipment / USB power supply / General purpose power supply
Feature	Wide range input voltage
Number of Circuits	1
Function	External MOSFET Gate drive / Inrush current reducing / Auto-discharge
Protection	Over Voltage Lockout / Under Voltage Lockout
RoHS Compatible Product(s) (#)	Available

Package Information

Toshiba Package Name	WCSP6E
Package Image
Pins	6
Mounting	Surface Mount
Width×Length×Height (mm)	1.2×0.8×0.55
Package Dimensions	View
Land pattern dimensions	View
CAD data (Symbol, Footprint and 3D model)	Download from UltraLibrarian^® in your desired CAD format (Note)

Please refer to the link destination to check the detailed size.

(Note) Ultra Librarian^® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

Absolute Maximum Ratings

Characteristics	Symbol	Rating	Unit
Power dissipation (Mounted on FR4 board(40mm×40mm))	P_D	0.8	W
Input Voltage	V_IN	40	V

Electrical Characteristics

Characteristics	Symbol	Condition	Value	Unit
Operating Temperature	T_opr	-	-40 to 85	℃
Operating Input Voltage (Max)	V_IN	-	28	V
Operating Input Voltage (Min)	V_IN	-	2.7	V
GATE drive voltage (Typ.)	V_GS	V_IN=12V	8.5	V
Stand-by current (Typ.)	I_Q(OFF)	V_IN=5V	3	μA

Document

Orderable part number

Orderable part number (example)	MOQ(pcs)	Reliability Information	RoHS	Note
TCK401G,LF	5000		Yes	General Use
