TCK401G

Load switch IC

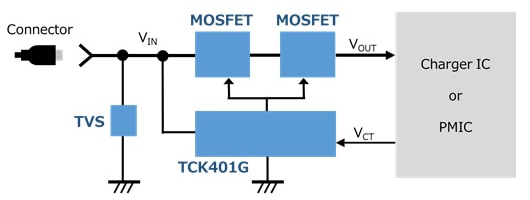

  • 相關參考設計(1)

產品概要

Application Consumer equipment / Mobile equipment / USB power supply / General purpose power supply
Feature Wide range input voltage
Number of Circuits 1
Function External MOSFET Gate drive / Inrush current reducing / Auto-discharge
Protection Over Voltage Lockout / Under Voltage Lockout
RoHS Compatible Product(s) (#) Available

包裝資訊

Toshiba Package Name WCSP6E
Package Image WCSP6E
Pins 6
Mounting Surface Mount
Width×Length×Height
(mm)
1.2×0.8×0.55
Package Dimensions 檢視
Land pattern dimensions 檢視
CAD data
(Symbol, Footprint and 3D model)
Download from UltraLibrarian<sup>®</sup> in your desired CAD format (Note) Download from UltraLibrarian® in your desired CAD format (Note)

 Please refer to the link destination to check the detailed size.

 (Note) Ultra Librarian® is a Registered trademark and CAD data library of EMA (EMA Design Automation, Inc.).

絕對最大額定值

項目 符號 單位
Power dissipation (Mounted on FR4 board(40mm×40mm)) PD 0.8 W
Input Voltage VIN 40 V

電器特性

項目 符號 條件 單位
Operating Temperature Topr - -40 to 85
Operating Input Voltage (Max) VIN - 28 V
Operating Input Voltage (Min) VIN - 2.7 V
GATE drive voltage (Typ.) VGS VIN=12V 8.5 V
Stand-by current (Typ.) IQ(OFF) VIN=5V 3 μA
