PV Inverter for Household Use

PV Inverter for Household Use

Such as high efficiency and miniaturization are important in designing PV inverter for household use. Toshiba provides information on a wide range of semiconductor products suitable for convertercircuit unit, inverter circuit unit, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 Junction Box JunctionBox Isolation Amp IsolationAmp Isolation Amp IsolationAmp AC Noise Filter AC Noise Filter Boost Converter Boost Converter Inverter Circuit Inverter Circuit Phase Current Monitoring Phase Current Monitoring BUS Voltage Monitoring BUS Voltage Monitoring Network I/O RS-485 etc Fan / Display Network I/ORS-485 etcFan / Display Solar Panel Solar Panel Solar Panel Solar Panel Solar Panel Solar Panel MCU MCU DC-DC DC-DC MCU, Photocoupler, Isolation Amp, etc. MCU, Photocoupler, Isolation Amp, etc. Isolation Isolation Photo coupler Photocoupler MOS FET MOSFET Photo coupler Photocoupler MOS FET MOSFET MOS FET MOSFET MOS FET MOSFET MOS FET MOSFET Photo coupler Photocoupler Photo coupler Photocoupler Photo coupler Photocoupler Isolation Amp IsolationAmp Boost converter circuit Inverter circuit
Boost converter circuit

Example of DC-DC converter for boosting the voltages of solar panels

Inverter circuit

Example of full-bridge DC-AC converter

Sub block diagram

Boost converter circuit
Boost converter circuit

Example of DC-DC converter for boosting the voltages of solar panels

Example of DC-DC converter for boosting the voltages of solar panels
IC output photocoupler
Part Number
TLP2719
Toshiba Package Name SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000
VCC / VDD (Min) [V]
VCC / VDD (Max) [V]
ICC / IDD (Max) [mA] 0.001
Output Interface open-collector
Search for lineup
IC output photocoupler（Smart Gate Driver Coupler）
Part Number
TLP5231
TLP5214
TLP5214A
Toshiba Package Name SO16L SO16L SO16L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000
VCC / VDD (Min) [V] 15.0 15 15
VCC / VDD (Max) [V] 23.5 30 30
ICC / IDD (Max) [mA] 10.2 3.5 3.8
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
Search for lineup
Isolation amplifier
Part Number
TLP7820
Toshiba Package Name SO8L(LF4)
Output Interface Analog output
BVS (Min) [Vrms] @ t = 60 [s] 5000
VDD1 (Max) [V] 5.5
VDD2 (Max) [V] 5.5
IDD1 (Max) [mA] @ VIN+ = 0 [V] 12
IDD2 (Max) [mA] @ VIN+ = 0 [V] 10
Search for lineup
Low noise operational amplifier
Part Number
TC75S67TU
Toshiba Package Name SOT-353F (UFV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Search for lineup
Inverter circuit
Inverter circuit

Example of full-bridge DC-AC converter

Example of full-bridge DC-AC converter
IC output photocoupler
Part Number
TLP2719
Toshiba Package Name SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000
VCC / VDD (Min) [V]
VCC / VDD (Max) [V]
ICC / IDD (Max) [mA] 0.001
Output Interface open-collector
Search for lineup
IC output photocoupler（Smart Gate Driver Coupler）
Part Number
TLP5231
TLP5214
TLP5214A
Toshiba Package Name SO16L SO16L SO16L
BVS (Min) [Vrms] @ t = 60 [s] 5000 5000 5000
VCC / VDD (Min) [V] 15.0 15 15
VCC / VDD (Max) [V] 23.5 30 30
ICC / IDD (Max) [mA] 10.2 3.5 3.8
Output Interface totem-pole(BUF) totem-pole(BUF) totem-pole(BUF)
Search for lineup
DTMOS Series MOSFET
Part Number
TK090E65Z
TK090U65Z
TK090A65Z
TK090N65Z
TK090Z65Z
Toshiba Package Name TO-220 TOLL TO-220SIS TO-247 TO-247-4L
VDSS (Max) [V] 650 650 650 650 650
ID (Max) [A] 30 30 30 30 30
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.09 0.09 0.09 0.09 0.09
Polarity N-ch N-ch N-ch N-ch N-ch
Search for lineup
Isolation amplifier
Part Number
TLP7820
Toshiba Package Name SO8L(LF4)
Output Interface Analog output
BVS (Min) [Vrms] @ t = 60 [s] 5000
VDD1 (Max) [V] 5.5
VDD2 (Max) [V] 5.5
IDD1 (Max) [mA] @ VIN+ = 0 [V] 12
IDD2 (Max) [mA] @ VIN+ = 0 [V] 10
Search for lineup
Low noise operational amplifier
Part Number
TC75S67TU
Toshiba Package Name SOT-353F (UFV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Search for lineup
MCU
Series TX03 Series
Group M380 Group
Search for lineup

Solution Proposal

These documents explain the key points of recommended semiconductor products and their features. Please use them for product selection.

Solution Proposal

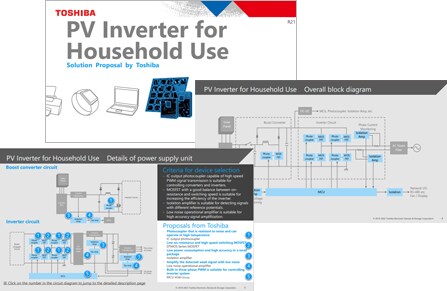

SolutionProposal_PV Inverter for Household Use / English (PDF:834KB)
SolutionProposal_PV Inverter for Household Use / Japanese (PDF:1.2MB)

Documents

Please see the following pages for other documents.
