Panel display circuit

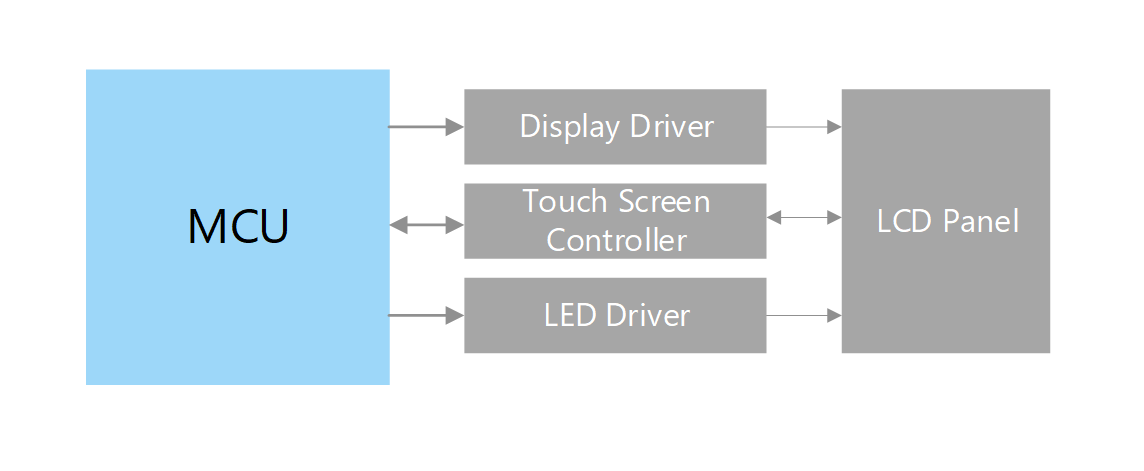

Example of LCD panel display driving circuit using MCU
Lineup
MCU TX00 Series
Part number |
||
|---|---|---|
Maximum operation frequency |
20 MHz |
20 MHz |
Instruction ROM |
128 KB |
128 KB |
RAM |
16 KB |
16 KB |
Timer |
14ch |
10ch |
| UART / SIO | 6 | 5 |
| I2C | 2 | 1 |
| AD converter | 8ch (10bit) | 8ch (10bit) |
MCU TXZ+™ 3A Series
Part number |
TMPM3HQFDAFG TMPM3HQFZAFG TMPM3HQFYAFG |
TMPM3HNFDAFG TMPM3HNFZAFG TMPM3HNFYAFG |
TMPM3HNFDADFG TMPM3HNFZADFG TMPM3HNFYADFG |
TMPM3HLFDAUG TMPM3HLFZAUG TMPM3HLFYAUG |
|---|---|---|---|---|
Operation frequency |
120 MHz (Max) |
|||
Code flash |
512/384/256 KB | |||
RAM |
66 KB (with parity) | |||
Timer |
32bit x 8ch (16bit x 16ch) | |||
| AD converter | 21ch (12bit) | 17ch (12bit) | 12ch (12bit) | |
| Serial communication | UART: 8ch, I2C: 4ch, TSPI: 5ch |
UART: 8ch, I2C: 3ch, TSPI: 4ch |
UART: 7ch, I2C: 2ch, TSPI: 1ch |
|
| Package | P-LQFP144-2020-0.50-002 | P-LQFP100-1414-0.50-002 | P-QFP100-1420-0.65-001 | P-LQFP64-1010-0.50-003 |
* TXZ+™ is a trademark of Toshiba Electronic Devices & Storage Corporation.
