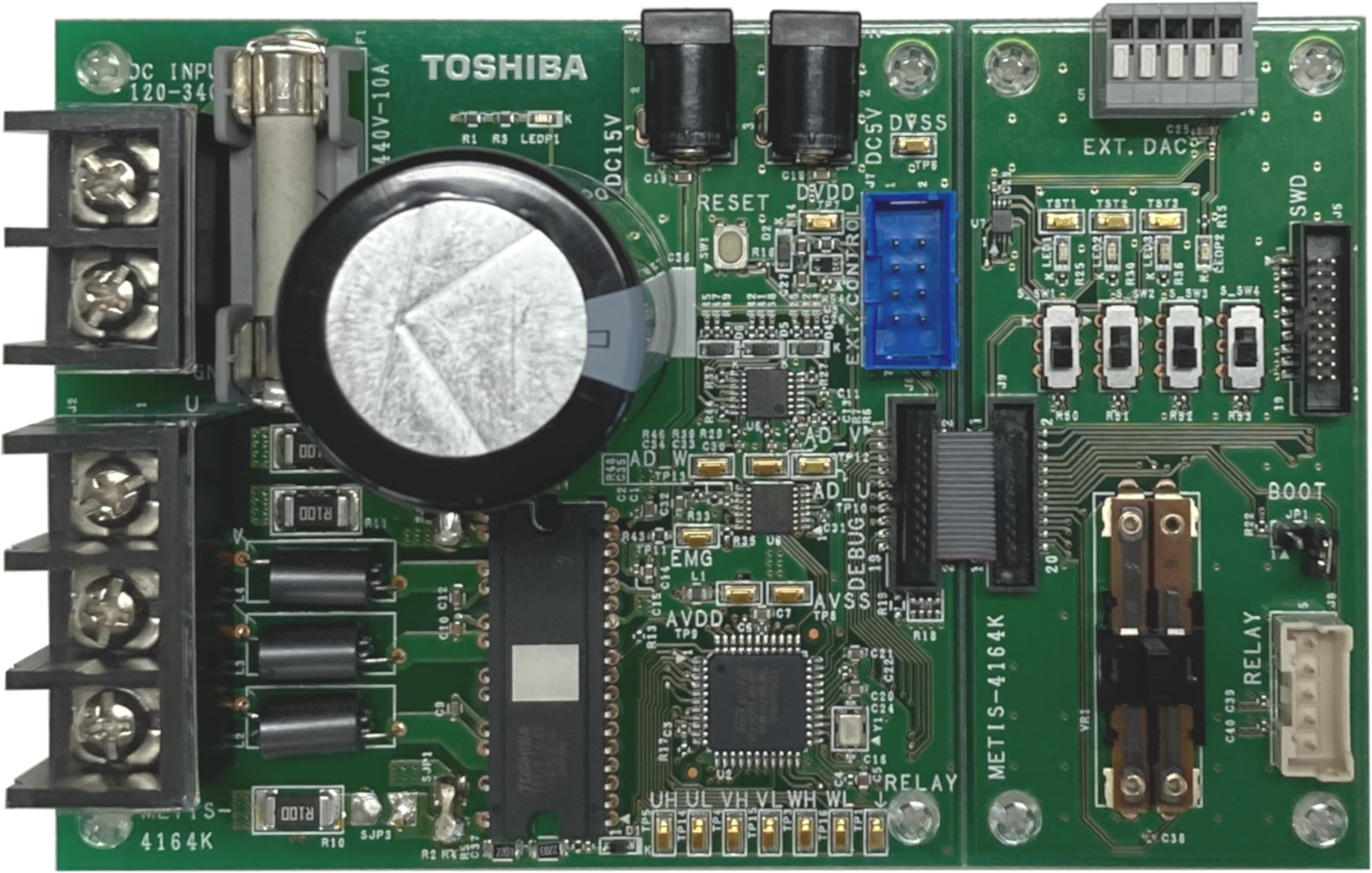

DC 300 V Input BLDC Motor Sensorless Control Circuit Using TPD4164K

This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164K
TMPM374FWUG TMPM374FWUG TPD4164K TPD4164K

Click on components for more details

Features

  • Sensorless Vector Control, 3-shunt and 1-shunt Configuration Support
  • Outline Size : 130 mm x 85 mm x 53.4 mm
  • Simple configuration by using compact Intelligent Power IC and MCU for motor control supporting vector control

Description

Motor Input Voltage DC 120 to 340 V
Max Motor Drive Current 2 A (Using TPD4164K)
Control Input Voltage DC 15 V, DC 5 V
Control Method Sensorless Vector Control

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

Used Toshiba Items

Part Number Device Category Portion Usage Description
Intelligent power device 600V (High voltage PWM DC brushless motor driver) Motor Drive・1 600 V/2 A 3-phase Brushless DC Motor Driver IC built-in Power Device, HDIP30
TX03 Motor Control・1

Related Documents

We provide materials useful for designing and considering similar circuits, such as application notes for installed products. Please click on each tab to view the contents.

Related Reference Design

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4204F

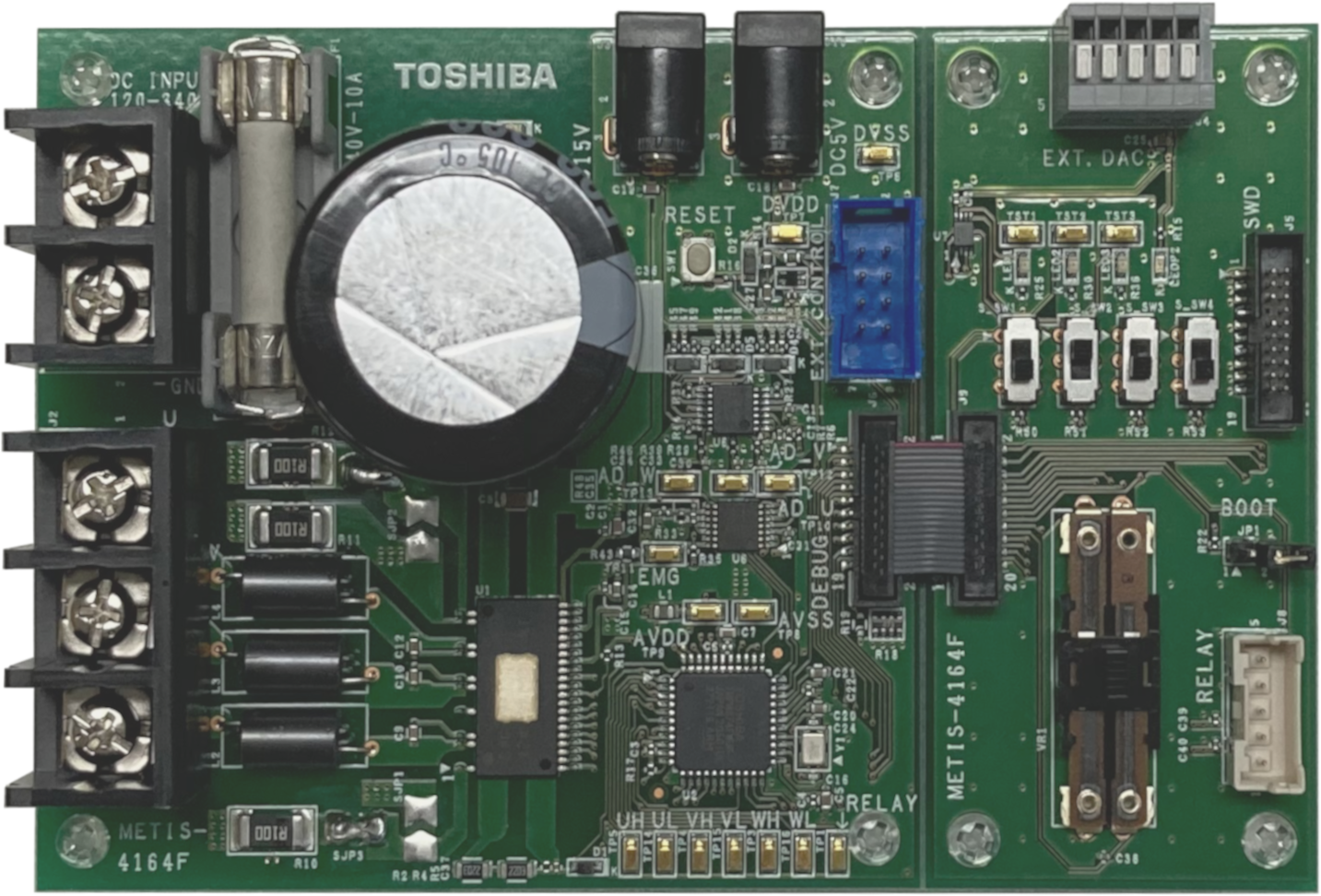

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164F
