DC 300 V Input BLDC Motor Sensorless Control Circuit Using TPD4164K

This reference design provides design guide, data and other contents of DC 300 V Input BLDC Motor Sensorless Control Circuit using Intelligent Power IC. It achieves vector control with the MCU designed for Motor control.

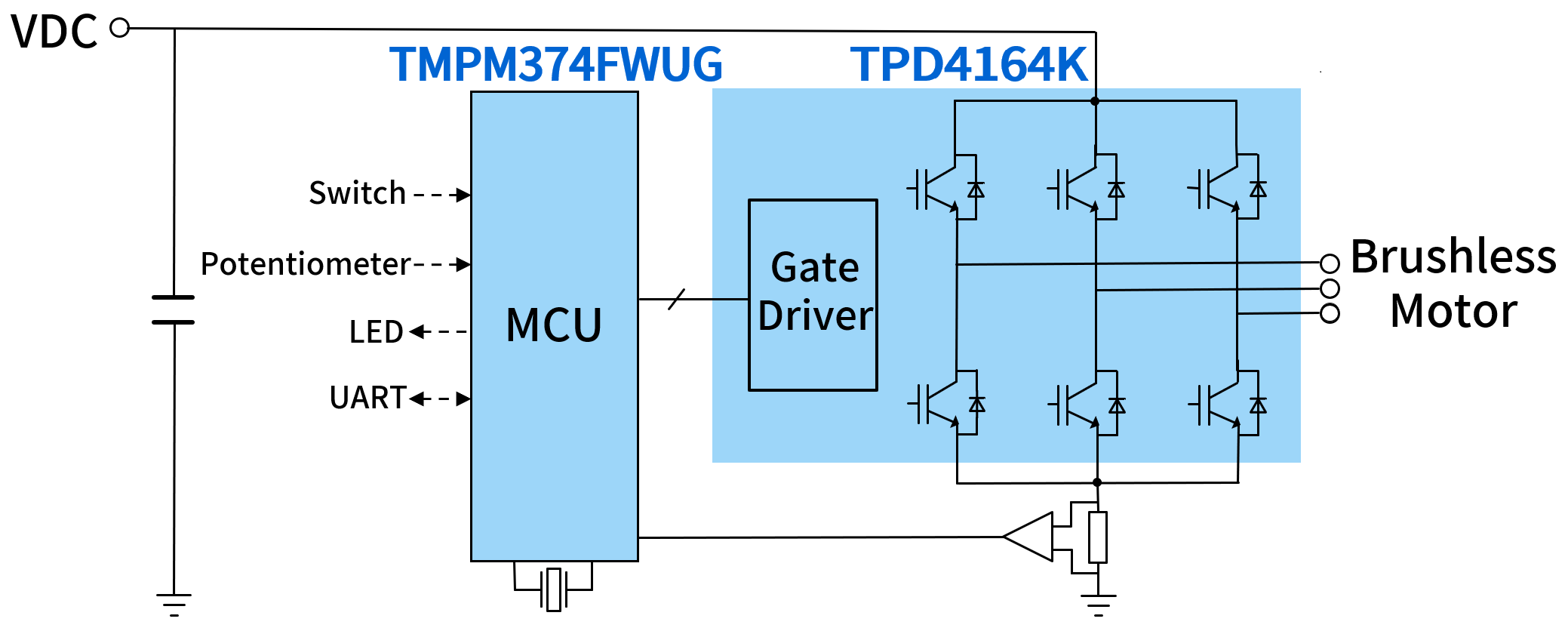

DC 300 V Input BLDC Motor Sensorless Control Circuit using TPD4164K
TMPM374FWUG TMPM374FWUG TPD4164K TPD4164K

Click on components for more details

特性

  • Sensorless Vector Control, 3-shunt and 1-shunt Configuration Support
  • Outline Size : 130 mm x 85 mm x 53.4 mm
  • Simple configuration by using compact Intelligent Power IC and MCU for motor control supporting vector control

說明

Motor Input Voltage DC 120 to 340 V
Max Motor Drive Current 2 A (Using TPD4164K)
Control Input Voltage DC 15 V, DC 5 V
Control Method Sensorless Vector Control

設計文件

供設計人員使用的材料，例如電路操作概述和設計注意事項的解釋。請點擊每個選項以查看內容。

設計數據

提供可載入到EDA工具中的電路資料、PCB佈局資料以及PCB製造中使用的資料。來自多個工具供應商的可用格式。您可以使用喜歡的工具來自由的編輯它。

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Intelligent power device 600V (High voltage PWM DC brushless motor driver) Motor Drive・1 600 V/2 A 3-phase Brushless DC Motor Driver IC built-in Power Device, HDIP30
