Robot Cleaner

Robot Cleaner

Such as high efficiency, low power consumption and miniaturization are important in designing robot cleaner. Toshiba provides information on a wide range of semiconductor products suitable for power supply unit, motor driving units, sensor signal input unit, etc., along with circuit configuration examples.

Overall block diagram

Click the area you want to check the details in the overall block diagram. Show links to our proposed sub-block diagram.

 Motor Control MCU Motor ControlMCU Flash Flash Floor IR Sensor Floor IR Sensor Home IR Sensor Home IR Sensor Image Sensor Image Sensor IR Sensor Array IR Sensor Array Dust Bin IR Sensor Dust Bin IR Sensor Suction Fan Motor Suction Fan Motor Main Brush Motor Main Brush Motor Side Brush Motor Side Brush Motor Traction Motor 1 Traction Motor 1 Traction Motor 2 Traction Motor 2 Wi-Fi®/ Bluetooth® Wi-Fi®/Bluetooth® Speaker Speaker MIC MIC DDR DDR Driver Driver Driver Driver Driver Driver Driver Driver Driver Driver ADC ADC Audio Power Amp Audio Power Amp Controller MCU ControllerMCU User Key Interface User Key Interface 100 to 240 VAC 100 to 240 VAC Lithium Ion Battery Lithium IonBattery Battery Cell Balance IC Battery CellBalance IC AC-DC AC-DC Op-amp Op-amp Op-amp Op-amp Op-amp Op-amp Op-amp Op-amp TVS TVS TVS TVS M M M M M M M M M M Infrared sensor circuit Wireless communication circuit Flyback AC-DC circuit LED drive circuit Motor drive circuit
Motor drive circuit

Example of three-phase brushless DC motor drive circuit

Example of brushed DC motor drive circuit using H-bridge

Example of driving circuit for 3 phase blrushless DC motor

Example of driving circuit for brushed DC motor

LED drive circuit for status display

Example of LED drive circuit using bipolar transistor

Flyback AC-DC circuit

Example of flyback AC-DC converter feedback circuit using Photocouplers

Wi-Fi/Bluetooth circuit

Example of core chip power supply and antenna protection circuit

Infrared sensor circuit

Example of infrared sensor circuit using photodiode

Sub block diagram

Motor drive circuit
Brushless DC motor drive circuit (IPD + MOSFET)

Example of three-phase brushless DC motor drive circuit

Example of three-phase brushless DC motor drive circuit
Intelligent power devices (IPD)
Part Number
Toshiba Package name WQFN32 SSOP30(SSOP30-P-300-0.65)
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +1.5/-1 +1.5/-1
U-MOS Series N-ch MOSFET (30 to 60 V)
Part Number
Toshiba Package Name TSON Advance TSON Advance SOP Advance
VDSS (Max) [V] 30 60 40
ID (Max) [A] 76 76 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0052 0.007 0.00074
Polarity N-ch N-ch N-ch
U-MOS Series N-ch MOSFET (80 V)(1)
Part Number
Toshiba Package Name SOP Advance SOP Advance(N) TSON Advance TSON Advance TSON Advance
VDSS (Max) [V] 80 80 80 80 80
ID (Max) [A] 120 86 32 26 34
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00243 0.004 0.0084 0.0123 0.019
Polarity N-ch N-ch N-ch N-ch N-ch
U-MOS Series N-ch MOSFET (80 V)(2)
Part Number
Toshiba Package Name DPAK(2-7N1S) DPAK(2-7N1S)
VDSS (Max) [V] 80 80
ID (Max) [A] 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0051 0.0069
Polarity N-ch N-ch
Low noise operational amplifier
Part Number
Toshiba Package Name UFV
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
Electronic Fuse (eFuse IC)(1)
Part Number
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
Electronic Fuse (eFuse IC)(2)
Part Number
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
Brushed DC motor drive circuit (IPD + MOSFET)

Example of brushed DC motor drive circuit using H-bridge

Example of brushed DC motor drive circuit using H-bridge
Intelligent power devices (IPD)
Part Number
Toshiba Package name WQFN32
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +1.5/-1
U-MOS Series P-ch MOSFET
Part Number
Toshiba Package Name TSON Advance SOP Advance
VDSS (Max) [V] -30 -30
ID (Max) [A] -10 -45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0176 0.003
Polarity P-ch P-ch
U-MOS Series N-ch MOSFET (30 to 60 V)
Part Number
Toshiba Package Name TSON Advance TSON Advance SOP Advance
VDSS (Max) [V] 30 60 40
ID (Max) [A] 76 76 400
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0052 0.007 0.00074
Polarity N-ch N-ch N-ch
U-MOS Series N-ch MOSFET (80 V)(1)
Part Number
Toshiba Package Name SOP Advance SOP Advance(N) TSON Advance TSON Advance TSON Advance
VDSS (Max) [V] 80 80 80 80 80
ID (Max) [A] 120 86 32 26 34
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.00243 0.004 0.0084 0.0123 0.019
Polarity N-ch N-ch N-ch N-ch N-ch
U-MOS Series N-ch MOSFET (80 V)(2)
Part Number
Toshiba Package Name DPAK(2-7N1S) DPAK(2-7N1S)
VDSS (Max) [V] 80 80
ID (Max) [A] 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0051 0.0069
Polarity N-ch N-ch
Electronic Fuse (eFuse IC)(1)
Part Number
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
Electronic Fuse (eFuse IC)(2)
Part Number
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
Brushless DC motor drive circuit (Motor Driver)

Example of driving circuit for 3 phase blrushless DC motor

Example of driving circuit for 3 phase blrushless DC motor
Brushless DC motor driver
Part Number
Toshiba Package Name P-VQFN36-0505-0.50-001 P-WQFN36-0505-0.50-001
VOUT (Max) [V] 25 30
IOUT (Max) [A] 3 0.24
VM [V] 5.5 to 22 5.5 to 27
RON (Typ.) [Ω] 0.6
Brushed DC motor drive circuit (Motor Driver)

Example of driving circuit for brushed DC motor

Example of driving circuit for brushed DC motor
1ch brushed DC motor driver
Part Number
Toshiba Package Name P-HSOP8-0405-1.27-002 P-HSOP8-0405-1.27-002
VOUT (Max) [V] 50 50
IOUT (Max) [A] 3.5 3.5
VM [V] 4.5 to 44 4.5 to 44
RON(Normal) (Typ.) [Ω] 0.6 0.6
RON(Large) (Typ.) [Ω]
2ch brushed DC motor driver
Part Number
Toshiba Package Name P-VQFN48-0707-0.50-004 P-VQFN48-0707-0.50-004
VOUT (Max) [V] 50 50
IOUT (Max) [A] 3 4.5
VM [V] 10 to 47 10 to 47
RON(Normal) (Typ.) [Ω] 0.49 0.33
RON(Large) (Typ.) [Ω] 0.245 0.165
LED drive circuit for status display
LED drive circuit for status display

Example of LED drive circuit using bipolar transistor

Example of LED drive circuit using bipolar transistor
Bipolar transistor(1)
Part Number
Toshiba Package Name S-Mini SOT23 S-Mini SOT23
VCEO (Max) [V] 50 50 -50 -50
IC (Max) [mA] 0.15 0.15 -0.15 -0.15
Polarity NPN NPN PNP PNP
Bipolar transistor(2)
Part Number
Toshiba Package Name US6
VCEO (Q1) (Max) [V] -50
VCEO (Q2) (Max) [V] 50
IC (Q1) (Max) [mA] -0.15
IC (Q2) (Max) [mA] 0.15
Polarity (Q1) PNP
Polarity (Q2) NPN
Flyback AC-DC circuit
Flyback AC-DC circuit

Example of flyback AC-DC converter feedback circuit using Photocouplers

Example of flyback AC-DC converter feedback circuit using Photocouplers
Transistor output photocoupler
Part Number
Toshiba Package Name 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000
VCEO (Max) [V] 80
Topr [°C] -55 to 125
Wi-Fi/Bluetooth circuit
Wi-Fi/Bluetooth circuit

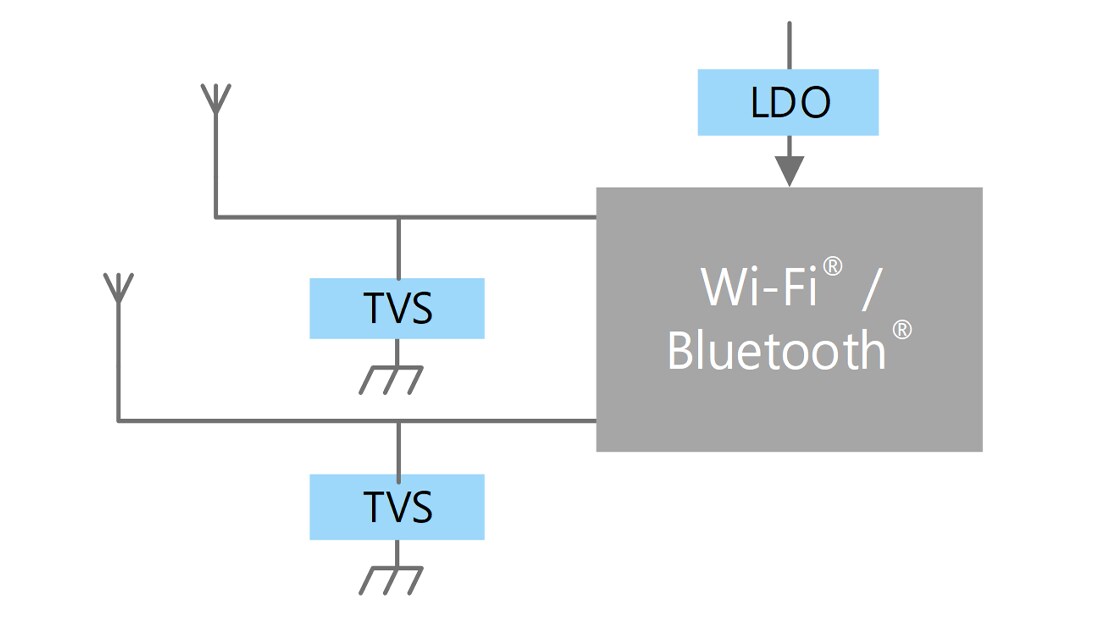

Example of core chip power supply and antenna protection circuit

Example of core chip power supply and antenna protection circuit
Small surface mount LDO regulator(1)
Part Number
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
Small surface mount LDO regulator(2)
Part Number
Toshiba Package Name WCSP4F DFN4C WCSP4F ESV SMV
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
TVSダイオード
Part Number
Toshiba Package Name SL2 SL2
VESD (Max) [kV] +/-20 +/-20
IR (Max) [µA] 0.1 0.1
Rdyn (Typ.) [Ω] 0.5 0.5
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 0.2 0.2
Infrared sensor circuit
Infrared sensor circuit

Example of infrared sensor circuit using photodiode

Example of infrared sensor circuit using photodiode
Low noise operational amplifier
Part Number
Toshiba Package Name UFV
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
