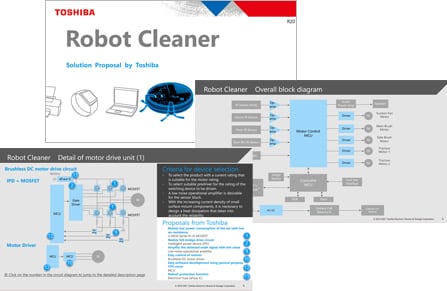

Robot Cleaner

Robot Cleaner

Such as high efficiency, low power consumption and miniaturization are important in designing robot cleaner. Toshiba provides information on a wide range of semiconductor products suitable for power supply unit, motor driving units, sensor signal input unit, etc., along with circuit configuration examples.

總方塊圖

點選總方塊圖中要查看詳細資訊的區域。顯示我們建議的子方塊圖的連結。

 Motor Control MCU Motor ControlMCU Flash Flash Floor IR Sensor Floor IR Sensor Home IR Sensor Home IR Sensor Image Sensor Image Sensor IR Sensor Array IR Sensor Array Dust Bin IR Sensor Dust Bin IR Sensor Suction Fan Motor Suction Fan Motor Main Brush Motor Main Brush Motor Side Brush Motor Side Brush Motor Traction Motor 1 Traction Motor 1 Traction Motor 2 Traction Motor 2 Wi-Fi®/ Bluetooth® Wi-Fi®/Bluetooth® Speaker Speaker MIC MIC DDR DDR Driver Driver Driver Driver Driver Driver Driver Driver Driver Driver ADC ADC Audio Power Amp Audio Power Amp Controller MCU ControllerMCU User Key Interface User Key Interface 100 to 240 VAC 100 to 240 VAC Lithium Ion Battery Lithium IonBattery Battery Cell Balance IC Battery CellBalance IC AC-DC AC-DC Op-amp Op-amp Op-amp Op-amp Op-amp Op-amp Op-amp Op-amp TVS TVS TVS TVS M M M M M M M M M M Dock Station Dock Station Infrared sensor circuit Motor drive circuit LED drive circuit Wireless communication circuit Flyback AC-DC circuit
Motor drive circuit

Example of three-phase brushless DC motor drive circuit

Example of three-phase brushless DC motor drive circuit

Example of driving circuit for 3 phase blrushless DC motor

Example of brushed DC motor drive circuit using H-bridge

Example of driving circuit for brushed DC motor

LED drive circuit for status display

Example of LED drive circuit using bipolar transistor

Flyback AC-DC circuit

Example of flyback AC-DC converter feedback circuit using Photocouplers

Wi-FiⓇ/BluetoothⓇ circuit

Example of core chip power supply and antenna protection circuit

Infrared sensor circuit

Example of infrared sensor circuit using photodiode

子方塊圖

Motor drive circuit
Brushless DC motor drive circuit (IPD + MOSFET / Pre-driver + MOSFET type)

Example of three-phase brushless DC motor drive circuit

Example of three-phase brushless DC motor drive circuit
Intelligent power devices (IPD)
器件型號
TPD7212FN
Toshiba Package name SSOP30
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +1.5/-1
搜尋產品線
Brushless DC motor pre-driver IC
器件型號
TC78B009FTG
TC78B011FTG
Toshiba Package Name P-WQFN36-0505-0.50-001 P-WQFN36-0505-0.50-001
VOUT (Max) [V] 30 30
IOUT (Max) [A] 0.24 0.24
VM [V] 5.5 to 27 5.5 to 27
RON (Typ.) [Ω]
搜尋產品線
U-MOS Series N-ch MOSFET (1)
器件型號
TPN5R203PL
TPN7R006PL
TPHR7404PU
TPH2R408QM
TPH4R008QM
Toshiba Package Name TSON Advance TSON Advance SOP Advance SOP Advance SOP Advance(N)
VDSS (Max) [V] 30 60 40 80 80
ID (Max) [A] 76 76 400 120 86
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0052 0.007 0.00074 0.00243 0.004
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series N-ch MOSFET (2)
器件型號
TPN8R408QM
TPN12008QM
TPN19008QM
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name TSON Advance TSON Advance TSON Advance DPAK DPAK
VDSS (Max) [V] 80 80 80 80 80
ID (Max) [A] 32 26 34 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0084 0.0123 0.019 0.0051 0.0069
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
Low noise operational amplifier
器件型號
TC75S67TU
Toshiba Package Name SOT-353F (UFV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
搜尋產品線
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
Brushless DC motor drive circuit (IPD + MOSFET / Pre-driver + MOSFET type) Power supply section

Example of three-phase brushless DC motor drive circuit

Example of three-phase brushless DC motor drive circuit
Electronic fuse (eFuse IC) (1)
器件型號
TCKE800NA
TCKE805NA
TCKE812NA
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
搜尋產品線
Electronic fuse (eFuse IC) (2)
器件型號
TCKE800NL
TCKE805NL
TCKE812NL
TCKE712BNL
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
搜尋產品線
N-ch MOSFET gate driver IC (1)
器件型號
TCK401G
TCK402G
TCK420G
TCK421G
TCK422G
Toshiba Package Name WCSP6E WCSP6E WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V]     27.56 23.14 14.17
VOVL_RI (Typ.) [V]     27.73 23.26 14.29
VGS (Typ.) [V] 8.5 8.5 10 10 10
搜尋產品線
N-ch MOSFET gate driver IC (2)
器件型號
TCK423G
TCK424G
TCK425G
Toshiba Package Name WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V] 14.17 10.71 6.19
VOVL_RI (Typ.) [V] 14.29 10.83 6.31
VGS (Typ.) [V] 5.6 5.6 5.6
搜尋產品線
Brushless DC motor drive circuit (Motor Driver type)

Example of driving circuit for 3 phase blrushless DC motor

Example of driving circuit for 3 phase blrushless DC motor
Brushless DC motor driver
器件型號
TB67B001FTG
Toshiba Package Name P-VQFN36-0505-0.50-001
VOUT (Max) [V] 25
IOUT (Max) [A] 3
VM [V] 5.5 to 22
RON (Typ.) [Ω] 0.6
搜尋產品線
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
Electronic fuse (eFuse IC) (1)
器件型號
TCKE800NA
TCKE805NA
TCKE812NA
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
搜尋產品線
Electronic fuse (eFuse IC) (2)
器件型號
TCKE800NL
TCKE805NL
TCKE812NL
TCKE712BNL
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
搜尋產品線
N-ch MOSFET gate driver IC (1)
器件型號
TCK401G
TCK402G
TCK420G
TCK421G
TCK422G
Toshiba Package Name WCSP6E WCSP6E WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V]     27.56 23.14 14.17
VOVL_RI (Typ.) [V]     27.73 23.26 14.29
VGS (Typ.) [V] 8.5 8.5 10 10 10
搜尋產品線
N-ch MOSFET gate driver IC (2)
器件型號
TCK423G
TCK424G
TCK425G
Toshiba Package Name WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V] 14.17 10.71 6.19
VOVL_RI (Typ.) [V] 14.29 10.83 6.31
VGS (Typ.) [V] 5.6 5.6 5.6
搜尋產品線
Brushed DC motor drive circuit (IPD + MOSFET type)

Example of brushed DC motor drive circuit using H-bridge

Example of brushed DC motor drive circuit using H-bridge
Intelligent power devices (IPD)
器件型號
TPD7211F
Toshiba Package name PS-8
VBB (Max) [V]
VCC (Max) [V]
IO (Max) [A] +0.5/-0.5
搜尋產品線
U-MOS Series P-ch MOSFET
器件型號
TPCC8131
TPCA8120
Toshiba Package Name TSON Advance SOP Advance
VDSS (Max) [V] -30 -30
ID (Max) [A] -10 -45
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0176 0.003
Polarity P-ch P-ch
搜尋產品線
U-MOS Series N-ch MOSFET (1)
器件型號
TPN5R203PL
TPN7R006PL
TPHR7404PU
TPH2R408QM
TPH4R008QM
Toshiba Package Name TSON Advance TSON Advance SOP Advance SOP Advance SOP Advance(N)
VDSS (Max) [V] 30 60 40 80 80
ID (Max) [A] 76 76 400 120 86
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0052 0.007 0.00074 0.00243 0.004
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
U-MOS Series N-ch MOSFET (2)
器件型號
TPN8R408QM
TPN12008QM
TPN19008QM
TK5R1P08QM
TK6R9P08QM
Toshiba Package Name TSON Advance TSON Advance TSON Advance DPAK DPAK
VDSS (Max) [V] 80 80 80 80 80
ID (Max) [A] 32 26 34 84 62
RDS(ON) (Max) [Ω] @ |VGS| = 10.0 [V] 0.0084 0.0123 0.019 0.0051 0.0069
Polarity N-ch N-ch N-ch N-ch N-ch
搜尋產品線
Electronic Fuse (eFuse IC) (1)
器件型號
TCKE800NA
TCKE805NA
TCKE812NA
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
搜尋產品線
Electronic Fuse (eFuse IC) (2)
器件型號
TCKE800NL
TCKE805NL
TCKE812NL
TCKE712BNL
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
搜尋產品線
N-ch MOSFET gate driver IC (1)
器件型號
TCK401G
TCK402G
TCK420G
TCK421G
TCK422G
Toshiba Package Name WCSP6E WCSP6E WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V]     27.56 23.14 14.17
VOVL_RI (Typ.) [V]     27.73 23.26 14.29
VGS (Typ.) [V] 8.5 8.5 10 10 10
搜尋產品線
N-ch MOSFET gate driver IC (2)
器件型號
TCK423G
TCK424G
TCK425G
Toshiba Package Name WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V] 14.17 10.71 6.19
VOVL_RI (Typ.) [V] 14.29 10.83 6.31
VGS (Typ.) [V] 5.6 5.6 5.6
搜尋產品線
Brushed DC motor drive circuit (Motor Driver type)

Example of driving circuit for brushed DC motor

Example of driving circuit for brushed DC motor
1ch brushed DC motor driver
器件型號
TB67H450AFNG
TB67H451AFNG
Toshiba Package Name P-HSOP8-0405-1.27-002 P-HSOP8-0405-1.27-002
VOUT (Max) [V] 50 50
IOUT (Max) [A] 3.5 3.5
VM [V] 4.5 to 44 4.5 to 44
RON(Normal) (Typ.) [Ω] 0.6 0.6
RON(Large) (Typ.) [Ω]
搜尋產品線
2ch brushed DC motor driver
器件型號
TB67H401FTG
TB67H420FTG
Toshiba Package Name P-VQFN48-0707-0.50-004 P-VQFN48-0707-0.50-004
VOUT (Max) [V] 50 50
IOUT (Max) [A] 3 4.5
VM [V] 10 to 47 10 to 47
RON(Normal) (Typ.) [Ω] 0.49 0.33
RON(Large) (Typ.) [Ω] 0.245 0.165
搜尋產品線
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線
Electronic fuse (eFuse IC) (1)
器件型號
TCKE800NA
TCKE805NA
TCKE812NA
Toshiba Package Name WSON10B WSON10B WSON10B
VIN (Max) [V] 18 18 18
RON (Typ.) [mΩ] 28 28 28
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Auto-retry Auto-retry Auto-retry
搜尋產品線
Electronic fuse (eFuse IC) (2)
器件型號
TCKE800NL
TCKE805NL
TCKE812NL
TCKE712BNL
Toshiba Package Name WSON10B WSON10B WSON10B WSON10
VIN (Max) [V] 18 18 18 13.2
RON (Typ.) [mΩ] 28 28 28 53
VOVC (Typ.) [V]   6.04 15.1
Recovery Operation Type Latch Latch Latch Latch
搜尋產品線
N-ch MOSFET gate driver IC (1)
器件型號
TCK401G
TCK402G
TCK420G
TCK421G
TCK422G
Toshiba Package Name WCSP6E WCSP6E WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V]     27.56 23.14 14.17
VOVL_RI (Typ.) [V]     27.73 23.26 14.29
VGS (Typ.) [V] 8.5 8.5 10 10 10
搜尋產品線
N-ch MOSFET gate driver IC (2)
器件型號
TCK423G
TCK424G
TCK425G
Toshiba Package Name WCSP6G WCSP6G WCSP6G
VOVL_FA (Typ.) [V] 14.17 10.71 6.19
VOVL_RI (Typ.) [V] 14.29 10.83 6.31
VGS (Typ.) [V] 5.6 5.6 5.6
搜尋產品線
LED drive circuit for status display
LED drive circuit for status display

Example of LED drive circuit using bipolar transistor

Example of LED drive circuit using bipolar transistor
Bipolar transistor (1)
器件型號
2SC2712
TBC847
2SA1162
TBC857
Toshiba Package Name SOT-346 (S-Mini) SOT-23 (SOT23) SOT-346 (S-Mini) SOT-23 (SOT23)
VCEO (Max) [V] 50 50 -50 -50
IC (Max) [A] 0.15 0.15 -0.15 -0.15
Polarity NPN NPN PNP PNP
搜尋產品線
Bipolar transistor (2)
器件型號
HN1B01FU
Toshiba Package Name SOT-363 (US6)
VCEO (Q1) (Max) [V] -50
VCEO (Q2) (Max) [V] 50
IC (Q1) (Max) [A] -0.15
IC (Q2) (Max) [A] 0.15
Polarity (Q1) PNP
Polarity (Q2) NPN
搜尋產品線
Flyback AC-DC circuit
Flyback AC-DC circuit

Example of flyback AC-DC converter feedback circuit using Photocouplers

Example of flyback AC-DC converter feedback circuit using Photocouplers
Transistor output photocoupler
器件型號
TLP383
Toshiba Package Name 4pin SO6L
BVS (Min) [Vrms] @ t = 60 [s] 5000
VCEO (Max) [V] 80
Topr [°C] -55 to 125
搜尋產品線
Wi-FiⓇ/BluetoothⓇ circuit
Wi-FiⓇ/BluetoothⓇ circuit

Example of core chip power supply and antenna protection circuit

Example of core chip power supply and antenna protection circuit
Small surface mount LDO regulator (1)
器件型號
TCR15AG Series
TCR13AG Series
TCR8BM Series
TCR5BM Series
Toshiba Package Name WCSP6F WCSP6F DFN5B DFN5B
IOUT (Max) [mA] 1500 1300 800 500
VOUT [V] 0.6 to 3.6 0.55 to 3.6 0.8 to 3.6 0.8 to 3.6
搜尋產品線
Small surface mount LDO regulator (2)
器件型號
TCR5RG Series
TCR3RM Series
TCR3U Series
TCR2L Series
TAR5 Series
Toshiba Package Name WCSP4F DFN4F WCSP4F SOT-553 (ESV) SOT-25 (SMV)
IOUT (Max) [mA] 500 300 300 200 200
VOUT [V] 0.9 to 5.0 0.9 to 4.5 0.8 to 5.0 0.8 to 3.6 1.5 to 5.0
搜尋產品線
TVS diode
器件型號
DF2B5M4SL
DF2B6M4SL
DF2B6M4BSL
Toshiba Package Name SOD-962 (SL2) SOD-962 (SL2) SOD-962 (SL2)
VESD (Max) [kV] +/-20 +/-20 +/-8
IR (Max) [µA] 0.1 0.1 0.1
Rdyn (Typ.) [Ω] 0.5 0.5 1.05
CT (Typ.) [pF] @ VR = 0 [V], f = 1 [MHz] 0.2 0.2 0.12
搜尋產品線
Infrared sensor circuit
Infrared sensor circuit

Example of infrared sensor circuit using photodiode

Example of infrared sensor circuit using photodiode
Low noise operational amplifier
器件型號
TC75S67TU
Toshiba Package Name SOT-353F (UFV)
VCC (Max) [V] 5.5
VCC, VEE (Max) [V] +/-2.75
搜尋產品線
TXZ+TM 4A Series M4K Group / TX04 Series M470 Group / TX03 Series M370 Group
Series TXZ+TM 4A Series TX04 Series TX03 Series
Group M4K Group M470 Group M370 Group
搜尋產品線

解決方案

這些文件說明推薦的半導體產品的要點及其特徵，方便產品選擇。

解決方案
SolutionProposal_Robot Cleaner / English (PDF:1.4MB)
SolutionProposal_Robot Cleaner / Japanese (PDF:1.8MB)

參考設計

Sensorless Sinusoidal Brushless Motor Drive Circuit Using TC78B011FTG
Sensorless Sinusoidal Brushless Motor Drive Circuit Using TC78B011FTG
This reference design provides design guide, data and other contents of a brushless motor drive circuit using sensorless sinusoidal PWM predriver IC for 3-phase brushless motor. This design allows easy configuration of the motor pre-driver using a GUI.
詳細資料
PCB photo example of Power multiplexer circuit
Power multiplexer circuit
In this reference design, a Power multiplexer circuit with 2 input and 1 output is implemented on a small PCB. MOSFET gate driver ICs, eFuse ICs, zener diodes and small package MOSFETs selected from Toshiba's diverse lineup are used create ideal diode like characteristics with BBM and MBB switching.
Power multiplexer circuit / 2 input and 1 output
詳細資料
Photo of non-isolated buck DC-DC converter.
Non-Isolated Buck DC-DC Converter
This reference design provides design guide, data and other contents of multiple non-isolated buck DC-DC converter power supplies. Multiple variations of the power supply are optimized for various outputs, loads and board mounting areas.
Reference Design Center
詳細資料
Power supply circuit example of LDO regulator TCR3UG series application for power supply of IoT devices.
LDO Regulator TCR3UG Series Application for Power Supply of IoT Devices
This reference design provides document with low consumption current, PSRR, and dynamic response.The LDO has small package, low consumed power, and fast load transient response.
LDO Regulator / TCR3UG
詳細資料
Power supply circuit example of LDO regulator TCR15AG (fixed output voltage type) application & circuit.
LDO Regulator TCR15AG (fixed output voltage type) Application & Circuit
This reference design provides document with PSRR, dynamic response and controlling output voltage.The LDO has very small package and fixed output voltage for consumer application.
LDORegulator / TCR15AG
詳細資料
Power supply circuit example of LDO regulator TCR15AGADJ application & circuit.
LDO Regulator TCR15AGADJ Application & Circuit
This reference design provides document with PSRR, dynamic response and controlling output voltage. The LDO has very small package and adjustable output for consumer application.
LDO Regulator / Design / Support / Reference Design Center
詳細資料

文件

其他文件請參閱以下頁面。

視頻

開發/設計支援

交換式電源供應器工具庫

您可以按照實際需求選擇並下載電源設備的各種基本topologies，以便在模擬環境中驗證MOSFET的性能。

交換式電源供應器工具庫
馬達控制和驅動電路的線上模擬資料庫

您可以根據實際要求選擇和下載馬達驅動IC的各種基本拓撲結構，例如3相逆變器電路，以驗證MOSFET和其他元件在您的模擬環境中的性能。

馬達控制和驅動電路的線上模擬資料庫
線上電路模擬器

允許使用者在網站上直接進行電路模擬，無須建構評估環境，即可預先驗證裝置。只要是註冊會員就可以免費使用。

線上電路模擬器
EDA/CAD 模型庫

我們提供開發產品板時所使用的模擬資料、封裝的 3D 模型以及焊盤圖案模型（2D 模型）。

EDA/CAD 模型庫
MCU Motor Studio

MCU Motor Studio 具有專用於東芝 TXZ+TM系列高階微控制器的 PC 工具和馬達控制韌體。

MCU Motor Studio
東芝電子報訂閱
東芝電子報訂閱
請填寫訂閱表格 ，即可收到有關東芝產品的最新消息! 歡迎訂閱!
了解更多

聯繫我們

技術方面問題

聯絡我們

聯絡我們

常見問題

常見問答
  • The BluetoothⓇ word mark is a registered trademark owned by Bluetooth SIG, Inc.
  • Wi-Fi is a registered trademark of Wi-Fi Alliance.
  • Arm and Cortex are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere.
  • TXZ+TM is trademark of Toshiba Electronic Devices & Storage Corporation.
  • Other company names, product names, and service names may be trademarks of their respective companies.
開啟新視窗
