Package Information

Toshiba Package Name	VQFN24D

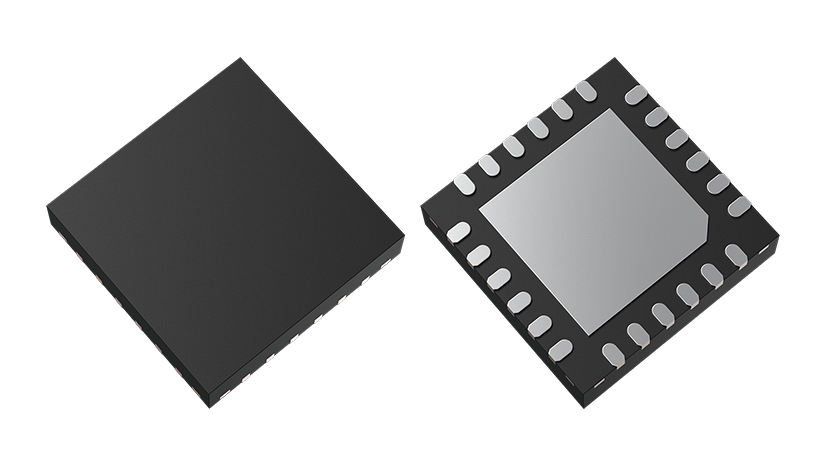

Package Image
Pins	24
Mounting	Surface Mount
Width×Length×Height (mm)	4.0×4.0×0.9
Package Dimensions	View
Land pattern dimensions	View
SamacSys CAD model (Symbol, Footprint and 3D model)	Download from SamacSys 1 2

Please refer to the link destination to check the detailed size.

*1	SamacSys is a wholly owned subsidiary of Supplyframe, Inc. CAD models (Symbol/Footprint /3D model) are provided by Supplyframe, Inc. The footprints are generated based on the specifications of SamacSys.
*2	Please note that the footprint dimensions may differ from the reference Land Pattern dimensions provided on our website.

Absolute Maximum Ratings

Characteristics	Symbol	Rating	Unit
Input Voltage	V_IN	80	V
Power Dissipation	P_D	2.2	W
Junction Temperature	T_j	150	℃

Electrical Characteristics

Characteristics	Symbol	Condition	Value	Unit
Operating Input Voltage (Max)	V_IN	-	75	V
Operating Input Voltage (Min)	V_IN	-	4.7	V
Operating Output Current (Max)	I_OUT	-	6	A
ON-resistance (Typ.)	R_ON	-	44.5	mΩ
Operating Temperature	T_opr	-	-40 to 125	℃

Notes

The Part Number column shows representative part numbers only, which may not be available for sale in the precise form shown. Each Part Number constitutes a product family which may contain multiple associated product configurations.
(#) Under the RoHS Compatible Product(s) column, "Available" means at least one RoHS-Compatible product is available for sale in the corresponding product family. "None" means no RoHS Compatible product is available in that product family. For Toshiba's definitions of concepts related to the RoHS Directive and RoHS Compatibility, please click here.
The RoHS compatibility information provided herein is to the best of Toshiba's knowledge and belief accurate as of the date Toshiba entered the information into this database. Information is subject to change at any time without notice.
Please contact your Toshiba sales representative for detailed environmental information about each specific part number or product, such as RoHS compatibility or material content. Please use Toshiba products only in compliance with all applicable laws and regulations concerning the inclusion or use of controlled substances, including without limitation the RoHS Directive.TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
Reliability data are provided for your reference only, please contact your Toshiba sales representative for detailed reliability information about each part number.
For product delivery, additional characters will be added to the part numbers shown on this website. For details, please ask your local distributor, or send an inquiry accessed from "Contact Us" on this website.

Application	Server / General purpose power supply
Feature	High output current / Wide range input voltage
Over Current Protection	Adjustable
Over Voltage Protection Type	Adjustable Over Voltage Protection
Inrush Current Reduction Type	Adjustable Slew Rate Control
Recovery Operation Type	Selection type
Reverse Current Blocking	Y(External MOSFET)
Thermal Shutdown	Y
RoHS Compatible Product(s) (#)	Available
