1.6 kW T-Type 3-Level PFC Power Supply

This reference design provides design guide, data and other contents of 1.6kW AC-DC converter power supply using T-Type 3-Level power factor correction (PFC) circuit.

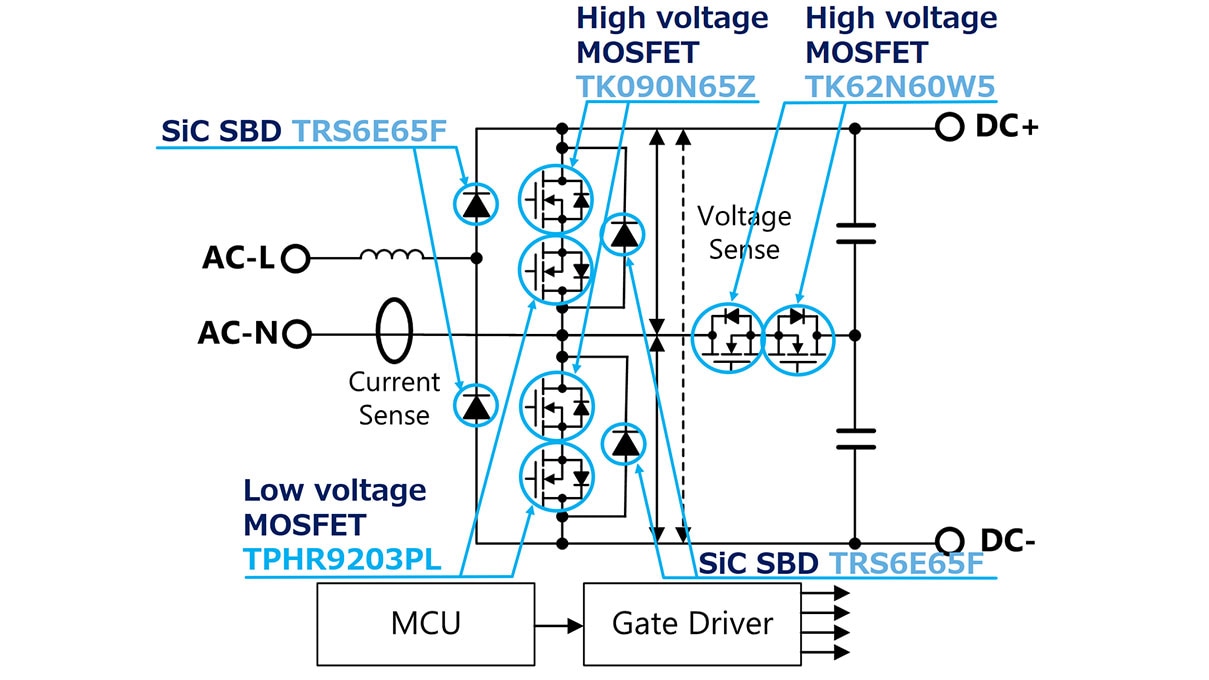

1.6 kW T-Type 3-Level PFC Power Supply
TRS6E65F TRS6E65F TK090N65Z TK090N65Z TPHR9203PL TPHR9203PL TRS6E65F TRS6E65F TK62N60W5 TK62N60W5

Click on components for more details

Features

  • Total efficiency : 97.3 % (Vin = 230 V, 100 % load)
  • Outline size : 335 mm × 165 mm
  • Uses optimum power MOSFETs and diodes

Description

Input voltage AC 90 to 264 V
Output voltage DC 380 V
Output power 1.6 kW (@ AC 180 to 264 V), 800 W (@ AC 90 to 115 V)
Circuit topology T-Type 3-Level PFC Circuit

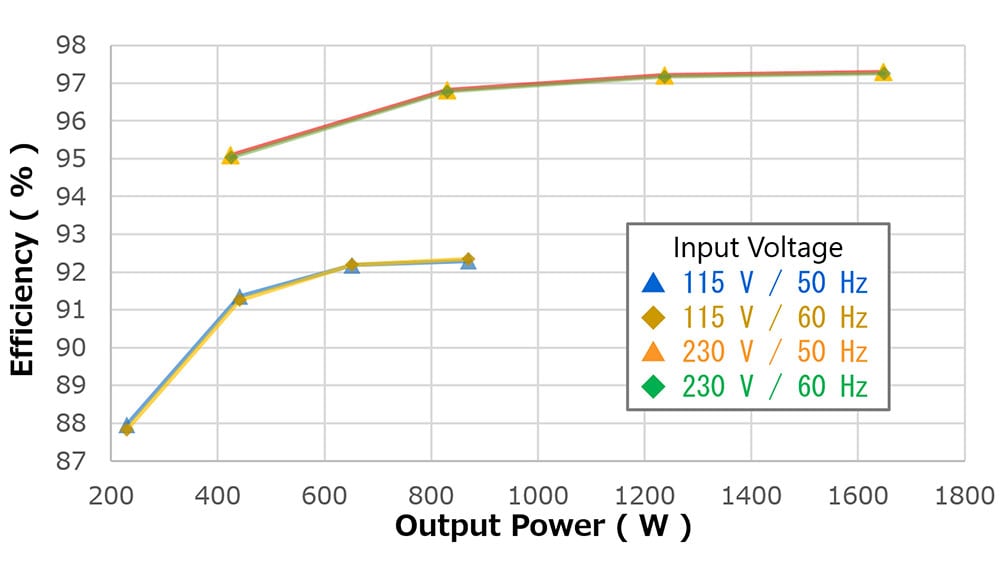

Efficiency Curve of 1.6 kW T-Type 3-Level PFC Power Supply
Efficiency Curve

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

Used Toshiba Items

Part Number Device Category Portion Usage Description
Power MOSFET (N-ch 500V<VDSS≤700V) Main switch·2 N-ch MOSFET, 650 V, 0.09 Ω@10V, TO-247, DTMOSⅥ
Power MOSFET (N-ch 500V<VDSS≤700V) Midpoint switch·2 N-ch MOSFET, 600 V, 0.045 Ω@10V, TO-247, DTMOSⅣ
Power MOSFET (N-ch single VDSS≤30V) Main switch reverse current cutoff·2 N-ch MOSFET, 30 V, 0.00092 Ω@10V, SOP Advance, U-MOSⅨ-H
SiC Schottky barrier diode Freewheeling·4 650 V/6 A SiC Schottky Barrier Diode, TO-220-2L
