1.6kW T-Type 3-Level PFC電源

1.6kW AC-DC轉換器電源，具有T-Type 3-Level功率因數校正（PFC）電路。對各種電路的設計要點、設計數據、使用方法等進行說明。

1.6 kW T-Type 3-Level PFC Power Supply
TRS6E65F TRS6E65F TK090N65Z TK090N65Z TPHR9203PL TPHR9203PL TRS6E65F TRS6E65F TK62N60W5 TK62N60W5

Click on components for more details

特性

  • 轉換效率： 97.3% （ Vin ＝ 230V ， 100%負載條件下）
  • 外觀尺寸： 335mm×165mm
  • 使用最合適的Power MOSFET和二極體

說明

輸入電壓 AC 90 至 264 V
輸出電壓 DC 380 V
輸出功率 1.6 kW (@ AC 180 至 264 V), 800 W (@ AC 90 至 115 V)
電路架構 T-Type 3-Level PFC 電路

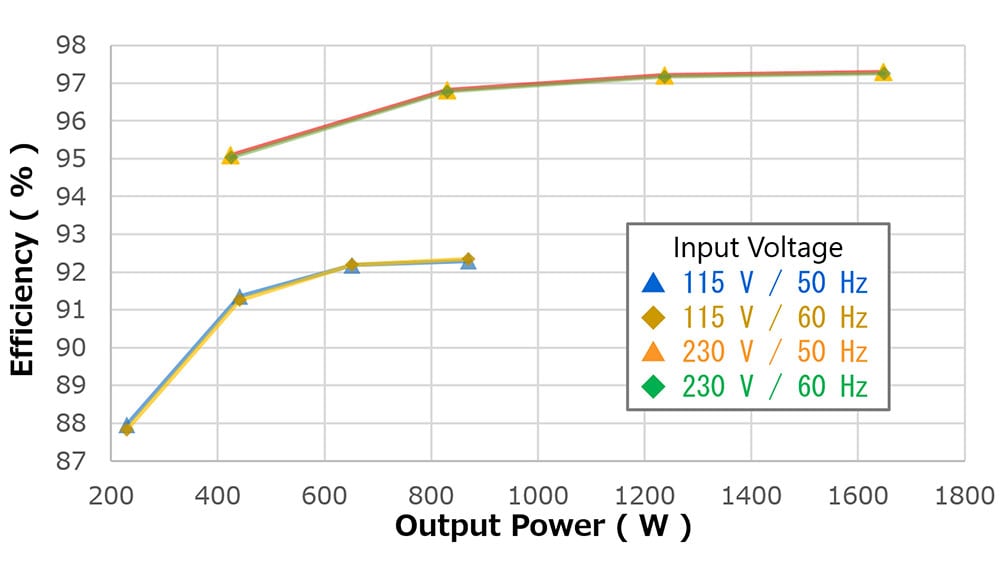

效率曲線
效率曲線

Design Documents

Materials for designers, such as an overview of circuit operation and explanations of design considerations. Please click on each tab to view the contents.

Design Data

Provides circuit data that can be loaded into EDA tools, PCB layout data, and data used in PCB manufacturing. Available in formats from multiple tool vendors. You can freely edit it with your preferred tool.

使用東芝項目/產品

器件型號 器件目錄 使用部位・數量 說明
Power MOSFET (N-ch 500V<VDSS≤700V) Main switch·2 N-ch MOSFET, 650 V, 0.09 Ω@10V, TO-247, DTMOSⅥ
Power MOSFET (N-ch 500V<VDSS≤700V) Midpoint switch·2 N-ch MOSFET, 600 V, 0.045 Ω@10V, TO-247, DTMOSⅣ
Power MOSFET (N-ch single VDSS≤30V) Main switch reverse current cutoff·2 N-ch MOSFET, 30 V, 0.00092 Ω@10V, SOP Advance, U-MOSⅨ-H
SiC Schottky barrier diode Freewheeling·4 650 V/6 A SiC Schottky Barrier Diode, TO-220-2L

Related Documents

We provide materials useful for designing and considering similar circuits, such as application notes for installed products. Please click on each tab to view the contents.

Applications

Uninterruptible power supply
Such as low power consumption and miniaturization are important in designing uninterruptible power supply (UPS). Toshiba provides information on a wide range of semiconductor products suitable for power sullpy units, inverter/converter units, control units, signal transmission units, etc., along with circuit configuration examples.
詳細資料
Server
Such as low power consumption and miniaturization are important in designing server. Toshiba provides information on a wide range of semiconductor products suitable for power supply units, motor driving unit, over temperature monitoring unit, etc., along with circuit configuration examples.
詳細資料
Inverter/Servo
Such as low power consumption, miniaturization and robust operation are important in designing inverter/servo. Toshiba provides information on a wide range of semiconductor products suitable for power supply unit, motor driving circuit units, signal transmission units, etc., along with circuit configuration examples.
詳細資料
